Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications
Includes center section only (no side plates included)
Includes center section only (no side plates included)
Warranty: Limited Lifetime
Main Body Shape: Square

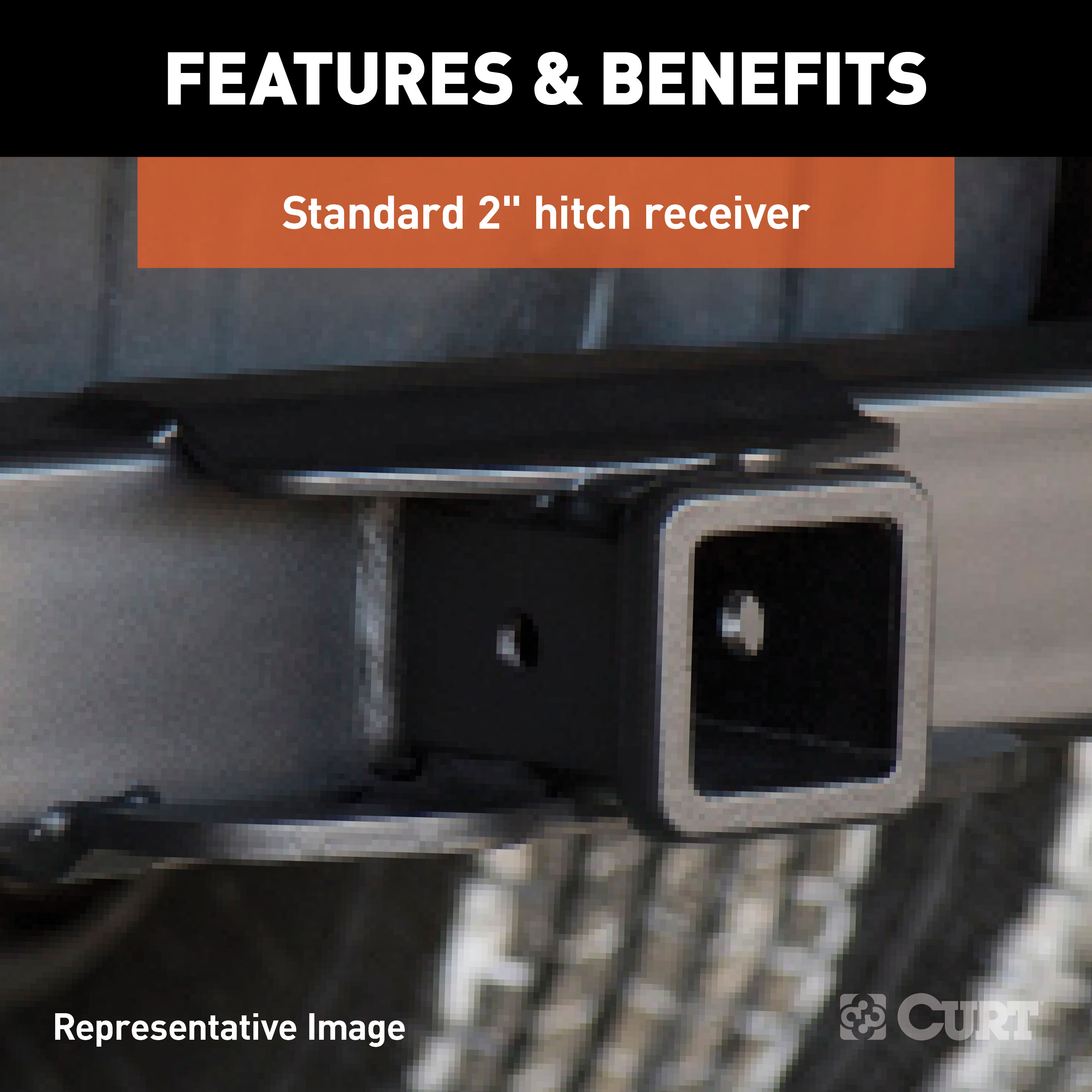

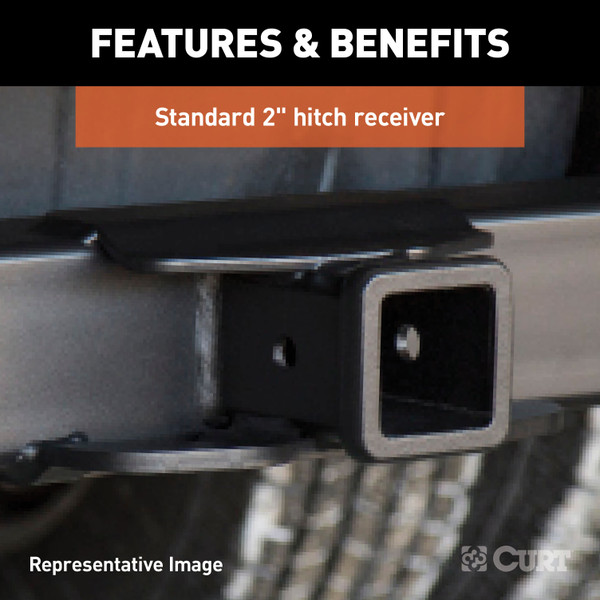

Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 16,000 LB
Weight Carrying Capacity (Pounds): 16,000 LB
Installation Time Exact (Minutes): 0

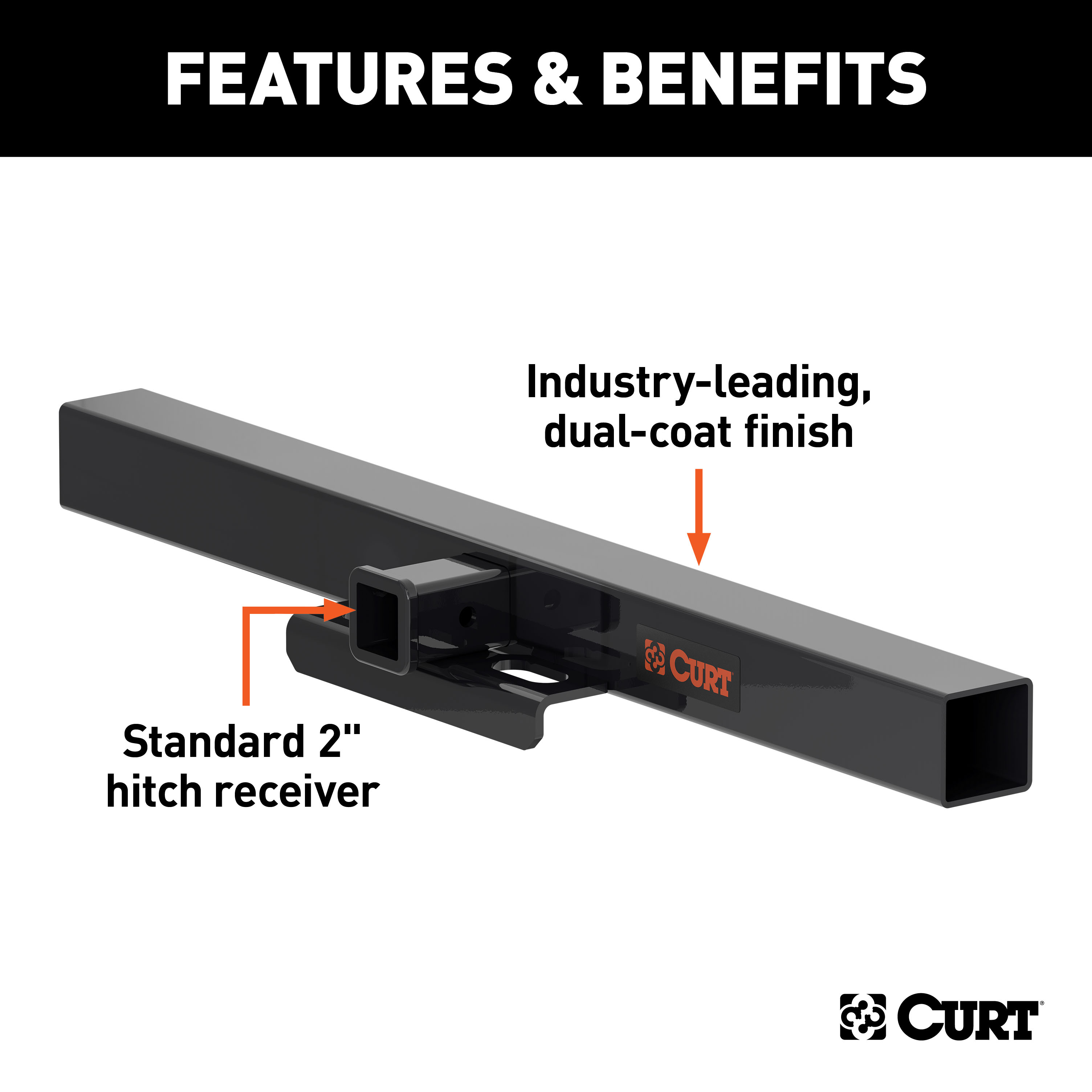

CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on hitch center section features a 2-inch receiver and measures 44 inches wide. It is rated for up to 16,000 pounds gross trailer weight. NOTE: This package includes the center section only. Side plates are not included.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The 15920 is rated for a gross trailer weight (GTW) of 16,000 lbs. and a tongue weight (TW) of 1,600 lbs. This rating applies when side plates are mounted at a width of 42" or narrower and a drop of 9" or less. Never exceed your vehicle manufacturer's recommended towing capacity.
The 15920 hitch center section is 44" long. The center section can be trimmed as needed during installation to fit between the side plates.
No. Side plates are not included with the 15920 hitch center section. You must source and supply your own side plates, which will be welded to both the vehicle frame and the center section during installation.
All metal surfaces must be cleaned down to bare metal at each weld location. Remove all powder coat from the vehicle frame, side plates, and hitch center section where welding will occur. If metal surfaces are not completely bare, the weld will not have the required strength and may void the warranty.
Yes. The 15920 requires welding to AWS welding standards. The side plates must be welded to the vehicle frame, and the hitch center section must be welded to the side plates. This installation is rated as Difficult and it is recommended to have two to three people during the install.
It is recommended to have two to three people during the installation. The installation requires welding and positioning of the hitch center section and side plates, which is easier and safer with multiple people.
1. Clean the vehicle frame and side plates down to bare metal at all weld locations. 2. Slide the side plates onto the hitch center section and raise into position. 3. Secure or clamp the side plates to the frame, centering the hitch center section between them. 4. Weld the side plates to the frame and center section to AWS welding standards. 5. Trim any excess center section beyond the side plates as needed.
Yes. After welding, trim off any excess center section beyond the side plates as needed. The center section is 44" long and can be cut to fit your specific side plate configuration.
Wear safety glasses at all times while installing this product. Read all instructions thoroughly before beginning. Proper tools will improve the quality of installation and reduce installation time. Never exceed your vehicle manufacturer's recommended towing capacity.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. To help prevent damage to the product or vehicle, refer to the specified torque specifications when securing hardware during the installation process.
No, side plates are not included and must be sourced separately. They are welded to both the vehicle frame and the 44" center section during installation.
Yes, welding to AWS standards is required. The installation is rated as Difficult and two to three people are recommended.
The 15920 is rated for 16,000 lbs. gross trailer weight and 1,600 lbs. tongue weight when side plates are 42" or narrower with a drop of 9" or less. Never exceed your vehicle's manufacturer towing capacity.
All metal surfaces must be cleaned to bare metal at weld locations. Remove all powder coat from the frame, side plates, and center section, or the weld will not have required strength and may void warranty.
Wear safety glasses at all times during installation. Read all instructions before beginning. Proper tools are essential for quality installation.
| Part # | GTW | Receiver Tube Size | Main Body Width | Main Body Tube | Side Plate Drop | Drop | Max Width | Min Width | Finish |
|---|---|---|---|---|---|---|---|---|---|
| 15901 | 15,000 lbs. | 2" | 45" | 4" x 4" | 9-1/2" | 3-1/8" | 43" | 18" | Carbide black |
| 15902 | 15,000 lbs. | 2" | 45" | 4" x 4" | 18" | 11-1/2" | 43" | 18" | Carbide black |
| 15903 | 15,000 lbs. | 2" | 62" | 4" x 4" | 18" | 11-1/2" | 60" | 18" | Carbide black |
| 15920 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15927 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15928 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15921 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15922 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15923 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15924 | 20,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15925 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 60" | 18" | Gloss black |
| 15926 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 3-1/4" | 60" | 18" | Gloss black |
