Receiver
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications

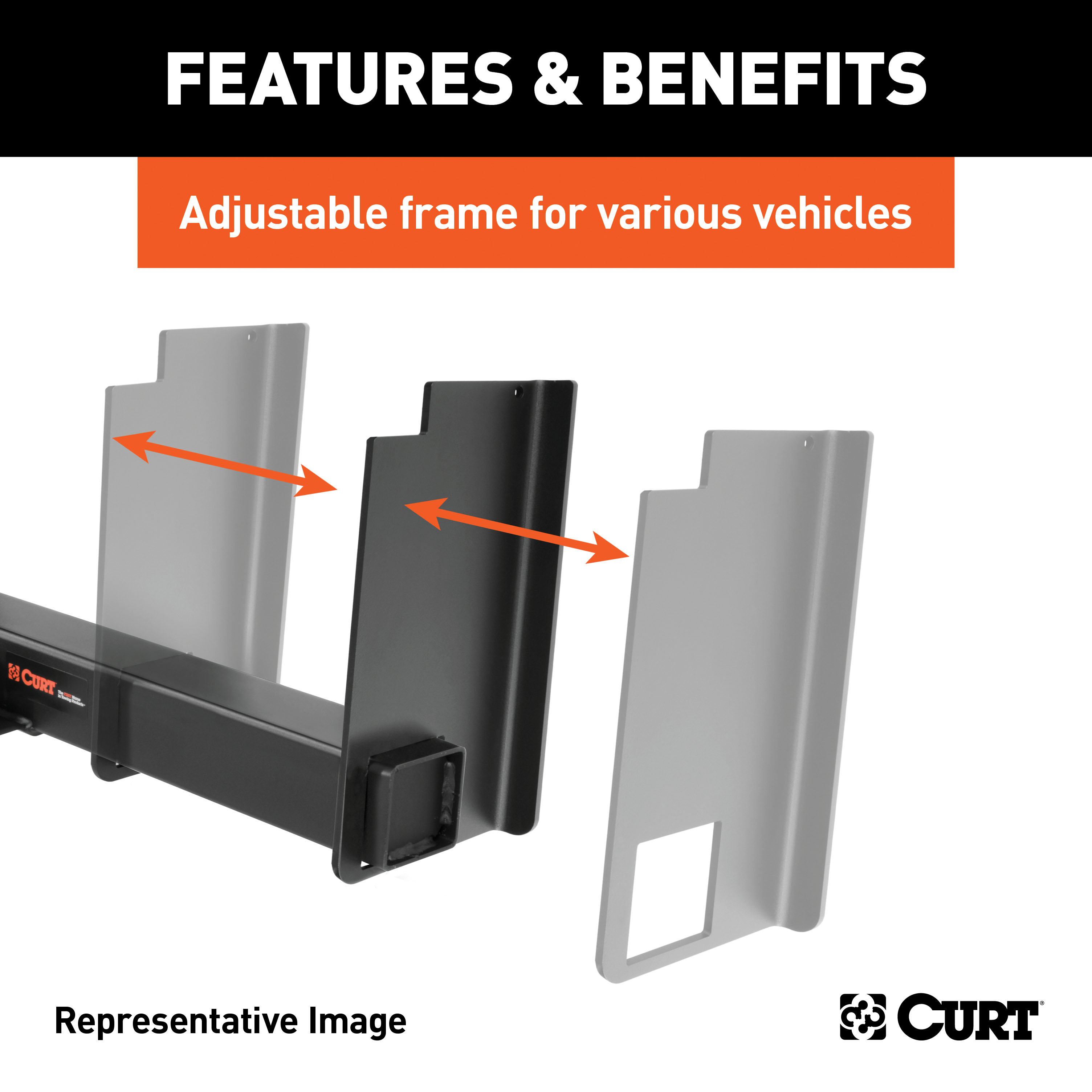

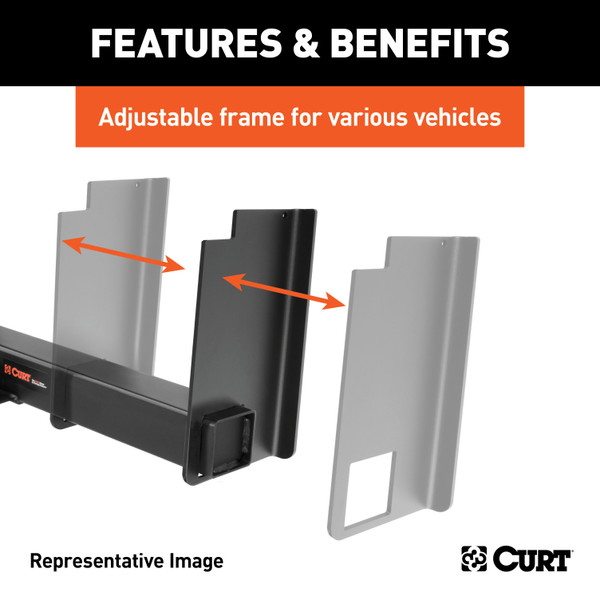

Adjustable side plates come detached from the main body of the hitch and must be welded on
Warranty: Limited Lifetime
Main Body Shape: Square
Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 1,600 LB / 16,000 LB
Weight Carrying Capacity (Pounds): 16,000 LB
WC Tongue Weight (Pounds): 1,600 LB
Installation Time Exact (Minutes): 0

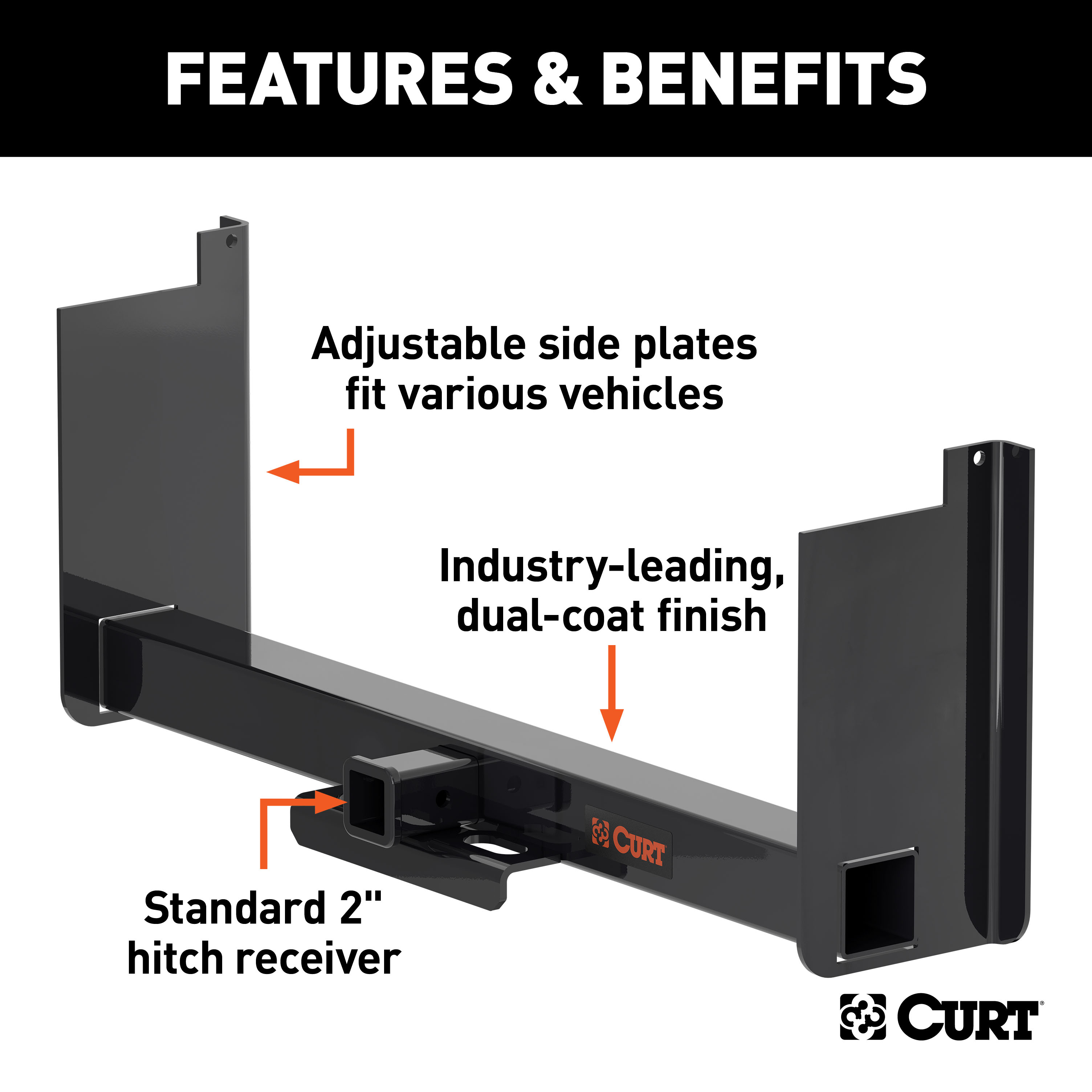

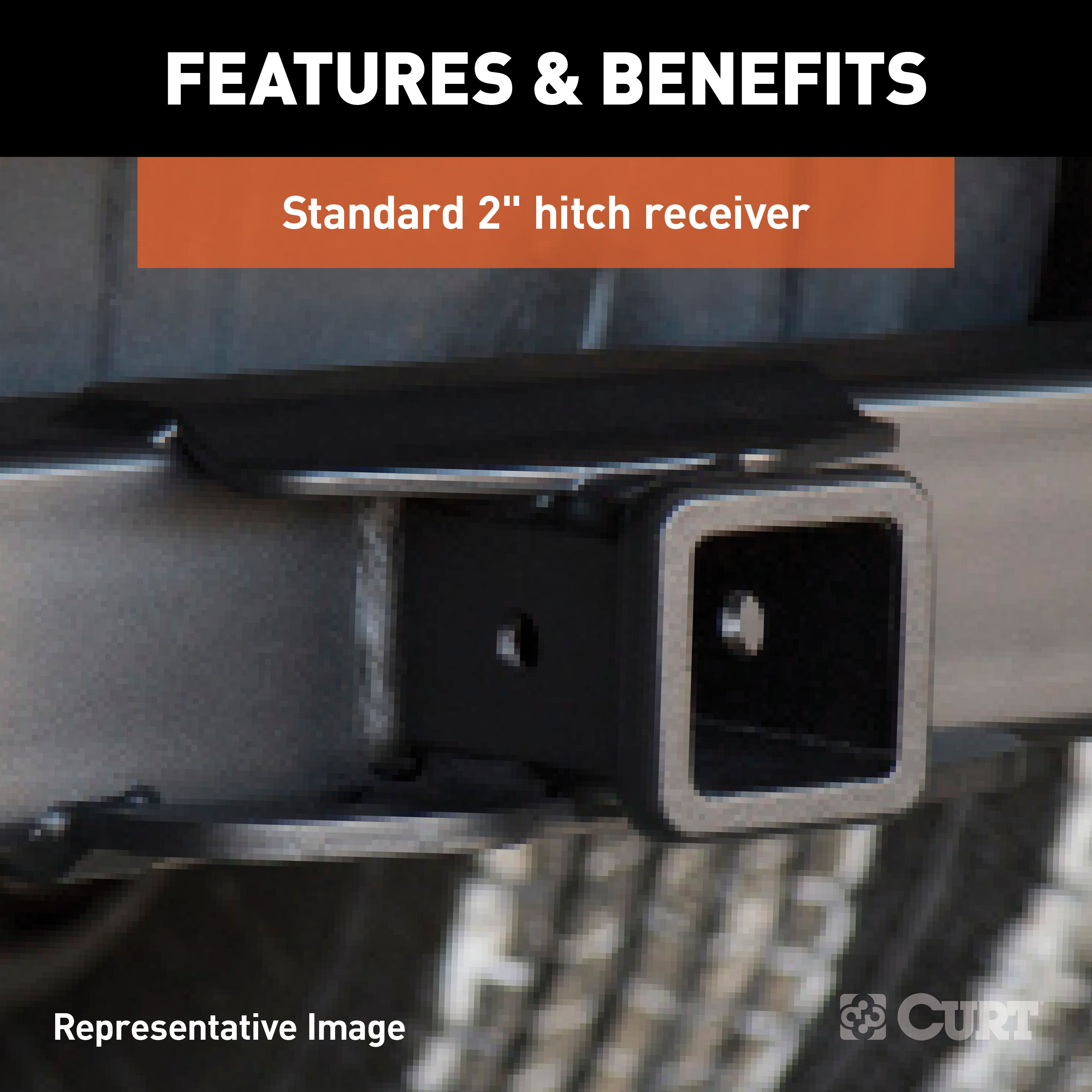

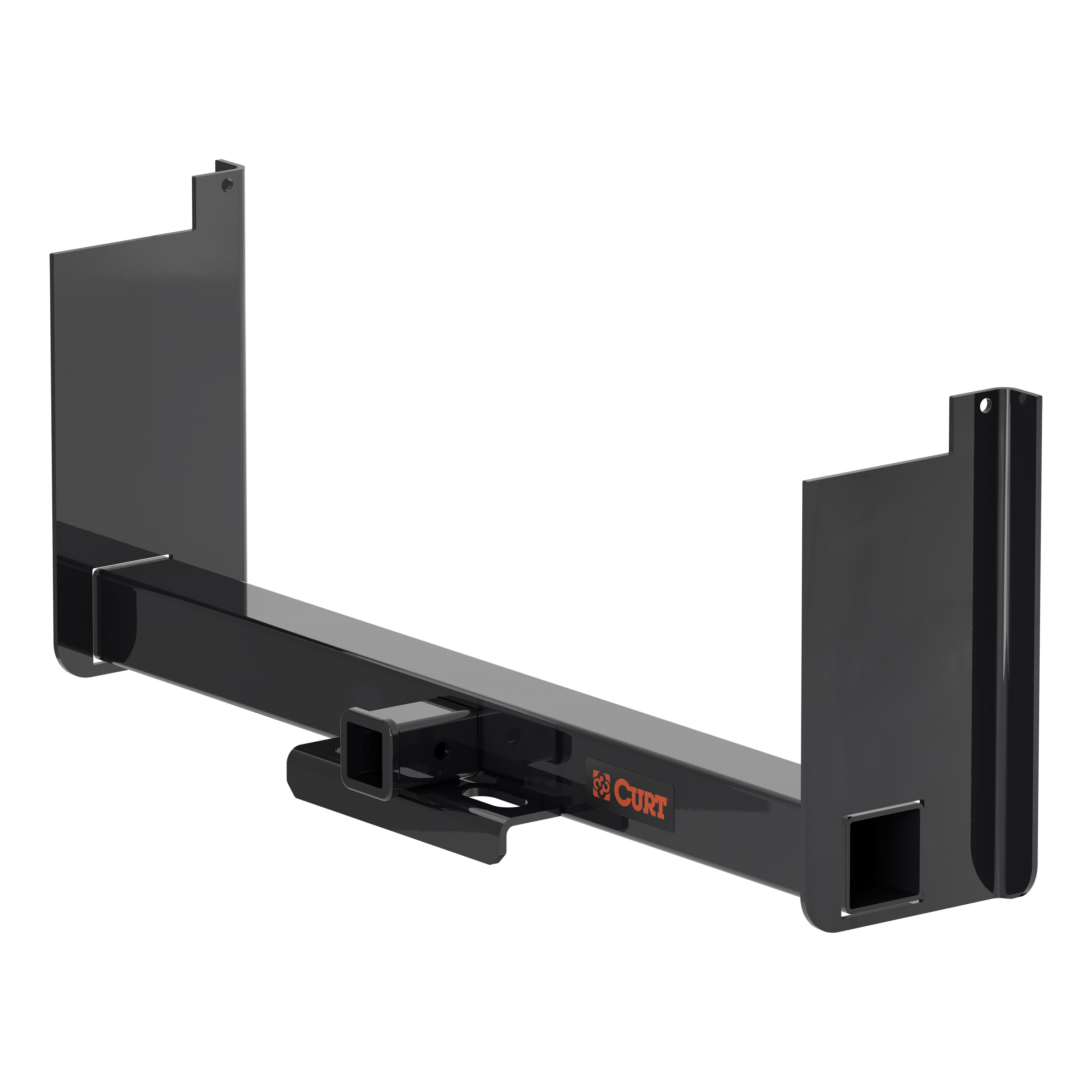

CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on receiver hitch features a 2-inch receiver with an 18-inch drop. It fits frames up to 44 inches wide. The side plates ship unattached from the center section, allowing for a flexible, adjustable installation and a custom fit. No installation hardware required! This welded universal hitch is also rated as a class 5 hitch, being fully tested to SAE J684 specifications. To protect this weld on receiver hitch from corrosion, it comes shielded with a co-cured finish of liquid A-coat and durable black powder coat.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 15928 is rated for a gross trailer weight (GTW) of 16,000 lbs. and a tongue weight (TW) of 1,600 lbs. This rating applies when the side plates are mounted at a width of 42" or narrower and a drop of 9" or less.
The hitch center section is 44" maximum width with an 18" minimum width.
Both the driver-side and passenger-side plates provide an 18" drop.
The kit includes one hitch center section (44"), one driver-side side plate (18" drop), and one passenger-side side plate (18" drop).
Yes, welding is required. The side plates must be welded to both the vehicle frame and the hitch center section to AWS welding standards. The manual recommends having two or three people present during installation.
Two or three people are recommended during the installation.
Yes, metal surface preparation is critical. All surfaces where welding will occur must be cleaned down to bare metal. This includes the vehicle frame at each weld location, the side plates where they mount to the frame, and all powder coat must be removed from the center section where the side plates will be welded. If metal surfaces are not completely bare, the weld will not be the required strength and may void the warranty.
Yes, you may need to trim off any excess center section beyond the side plates as needed during the welding process.
Safety glasses should be worn at all times while installing this product. Additionally, never exceed the vehicle manufacturer's recommended towing capacity when using the hitch.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
1. Clean all metal surfaces down to bare metal at weld locations on the vehicle frame and on the side plates and center section. 2. Slide the side plates onto the hitch center section and raise into position. Secure or clamp the side plates into position on the frame, centering the hitch center section between the side plates. 3. Weld the side plates to the vehicle frame and hitch center section to AWS welding standards. Trim any excess center section beyond the side plates as needed.
16,000 lbs. GTW and 1,600 lbs. tongue weight when side plates are mounted at 42" width or narrower and 9" drop or less.
Yes, welding to AWS standards is required. Two or three people are recommended. All metal surfaces must be cleaned to bare metal before welding or the weld strength will be compromised and warranty may be voided.
Wear safety glasses at all times during installation. Never exceed the vehicle manufacturer's recommended towing capacity. All metal surfaces must be bare metal before welding.
Perform periodic inspections to ensure all mounting hardware remains tight and structural components are secure.
On Sale Today
Original price was $356.95. Current price is $240.99.You save $115.96 (32%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Sun, Sep 27 - Tue, Sep 29
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Part # | GTW | Receiver Tube Size | Main Body Width | Main Body Tube | Side Plate Drop | Drop | Max Width | Min Width | Finish |
|---|---|---|---|---|---|---|---|---|---|
| 15901 | 15,000 lbs. | 2" | 45" | 4" x 4" | 9-1/2" | 3-1/8" | 43" | 18" | Carbide black |
| 15902 | 15,000 lbs. | 2" | 45" | 4" x 4" | 18" | 11-1/2" | 43" | 18" | Carbide black |
| 15903 | 15,000 lbs. | 2" | 62" | 4" x 4" | 18" | 11-1/2" | 60" | 18" | Carbide black |
| 15920 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15927 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15928 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15921 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15922 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15923 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15924 | 20,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15925 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 60" | 18" | Gloss black |
| 15926 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 3-1/4" | 60" | 18" | Gloss black |
