Receiver
Side plates must be welded 42" apart or less to achieve 20K rating
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications
Warranty: Limited Lifetime
Main Body Shape: Square
Receiver Tube Size (Inches): 2-1/2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 20,000 LB
Weight Carrying Capacity (Pounds): 20,000 LB
Installation Time Exact (Minutes): 0

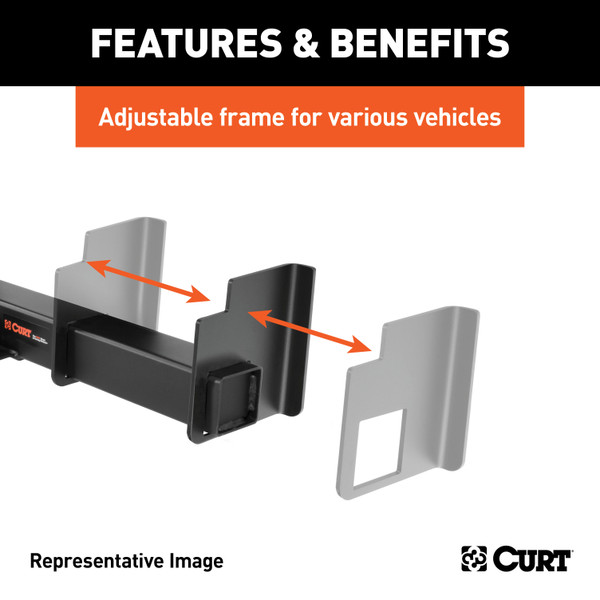

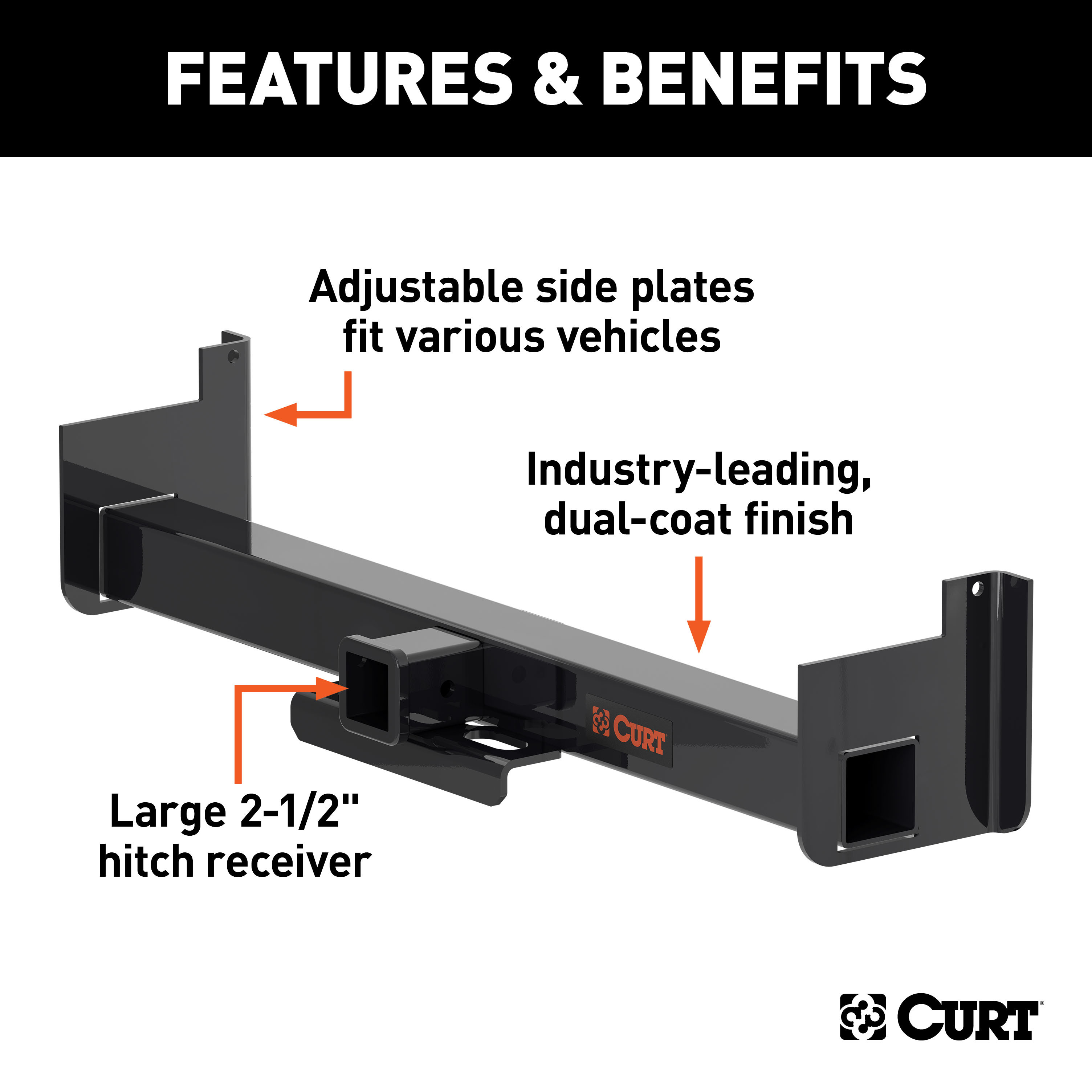

CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on receiver hitch features a 2-1/2-inch receiver with a 9-inch drop. It fits frames up to 44 inches wide. The side plates ship unattached from the center section, allowing for a flexible, adjustable installation and a custom fit. No installation hardware required! This welded universal hitch is also rated as a class 5 hitch, being fully tested to SAE J684 specifications for a gross trailer weight capacity of up to 20,000 pounds (NOTE: To achieve 20K rating, side plates must be welded 42 inches wide or less). To protect this weld on receiver hitch from corrosion, it comes shielded with a co-cured finish of liquid A-coat and durable black powder coat.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 15923 is rated for a gross trailer weight (GTW) of 20,000 lbs. and a tongue weight (TW) of 2,000 lbs. This rating applies when the side plates are mounted at a width of 42" or narrower and a drop of 9" or less.
The kit includes one 44" hitch center section, one driver-side side plate with 9" drop, and one passenger-side side plate with 9" drop.
The hitch center section is 44" maximum width with an 18" minimum width. The side plates have a 9" drop. The hitch is rated for 20,000 lbs. GTW only when mounted at a width of 42" or narrower and a drop of 9" or less.
Yes, welding is required. The side plates must be welded to both the vehicle frame and the hitch center section to AWS welding standards. This is a permanent installation that requires professional welding expertise.
Two or three people are recommended during the installation. This accounts for the difficulty level and the need to position and secure components while preparing for welding.
The installation difficulty is rated as Difficult. This rating is based on the time and effort involved and may vary depending on the installer's level of expertise, the condition of the vehicle, and having proper tools and equipment.
All metal surfaces must be cleaned down to bare metal at each weld location. Clean the vehicle frame surface and remove any powder coat from the side plates where they will be mounted to the frame and hitch center section. Clean all powder coat from the center section where the side plates will be welded. If metal surfaces are not completely bare, the weld will not be the required strength and may void the warranty.
1. Clean the vehicle frame and all hitch components down to bare metal at weld locations. 2. Slide the side plates onto the hitch center section and raise into position. 3. Secure or clamp the side plates into position on the frame, centering the hitch center section between the side plates. 4. Weld the side plates to the vehicle frame and hitch center section to AWS welding standards. 5. Trim off any excess center section beyond the side plates as needed.
The hitch center section must be centered between the side plates during installation. The side plates are secured or clamped into position on the frame first, then the center section is positioned centrally between them before welding.
The side plates must be welded to the vehicle frame and hitch center section to AWS (American Welding Society) welding standards.
Safety glasses should be worn at all times while installing this product.
Never exceed the vehicle manufacturer's recommended towing capacity. The hitch is rated for 20,000 lbs. GTW, but you must verify that your vehicle is rated to tow this weight before using the hitch.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. This helps prevent damage to the product or vehicle.
The CURT 15923 is a frame-mounted hitch with a 44" center section, 18" minimum width, and 9" drop. It is rated for 20,000 lbs. GTW when mounted at 42" width or narrower. Verify your vehicle's frame rail spacing and towing capacity before purchase. Contact CURT at 877.287.8634 for specific vehicle fitment confirmation.
Yes, welding to AWS standards is required. The side plates must be welded to the vehicle frame and hitch center section. Two or three people are recommended, and this is rated as a Difficult installation.
A welding machine and welding equipment are required to meet AWS welding standards. Clamping equipment to secure components during welding is necessary. Safety glasses are required. The manual does not specify other tools; contact CURT at 877.287.8634 for a complete tool list.
All metal surfaces must be cleaned to bare metal at weld locations. Remove all powder coat from the vehicle frame, side plates, and hitch center section where welding will occur. Incomplete cleaning will result in weak welds and may void the warranty.
The CURT 15923 is rated for 20,000 lbs. gross trailer weight (GTW) and 2,000 lbs. tongue weight (TW). Never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Perform periodic inspection to ensure all mounting hardware remains tight and structural components are secure. The manual does not specify an inspection interval; contact CURT at 877.287.8634 for recommended inspection frequency.
| Part # | GTW | Receiver Tube Size | Main Body Width | Main Body Tube | Side Plate Drop | Drop | Max Width | Min Width | Finish |
|---|---|---|---|---|---|---|---|---|---|
| 15901 | 15,000 lbs. | 2" | 45" | 4" x 4" | 9-1/2" | 3-1/8" | 43" | 18" | Carbide black |
| 15902 | 15,000 lbs. | 2" | 45" | 4" x 4" | 18" | 11-1/2" | 43" | 18" | Carbide black |
| 15903 | 15,000 lbs. | 2" | 62" | 4" x 4" | 18" | 11-1/2" | 60" | 18" | Carbide black |
| 15920 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15927 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15928 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15921 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15922 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15923 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15924 | 20,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15925 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 60" | 18" | Gloss black |
| 15926 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 3-1/4" | 60" | 18" | Gloss black |
