Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications

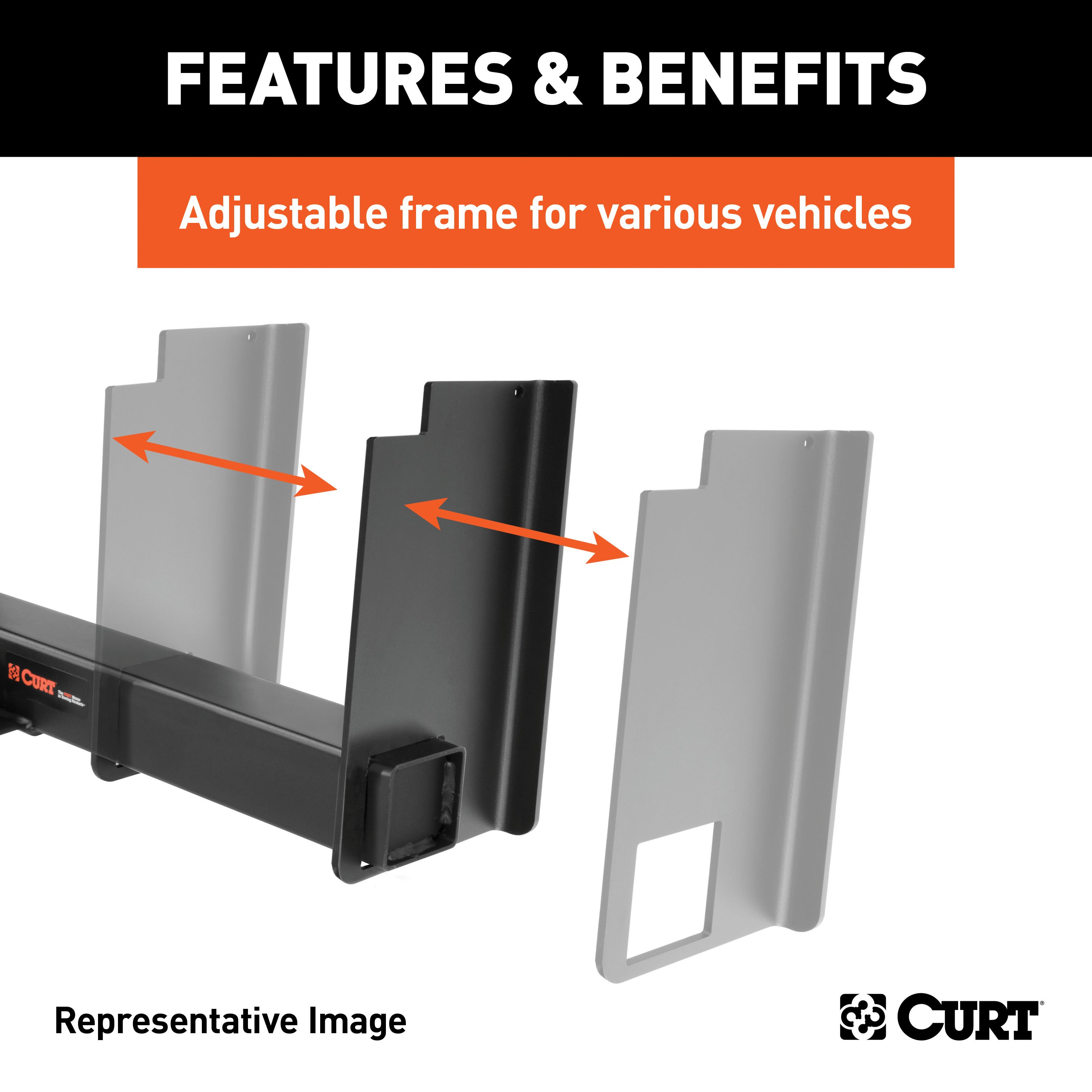

Adjustable side plates come detached from the main body of the hitch and must be welded on
Warranty: Limited Lifetime
Main Body Shape: Square
Receiver Tube Size (Inches): 2-1/2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 2,000 LB / 20,000 LB
Weight Carrying Capacity (Pounds): 20,000 LB
WC Tongue Weight (Pounds): 2,000 LB
Installation Time Exact (Minutes): 0

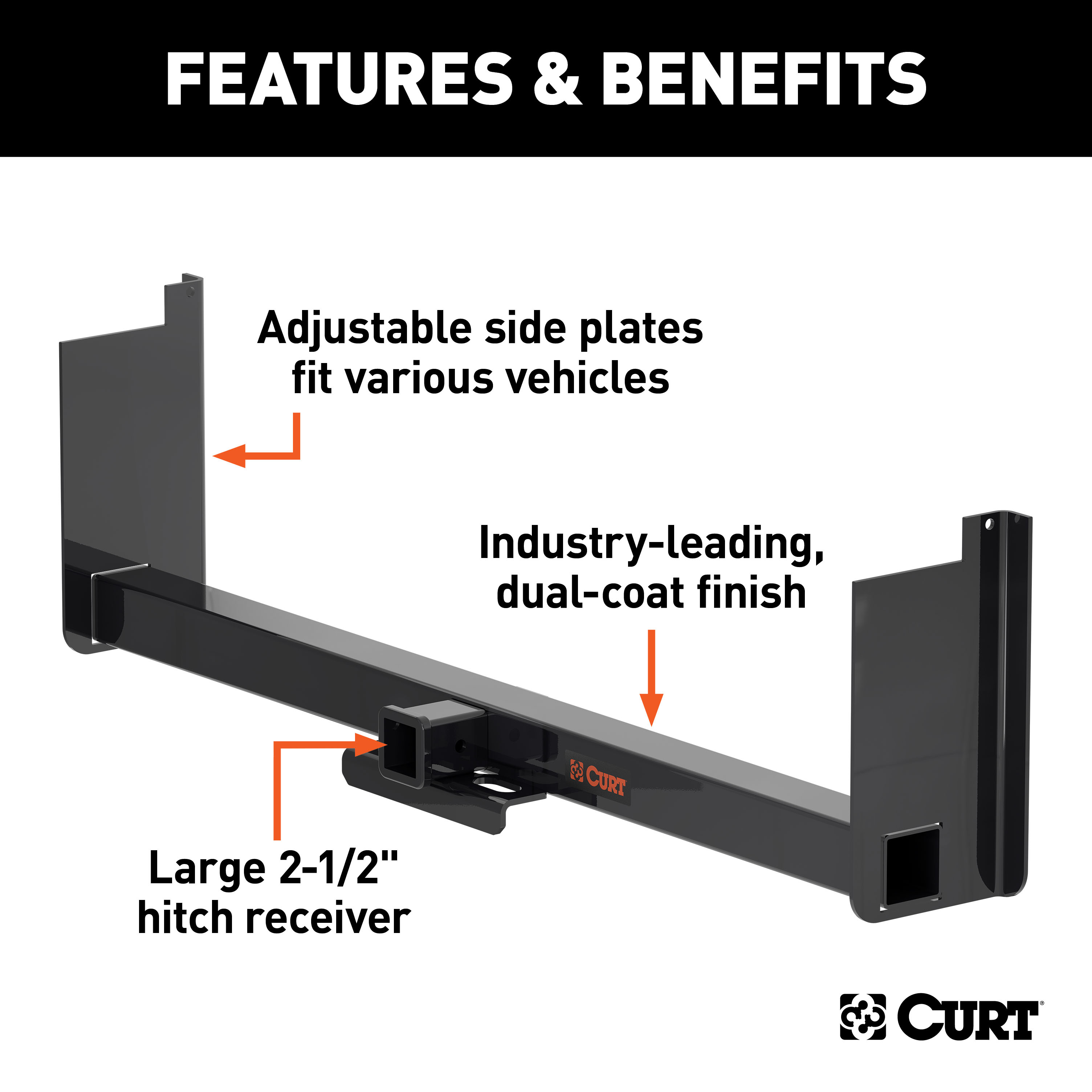

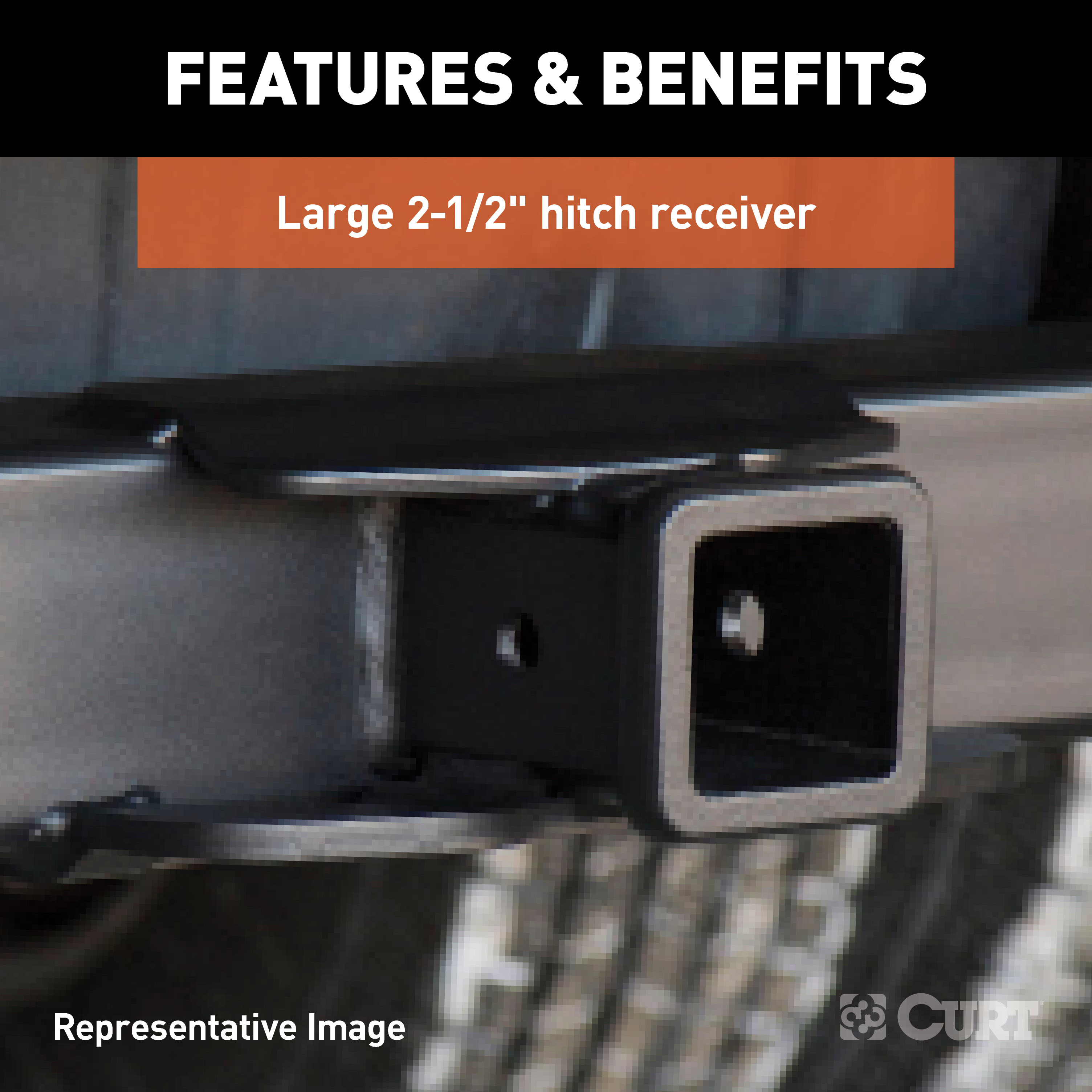

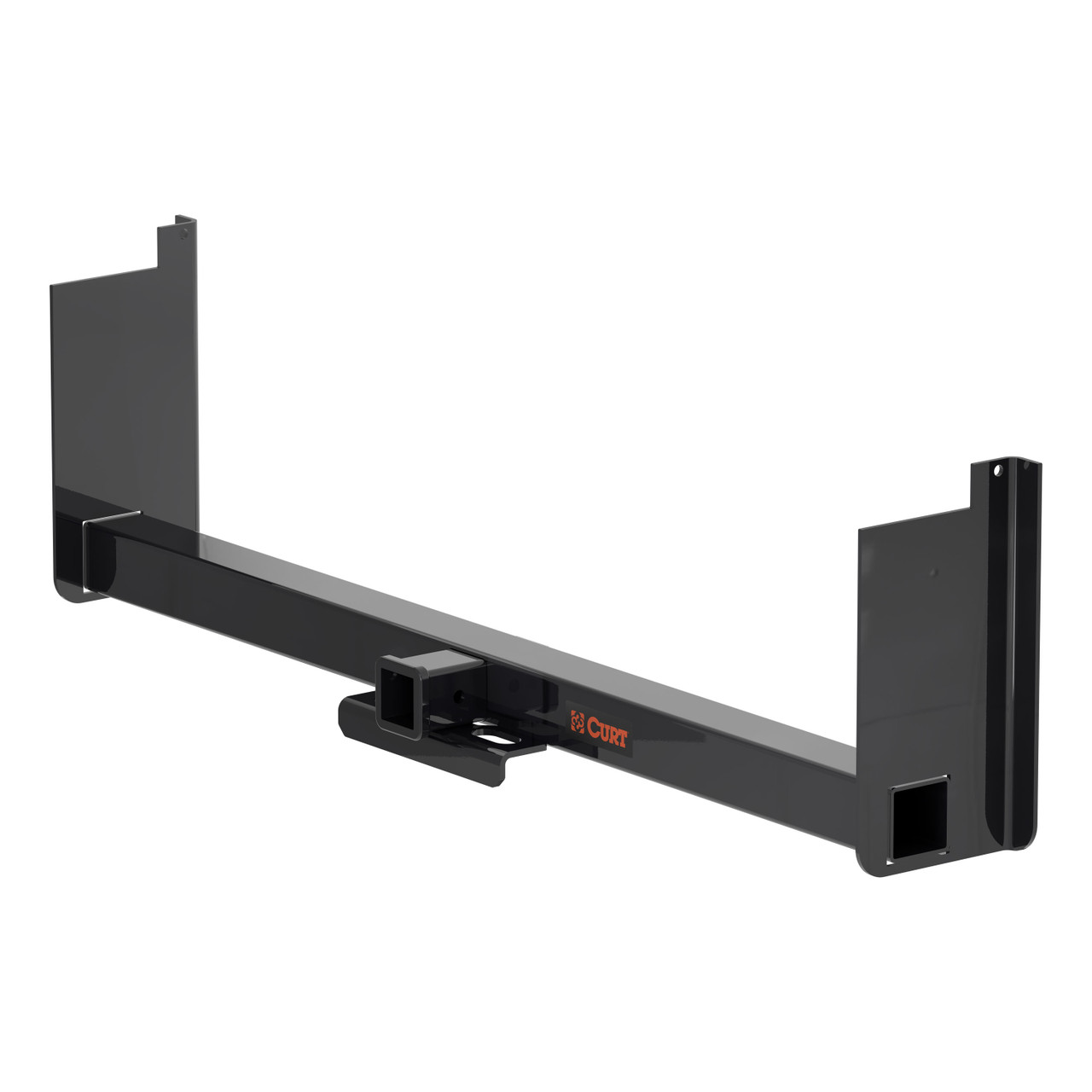

CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on receiver hitch features a 2-1/2-inch receiver with an 18-inch drop. It fits frames up to 62 inches wide. The side plates ship unattached from the center section, allowing for a flexible, adjustable installation and a custom fit. No installation hardware required! This welded universal hitch is also rated as a class 5 hitch, being fully tested to SAE J684 specifications. To protect this weld on receiver hitch from corrosion, it comes shielded with a co-cured finish of liquid A-coat and durable black powder coat.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 15926 is rated for a gross trailer weight (GTW) of 20,000 lbs. and a tongue weight (TW) of 2,000 lbs. This rating applies when the side plates are mounted at a width of 42" or narrower and a drop of 9" or less.
The CURT 15926 is a frame-mounted hitch designed for welding to the vehicle frame. The manual does not specify which vehicle makes, models, or years are compatible. Contact CURT product support at 877-287-8634 or check curtmfg.com to confirm fitment for your specific vehicle before purchasing.
The kit includes: one hitch center section (62" maximum width), one driver-side side plate (18" drop), and one passenger-side side plate (18" drop). All three components must be welded together and to the vehicle frame during installation.
The CURT 15926 installation is rated as Difficult and requires welding to the vehicle frame to AWS welding standards. CURT recommends having two or three people during installation. Professional installation by a qualified welder is strongly advised unless you have welding expertise and proper equipment.
You will need welding equipment capable of AWS welding standards, metal cleaning tools (wire brush, grinder, or similar) to remove powder coat and rust, clamps to secure the side plates during welding, and safety glasses. The manual emphasizes that proper tools will improve installation quality and reduce time required.
The manual does not specify whether drilling or frame cutting is required for your vehicle. Contact CURT product support at 877-287-8634 to confirm what modifications, if any, are necessary for your specific vehicle before beginning installation.
1. Clean the vehicle frame and side plates down to bare metal at all weld locations, removing all powder coat and rust. 2. Slide the side plates onto the hitch center section and raise into position. 3. Secure or clamp the side plates to the frame, centering the hitch center section between them. 4. Weld the side plates to the vehicle frame and to the hitch center section to AWS welding standards. 5. Trim any excess center section beyond the side plates as needed.
If metal surfaces are not completely bare of powder coat, rust, or other contaminants, the weld will not achieve the required strength and may void the warranty. All surfaces on the vehicle frame and hitch components must be cleaned down to bare metal at each weld location before welding begins.
The side plates must be welded to the vehicle frame and hitch center section to AWS (American Welding Society) welding standards. This ensures the structural integrity and safety of the installation.
Never exceed the vehicle manufacturer's recommended towing capacity. The CURT 15926 is rated for 20,000 lbs GTW, but your vehicle may have a lower limit. Always follow your vehicle manufacturer's towing specifications, which are typically found in the owner's manual or on a label inside the driver's door jamb.
Safety glasses must be worn at all times while installing this product. Additional protective equipment such as welding gloves, apron, and respiratory protection may be necessary depending on your welding process and work environment.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. The manual does not specify inspection intervals or detailed maintenance procedures. Contact CURT product support at 877-287-8634 for recommended inspection schedules.
The CURT 15926 is a frame-mounted hitch for welding installation. Specific vehicle compatibility is not listed in the manual. Contact CURT at 877-287-8634 or visit curtmfg.com to confirm fitment for your vehicle.
The CURT 15926 is rated for 20,000 lbs gross trailer weight and 2,000 lbs tongue weight when side plates are mounted at 42" width or narrower with 9" drop or less. Never exceed your vehicle manufacturer's towing capacity.
Yes. The CURT 15926 requires welding to the vehicle frame to AWS welding standards. Professional installation is recommended. Two or three people are needed for installation.
The CURT 15926 installation is rated Difficult and requires AWS-standard welding. Unless you have welding expertise and proper equipment, professional installation is strongly recommended.
Yes. All metal surfaces must be cleaned to bare metal, removing all powder coat and rust. Incomplete cleaning will result in weak welds and may void the warranty.
Never exceed your vehicle manufacturer's recommended towing capacity. The CURT 15926 is rated for 20,000 lbs GTW, but your vehicle may have a lower limit.
| Part # | GTW | Receiver Tube Size | Main Body Width | Main Body Tube | Side Plate Drop | Drop | Max Width | Min Width | Finish |
|---|---|---|---|---|---|---|---|---|---|
| 15901 | 15,000 lbs. | 2" | 45" | 4" x 4" | 9-1/2" | 3-1/8" | 43" | 18" | Carbide black |
| 15902 | 15,000 lbs. | 2" | 45" | 4" x 4" | 18" | 11-1/2" | 43" | 18" | Carbide black |
| 15903 | 15,000 lbs. | 2" | 62" | 4" x 4" | 18" | 11-1/2" | 60" | 18" | Carbide black |
| 15920 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15927 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15928 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15921 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15922 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15923 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15924 | 20,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15925 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 60" | 18" | Gloss black |
| 15926 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 3-1/4" | 60" | 18" | Gloss black |
