Side plates must be welded 42" apart or less to achieve 16K rating
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications
Warranty: Limited Lifetime
Main Body Shape: Square
Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 1,600 LB / 16,000 LB
Weight Carrying Capacity (Pounds): 16,000 LB
WC Tongue Weight (Pounds): 1,600 LB
Installation Time Exact (Minutes): 0

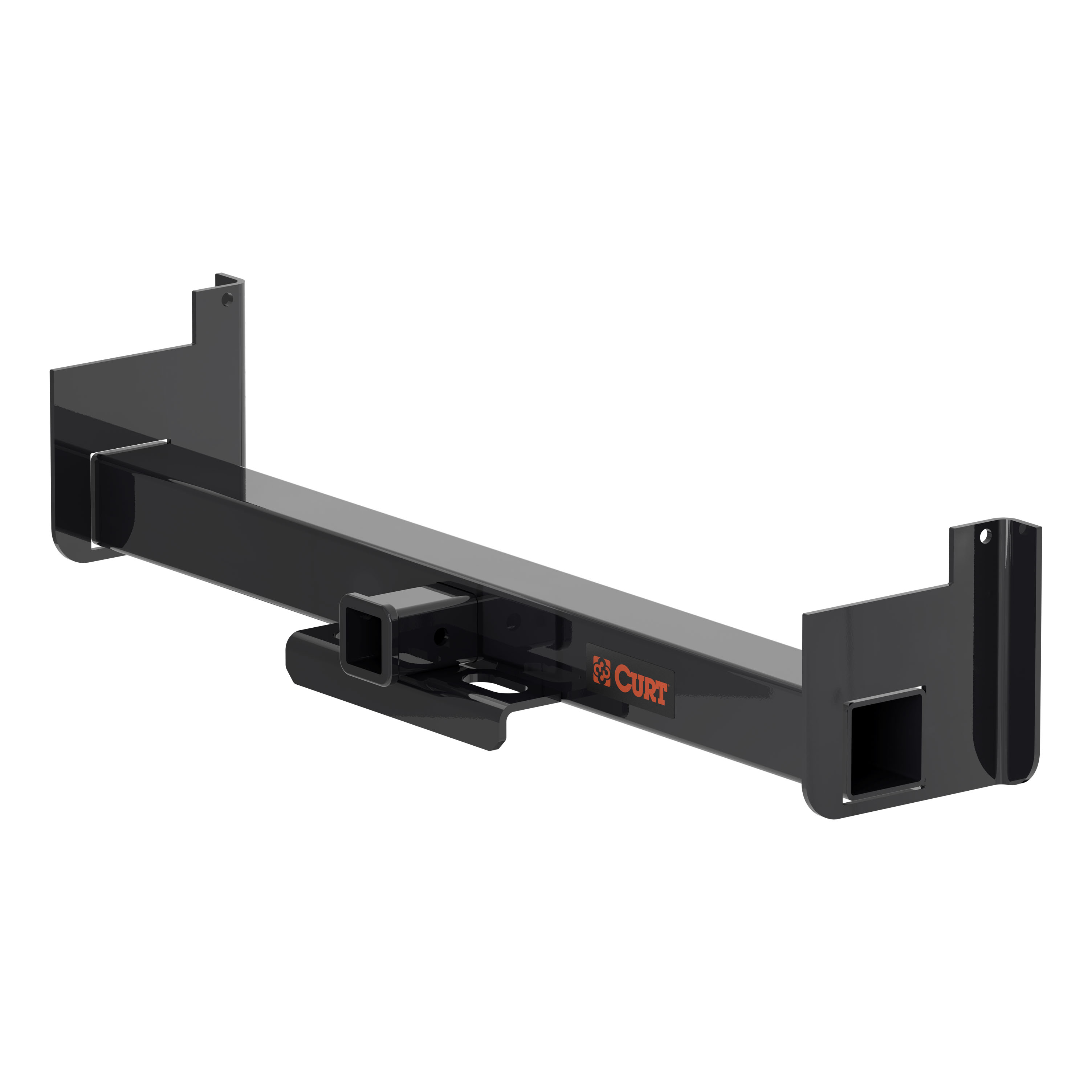

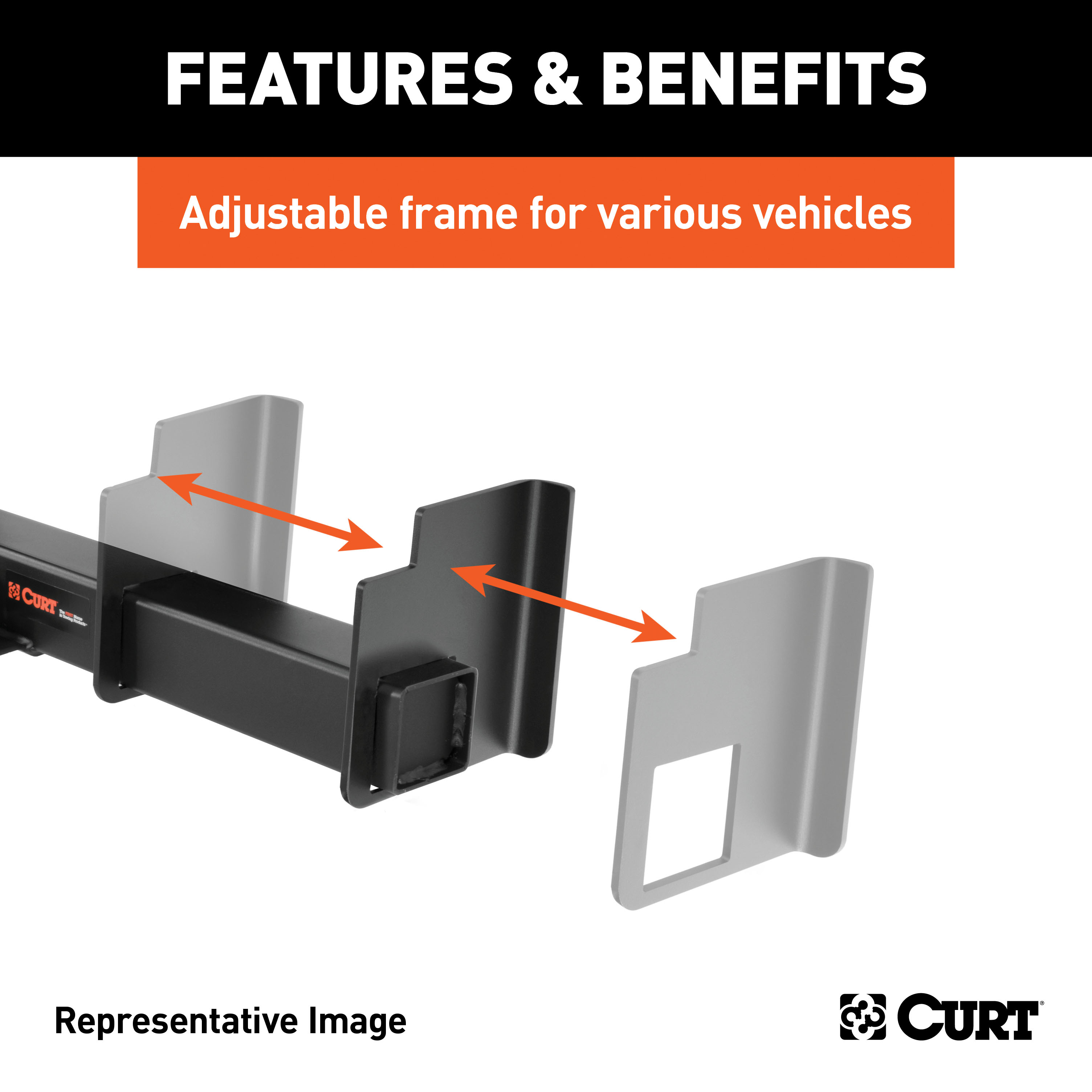

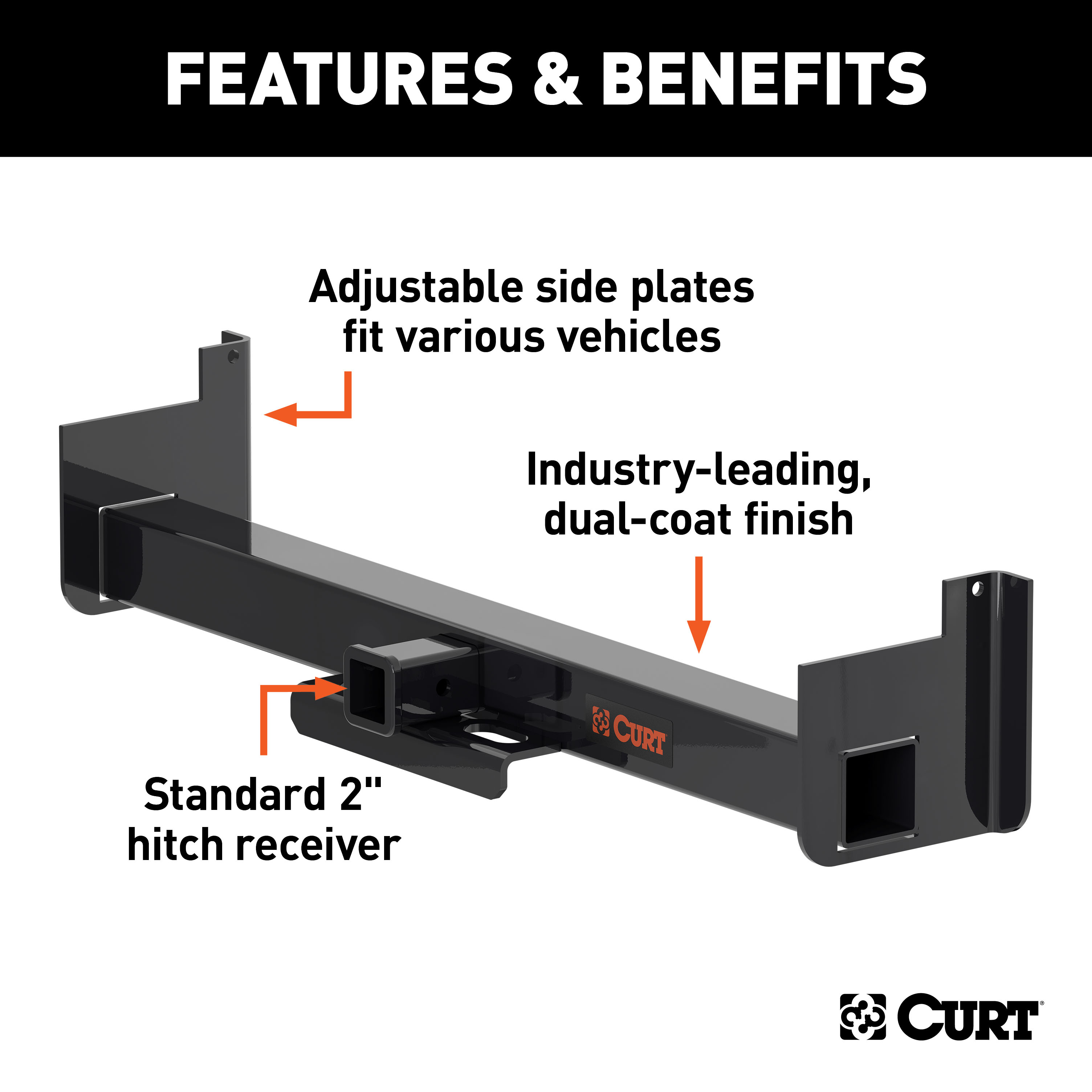

CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on receiver hitch features a 2-inch receiver with a 9-inch drop. It fits frames up to 44 inches wide. The side plates ship unattached from the center section, allowing for a flexible, adjustable installation and a custom fit. No installation hardware required! This welded universal hitch is also rated as a class 5 hitch, being fully tested to SAE J684 specifications for a gross trailer weight capacity of up to 16,000 pounds (NOTE: To achieve 16K rating, side plates must be welded 42 inches wide or less). To protect this weld on receiver hitch from corrosion, it comes shielded with a co-cured finish of liquid A-coat and durable black powder coat.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 15927 is rated for a gross trailer weight (GTW) of 16,000 lbs. and a tongue weight (TW) of 1,600 lbs. This rating applies when the side plates are mounted at a width of 42 inches or narrower and a drop of 9 inches or less.
The hitch center section is 44 inches maximum width and 18 inches minimum width.
Both the driver-side and passenger-side plates provide a 9-inch drop.
Yes. This installation requires welding. The side plates must be welded to both the vehicle frame and the hitch center section to AWS welding standards. It is recommended to have two or three people during the install.
Two to three people are recommended during installation.
All metal surfaces must be cleaned down to bare metal at each weld location. Remove all powder coat from the side plates where they will be mounted to the frame and hitch center section, and from the center section where the side plates will be welded. If metal surfaces are not completely bare, the weld will not be the required strength and may void the warranty.
1. Clean all metal surfaces down to bare metal at weld locations on the vehicle frame and on the side plates and center section. 2. Slide the side plates onto the hitch center section and raise it into position. Secure or clamp the side plates into position on the frame and center the hitch center section between the side plates. 3. Weld the side plates to the vehicle frame and hitch center section to AWS welding standards. Trim off any excess center section beyond the side plates as needed.
Yes. After sliding the side plates onto the hitch center section and securing them into position on the frame, you must center the hitch center section between the side plates before welding.
Trimming may be required. After welding, trim off any excess center section beyond the side plates as needed.
Safety glasses should be worn at all times while installing this product.
Never exceed the vehicle manufacturer's recommended towing capacity.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
The CURT 15927 is rated for 16,000 lbs. GTW and 1,600 lbs. tongue weight when side plates are mounted at 42 inches or narrower width and 9 inches or less drop.
Yes, welding is required to AWS standards. Two to three people are recommended for installation.
All metal surfaces must be cleaned to bare metal at weld locations. Remove all powder coat from the side plates and center section. Incomplete cleaning will weaken the weld and may void the warranty.
Wear safety glasses during installation. Never exceed the vehicle manufacturer's recommended towing capacity. Perform periodic inspection to ensure all hardware remains tight and structural components are secure.
| Part # | GTW | Receiver Tube Size | Main Body Width | Main Body Tube | Side Plate Drop | Drop | Max Width | Min Width | Finish |
|---|---|---|---|---|---|---|---|---|---|
| 15901 | 15,000 lbs. | 2" | 45" | 4" x 4" | 9-1/2" | 3-1/8" | 43" | 18" | Carbide black |
| 15902 | 15,000 lbs. | 2" | 45" | 4" x 4" | 18" | 11-1/2" | 43" | 18" | Carbide black |
| 15903 | 15,000 lbs. | 2" | 62" | 4" x 4" | 18" | 11-1/2" | 60" | 18" | Carbide black |
| 15920 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15927 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15928 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15921 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15922 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15923 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15924 | 20,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15925 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 60" | 18" | Gloss black |
| 15926 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 3-1/4" | 60" | 18" | Gloss black |
