Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications

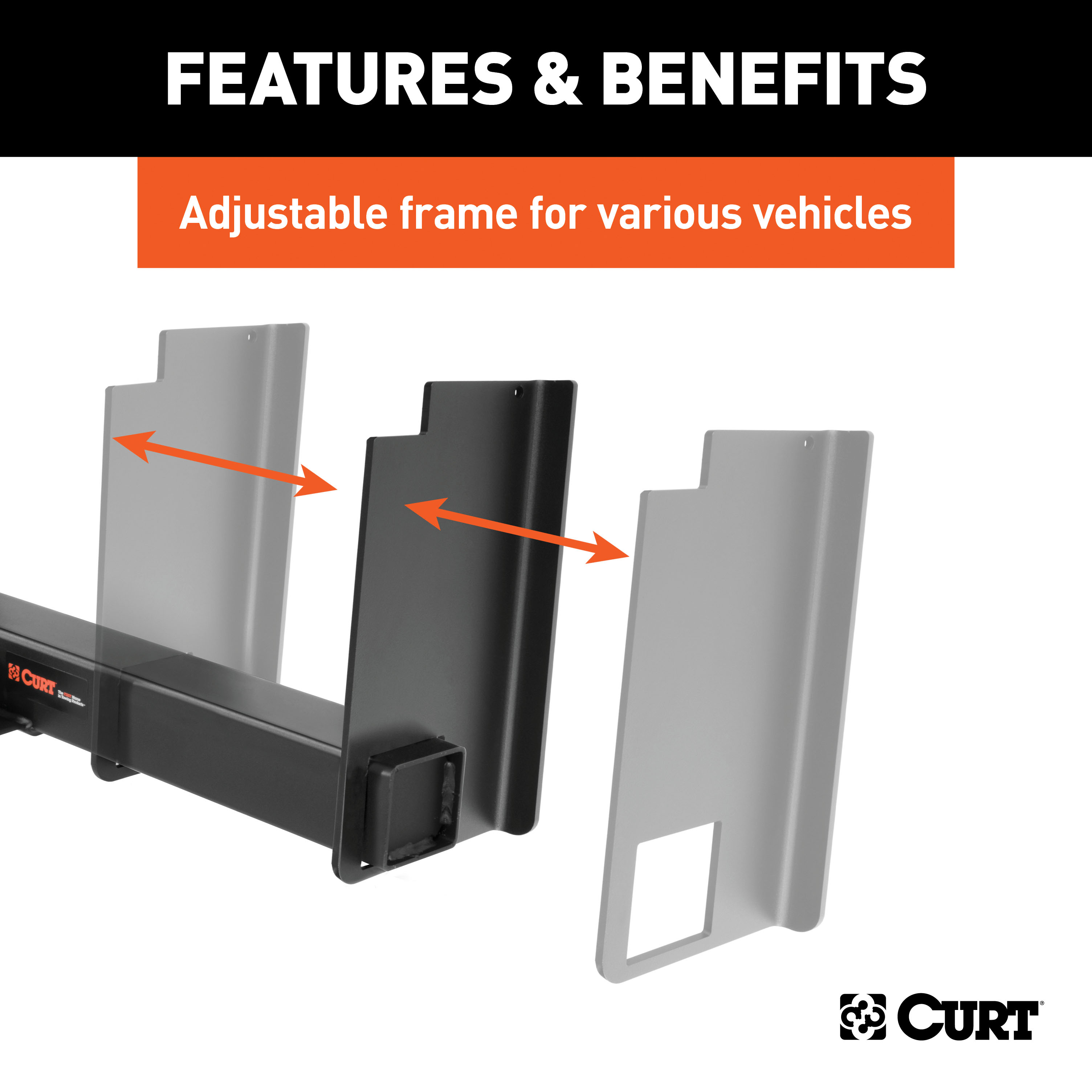

Adjustable side plates come detached from the main body of the hitch and must be welded on
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Main Body Shape: Square

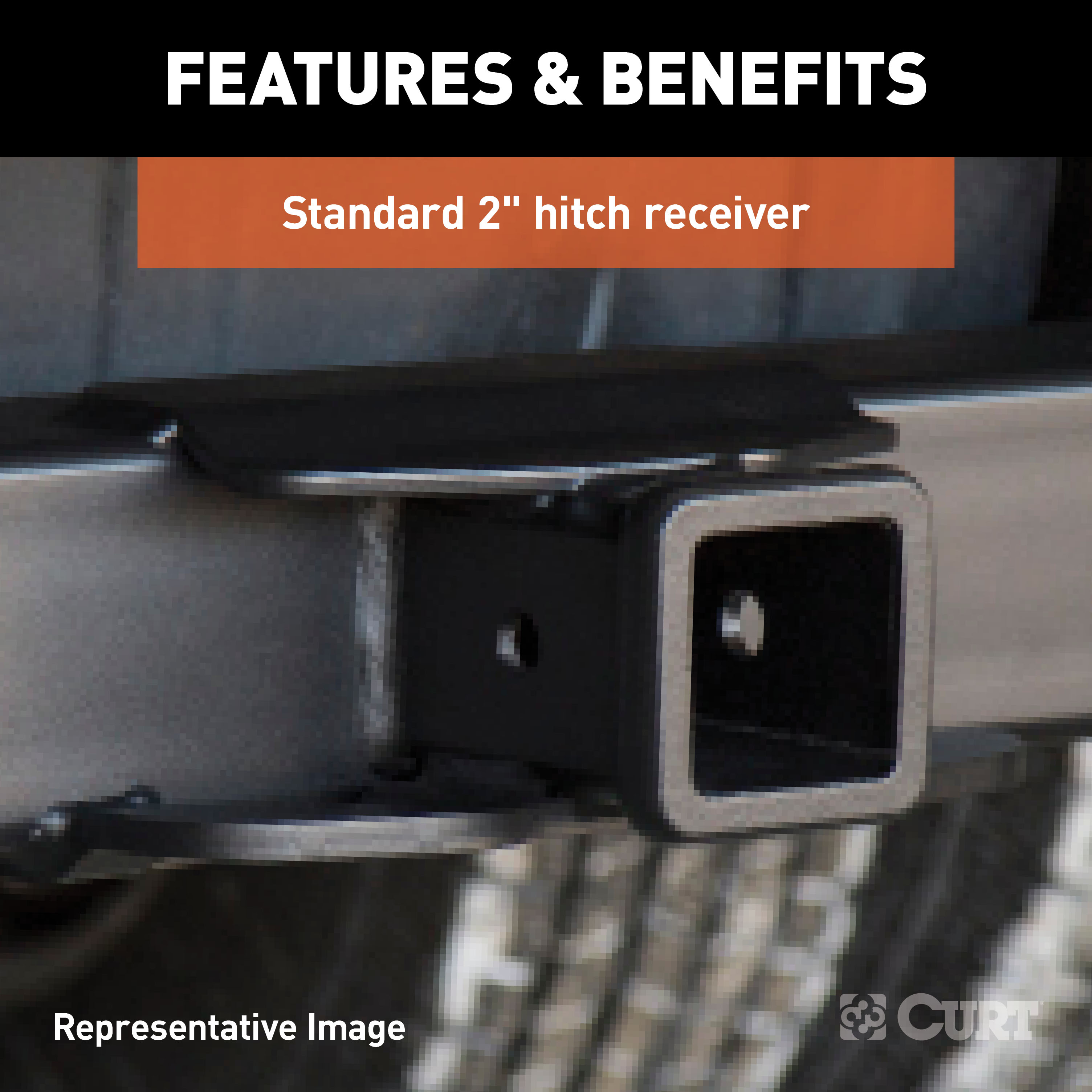

Receiver Tube Size (Inches): 2 IN
Finish: CARBIDE BLACK POWDER COAT
WC / TW (Pounds): 1,500 LB
WC Tongue Weight (Pounds): 1,500 LB
Gross Trailer Weight (Pounds): 15,000 LB
Installation Time Exact (Minutes): 0

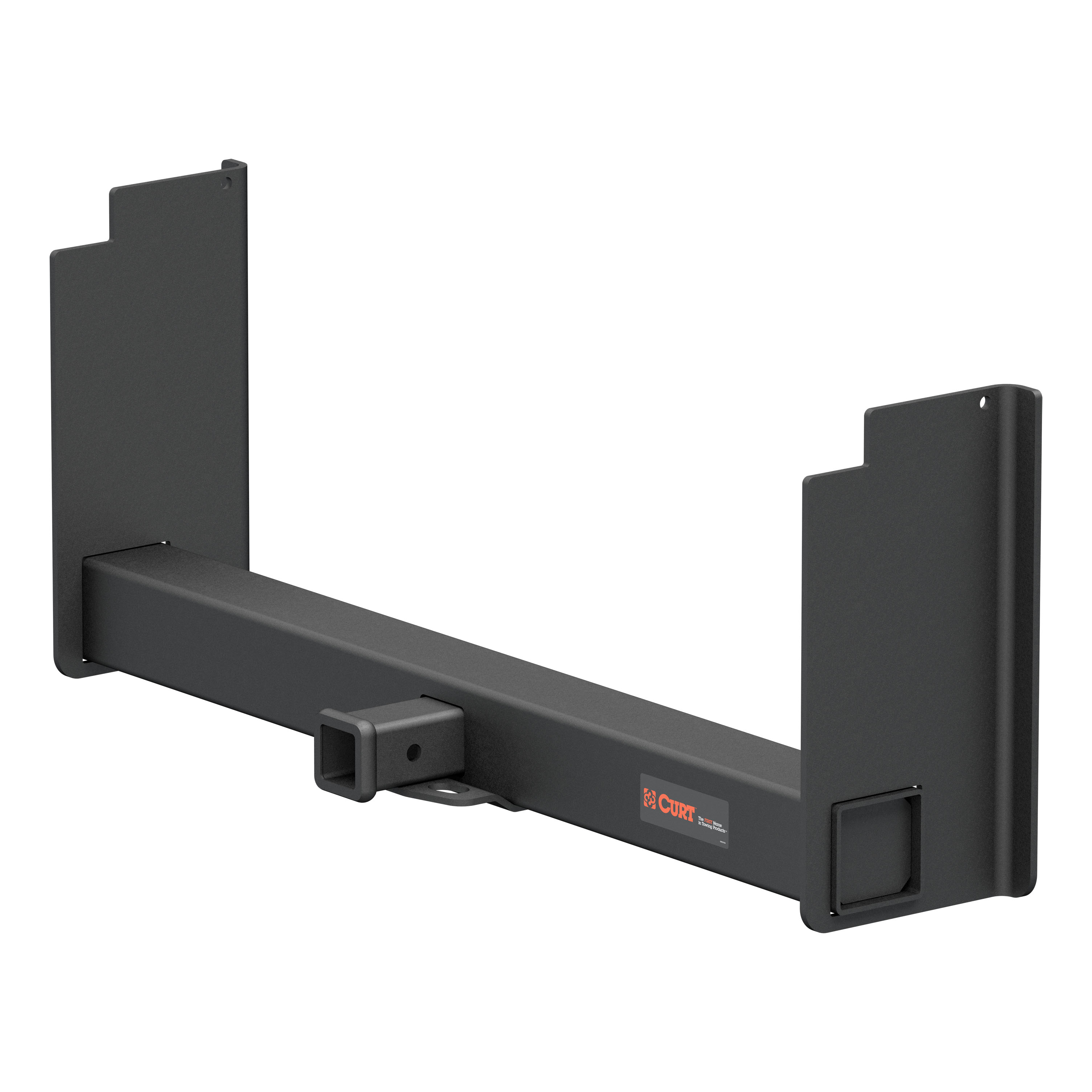

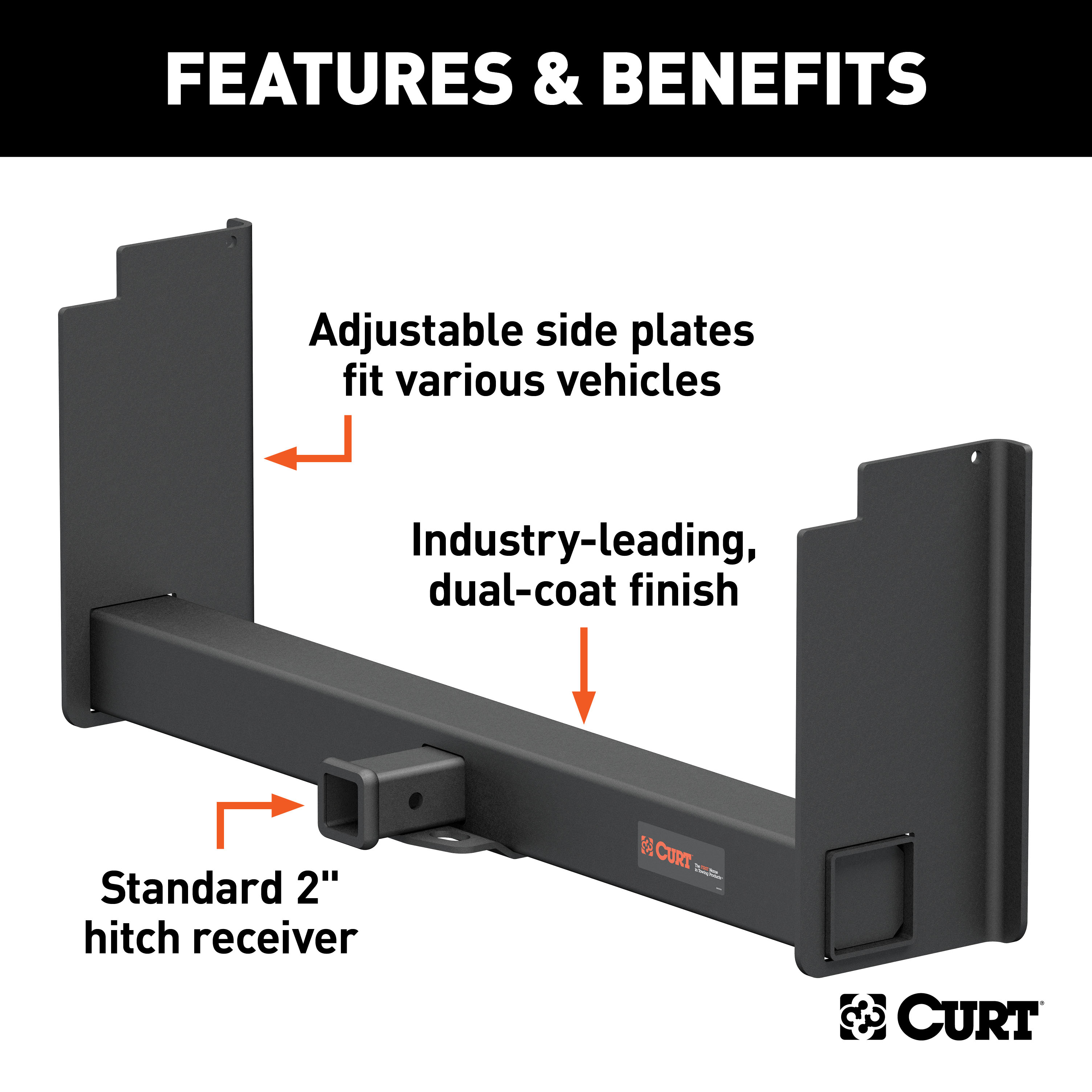

CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on receiver hitch features a 2-inch receiver with an 11-1/2-inch drop. It fits frames anywhere from 18 inches wide to 43 inches wide. The side plates ship unattached from the center section, allowing for a flexible, adjustable installation and a custom fit. No installation hardware required! This welded universal hitch is also rated as a class 5 hitch, being fully tested to SAE J684 specifications for a gross trailer weight capacity of 15,000 pounds and a tongue weight capacity of up to 1,500 pounds. To protect this weld on receiver hitch from corrosion, it comes shielded with a co-cured finish of liquid A-coat and durable black powder coat. NOTE: Side plates do not come pre-welded.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The Curt 15902 is rated for a gross load capacity of 15,000 lbs trailer weight and 1,500 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
The Curt 15902 is described as a universal weld-on receiver hitch, but the manual does not specify which vehicles it is compatible with or any exclusions. You should verify fitment with Curt Manufacturing or a fitment database before purchasing, or contact technical support at 1-877-287-8634.
The Curt 15902 requires welding to AWS standards, which is a specialized skill. Professional installation is recommended and takes approximately 75 minutes. The manual recommends 2–3 people for installation. If you do not have welding experience and equipment, professional installation is strongly advised. Contact Curt technical support at 1-877-287-8634 for installer recommendations.
The manual recommends 2–3 people for installation of the Curt 15902.
Yes, welding is required to install the Curt 15902. The side plates must be welded to the vehicle frame and main body to AWS welding standards. All metal surfaces must be cleaned to bare metal before welding, or the weld will not achieve the required strength and may void the warranty.
All metal surfaces must be cleaned to bare metal before welding. Specifically: (1) Clean the vehicle frame surface in weld locations down to bare metal. (2) Clean off powder coating on the side plates where they will be mounted to the frame and main body. (3) Clean powder coating off the main body where side plates will be welded. If metal surfaces are not completely bare, the weld will not be the required strength and may void the warranty.
Yes. After welding the side plates to the frame and main body, you may trim off any excess main body beyond the side plates as desired.
The installation sequence is: (1) Locate where the hitch side plates will be mounted to the vehicle frame. (2) Clean all metal surfaces (frame and side plates) to bare metal and remove all powder coating from weld locations. (3) Slide side plates onto the main body and raise into position. (4) Secure and clamp side plates to the frame, centering the main body between the side plates. (5) Weld side plates to the frame and main body to AWS welding standards. (6) Trim any excess main body beyond the side plates as desired.
The main body is 11.500 inches long. The maximum overall length is 43.88 inches, and the minimum is 18.00 inches. The side plates are 0.25 inches thick. The mounting hole diameter is 3.220 inches.
The Curt 15902 is rated for a gross load capacity of 15,000 lbs trailer weight and 1,500 lbs tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings. Always follow your vehicle manufacturer's specifications.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a maintenance interval; regular visual inspection is recommended.
Curt Manufacturing Inc. warrants the Curt 15902 to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
15,000 lbs trailer weight and 1,500 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes. Welding to AWS standards is required. All metal surfaces must be cleaned to bare metal before welding, or the weld will not achieve required strength and may void warranty.
2–3 people are recommended for installation.
Clean all metal surfaces to bare metal: the vehicle frame, side plates, and main body. Remove all powder coating from weld locations. Incomplete cleaning will result in weak welds and may void warranty.
Periodically check that all fasteners are tight and all structural components are sound.
On Sale Today
Original price was $480.95. Current price is $322.99.You save $157.96 (33%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Sun, Sep 27 - Tue, Sep 29
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Part # | GTW | Receiver Tube Size | Main Body Width | Main Body Tube | Side Plate Drop | Drop | Max Width | Min Width | Finish |
|---|---|---|---|---|---|---|---|---|---|
| 15901 | 15,000 lbs. | 2" | 45" | 4" x 4" | 9-1/2" | 3-1/8" | 43" | 18" | Carbide black |
| 15902 | 15,000 lbs. | 2" | 45" | 4" x 4" | 18" | 11-1/2" | 43" | 18" | Carbide black |
| 15903 | 15,000 lbs. | 2" | 62" | 4" x 4" | 18" | 11-1/2" | 60" | 18" | Carbide black |
| 15920 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15927 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15928 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15921 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15922 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15923 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15924 | 20,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15925 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 60" | 18" | Gloss black |
| 15926 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 3-1/4" | 60" | 18" | Gloss black |
