Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications

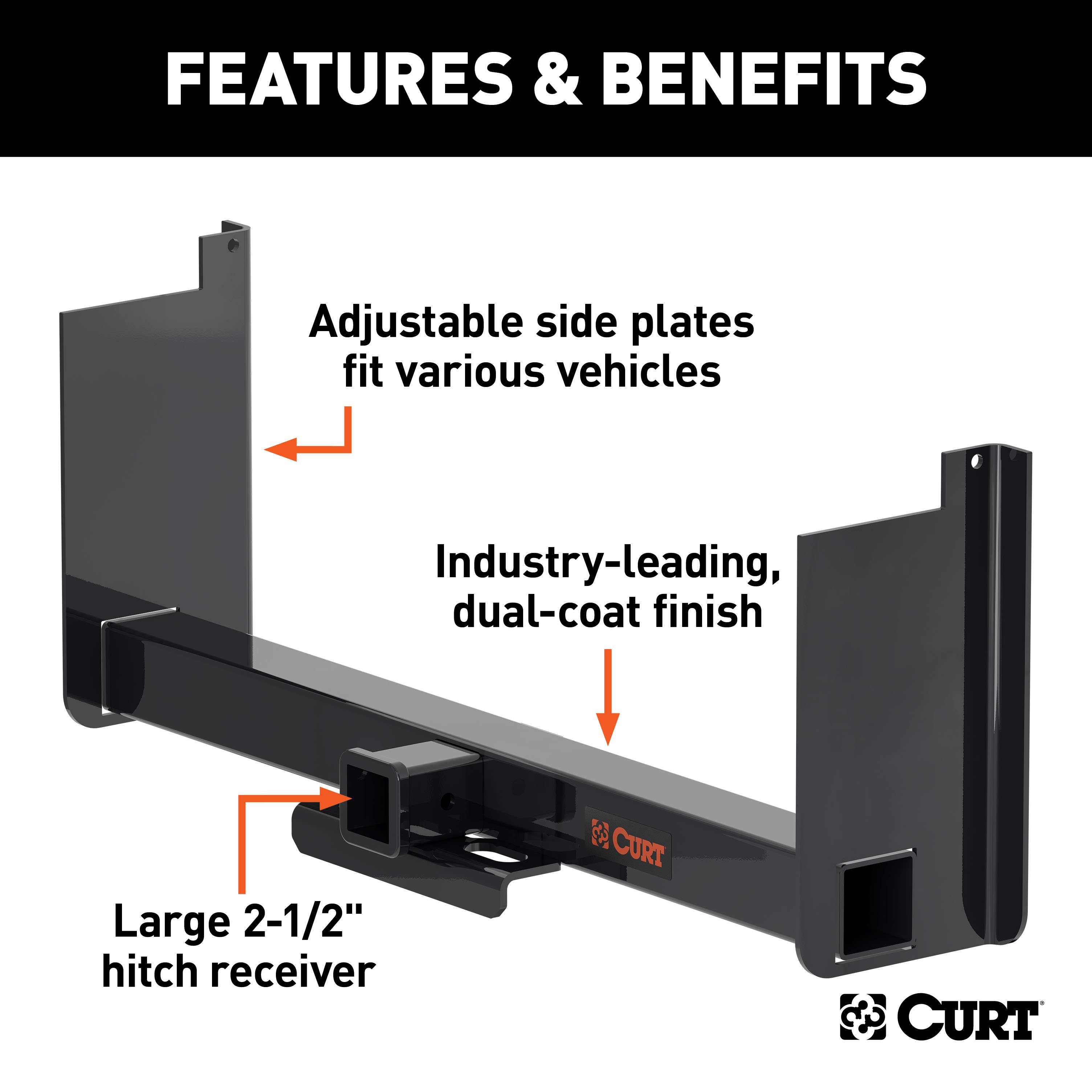

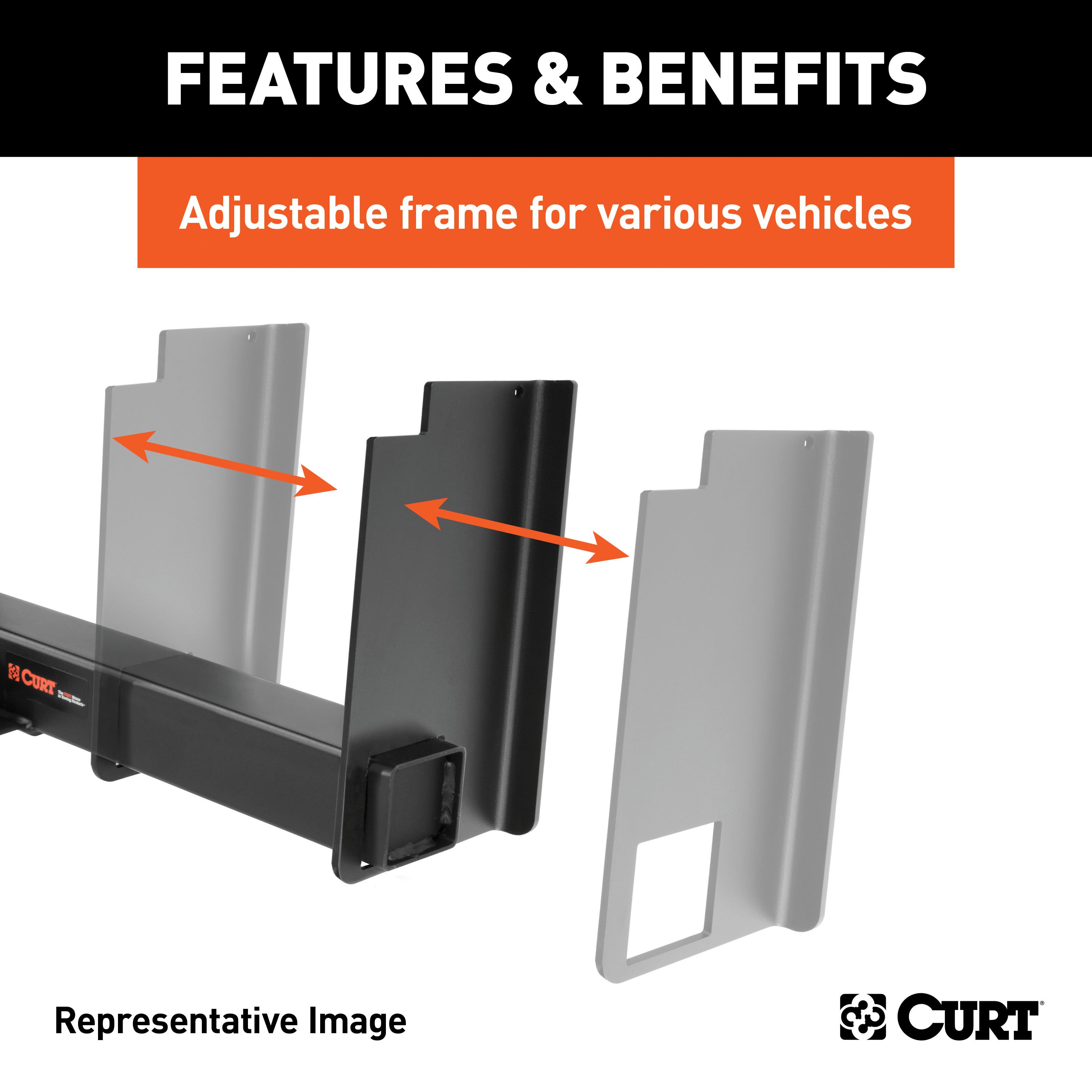

Adjustable side plates come detached from the main body of the hitch and must be welded on
Warranty: Limited Lifetime
Main Body Shape: Square

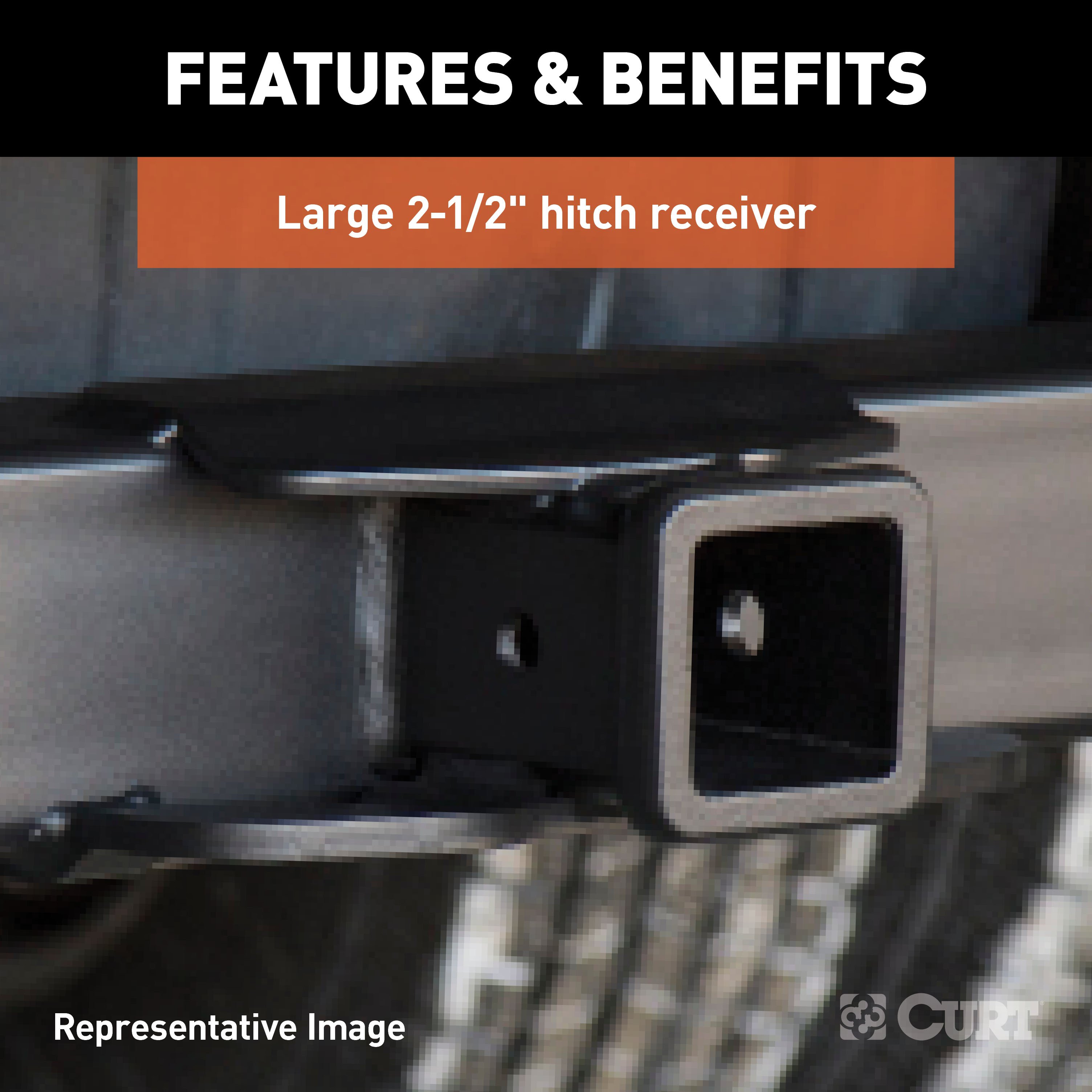

Receiver Tube Size (Inches): 2-1/2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 2,000 LB / 20,000 LB
Weight Carrying Capacity (Pounds): 20,000 LB
WC Tongue Weight (Pounds): 2,000 LB
Installation Time Exact (Minutes): 0

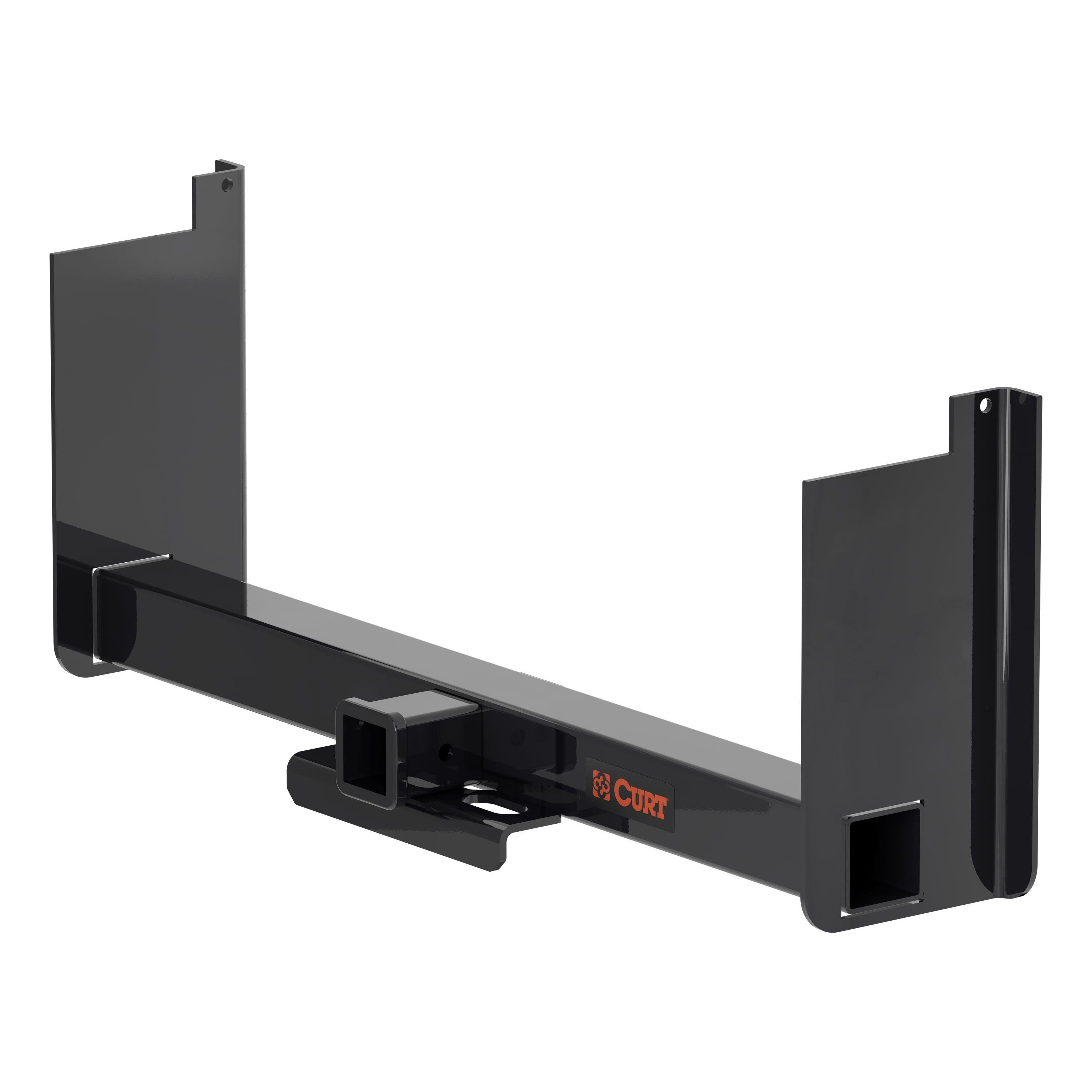

CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on receiver hitch features a 2-1/2-inch receiver with an 18-inch drop. It fits frames up to 44 inches wide. The side plates ship unattached from the center section, allowing for a flexible, adjustable installation and a custom fit. No installation hardware required! This welded universal hitch is also rated as a class 5 hitch, being fully tested to SAE J684 specifications. To protect this weld on receiver hitch from corrosion, it comes shielded with a co-cured finish of liquid A-coat and durable black powder coat.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 15924 is rated for a gross trailer weight (GTW) of 20,000 lbs and a tongue weight (TW) of 2,000 lbs. This 20,000 lbs GTW rating applies when the side plates are mounted at a width of 42" or narrower and a drop of 9" or less.
The hitch center section is 44" in maximum width and 18" in minimum width. The side plates have an 18" drop. The center section can be trimmed as needed during installation to fit between the side plates.
The kit includes one hitch center section (44"), one driver-side side plate (18" drop), and one passenger-side side plate (18" drop).
Yes, welding is required. The side plates must be welded to both the vehicle frame and the hitch center section to AWS welding standards. The installation is rated as Difficult and it is recommended to have two or three people during the install.
The installation requires welding and is rated as Difficult. It is recommended to have two or three people during the install. Because welding to AWS standards is required and metal surfaces must be completely bare for proper weld strength, professional installation by a qualified welder is strongly advisable.
Yes, the hitch center section may need to be trimmed. Step 3 of the assembly instructions states: "Trim off any excess center section beyond the side plates as needed." The center section is 44" maximum width and must be centered between the side plates during welding.
1. Clean the vehicle frame surface down to bare metal at all weld locations. Clean any powder coat from the side plates and hitch center section. 2. Slide the side plates onto the hitch center section and raise into position. Secure or clamp the side plates to the frame, centering the hitch center section between them. 3. Weld the side plates to the vehicle frame and hitch center section to AWS welding standards. Trim excess center section beyond the side plates as needed.
If metal surfaces are not completely bare, the weld will not be the required strength and may void the warranty. All powder coat must be cleaned from the vehicle frame, side plates, and hitch center section at all weld locations before welding begins.
Safety glasses should be worn at all times while installing this product. Additionally, never exceed the vehicle manufacturer's recommended towing capacity when using the hitch.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure.
The CURT 15924 is a frame-mounted hitch with a 44" center section and 18" drop side plates. Fitment depends on your vehicle's frame width and configuration. Consult the product fitment database or contact CURT Product Support at 877.287.8634 to confirm compatibility with your specific vehicle.
Welding equipment capable of AWS welding standards is required. The manual does not specify other tools. Proper tools will improve installation quality and reduce time required.
The manual does not mention drilling. Installation requires welding the side plates to the vehicle frame and hitch center section.
The tongue weight (TW) capacity is 2,000 lbs.
No. Never exceed the vehicle manufacturer's recommended towing capacity. The CURT 15924 is rated for 20,000 lbs GTW, but you must respect your vehicle's limits.
On Sale Today
Original price was $356.95. Current price is $240.99.You save $115.96 (32%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Lancaster, TXFREE SHIPPING
Estimated delivery Sun, Sep 27 - Tue, Sep 29
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Part # | GTW | Receiver Tube Size | Main Body Width | Main Body Tube | Side Plate Drop | Drop | Max Width | Min Width | Finish |
|---|---|---|---|---|---|---|---|---|---|
| 15901 | 15,000 lbs. | 2" | 45" | 4" x 4" | 9-1/2" | 3-1/8" | 43" | 18" | Carbide black |
| 15902 | 15,000 lbs. | 2" | 45" | 4" x 4" | 18" | 11-1/2" | 43" | 18" | Carbide black |
| 15903 | 15,000 lbs. | 2" | 62" | 4" x 4" | 18" | 11-1/2" | 60" | 18" | Carbide black |
| 15920 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15927 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15928 | 16,000 lbs. | 2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15921 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15922 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 9" | 3 1/8" | 42" | 18" | Gloss black |
| 15923 | 16,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 42" | 18" | Gloss black |
| 15924 | 20,000 lbs. | 2-1/2" | 44" | 3-1/2" x 3-1/2" | Not included | -- | -- | -- | Gloss black |
| 15925 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 11-1/2" | 60" | 18" | Gloss black |
| 15926 | 20,000 lbs. | 2-1/2" | 62" | 3-1/2" x 3-1/2" | 18" | 3-1/4" | 60" | 18" | Gloss black |
