Includes pintle attachment only (channel mount sold separately)
Includes pintle attachment only (channel mount sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: CARBIDE BLACK POWDER COAT
Gross Trailer Weight (Pounds): 13,000 LB
Ball Diameter (Inches): 2-5/16 IN
Installation Time Exact (Minutes): 0

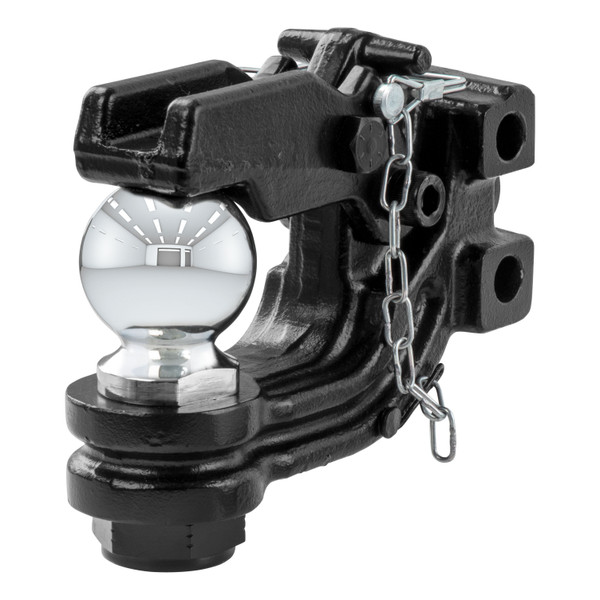

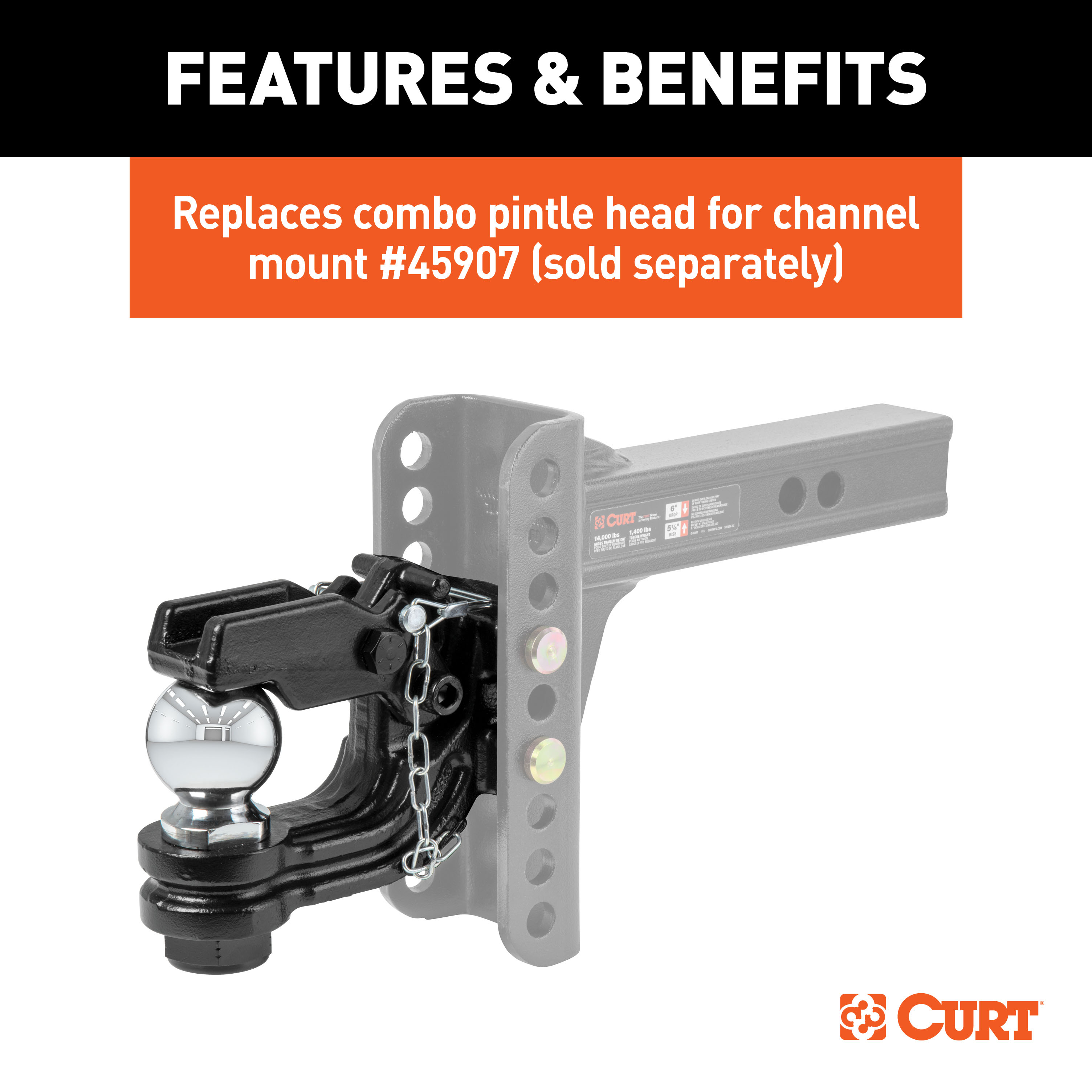

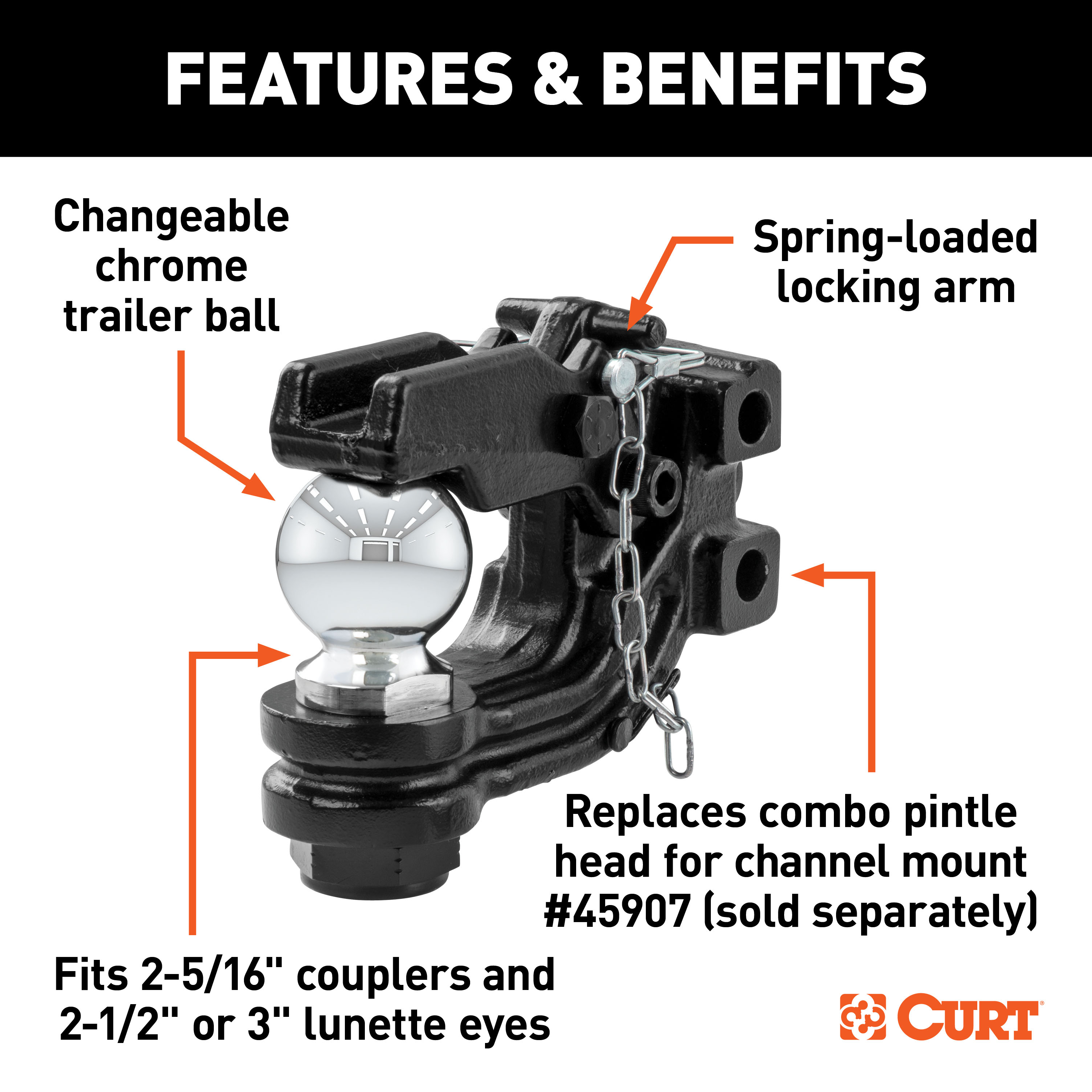

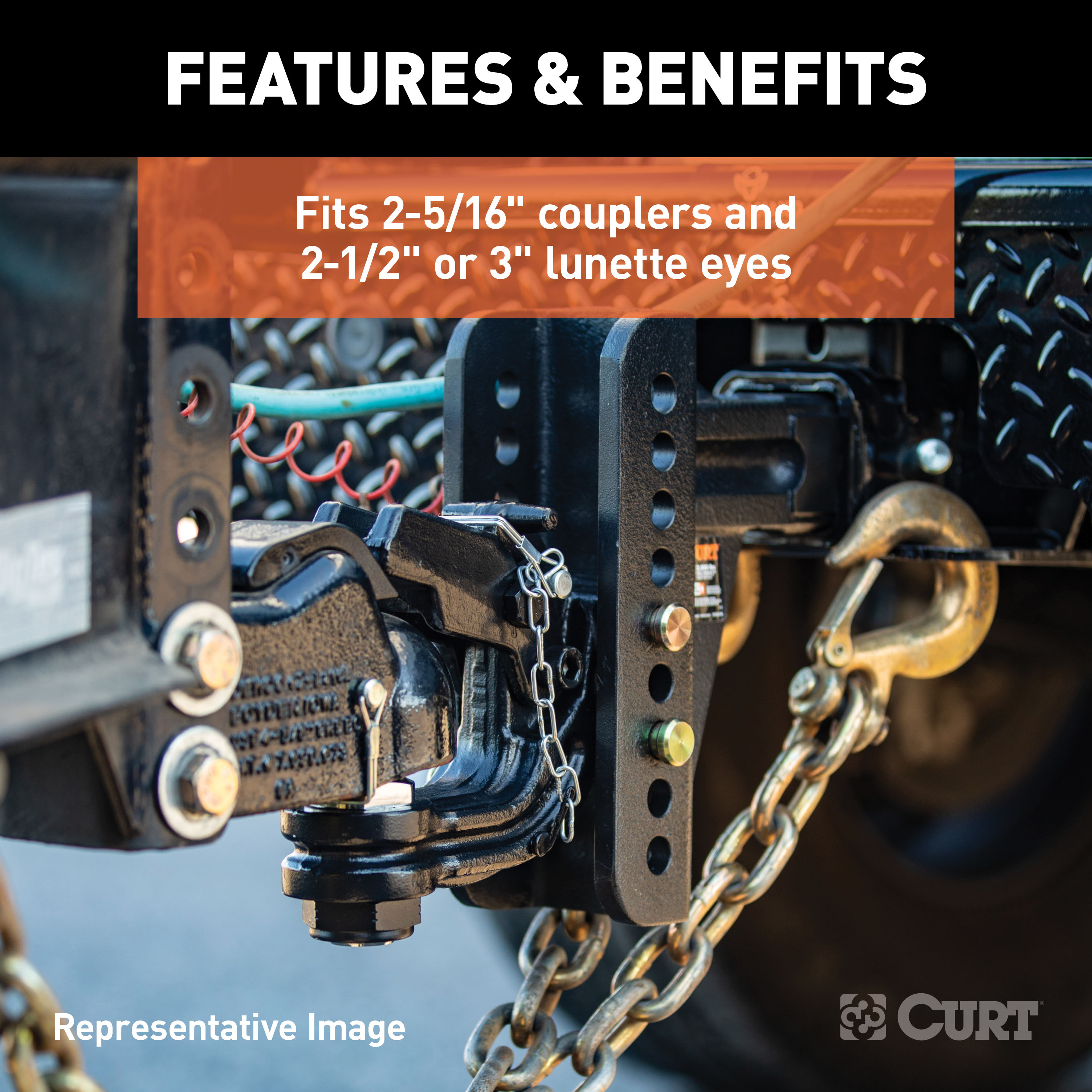

This replacement ball and pintle combination head offers versatile towing options and is designed to fit the CURT adjustable channel mount #45907. It features a standard 2-5/16-inch diameter trailer ball to fit any 2-5/16-inch trailer coupler. With its integrated spring-loaded arm, the ball-pintle combination can also be coupled to a 2-1/2-inch or 3-inch lunette ring (inside diameter). NOTE: Includes pintle attachment only. Channel mount sold separately.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products

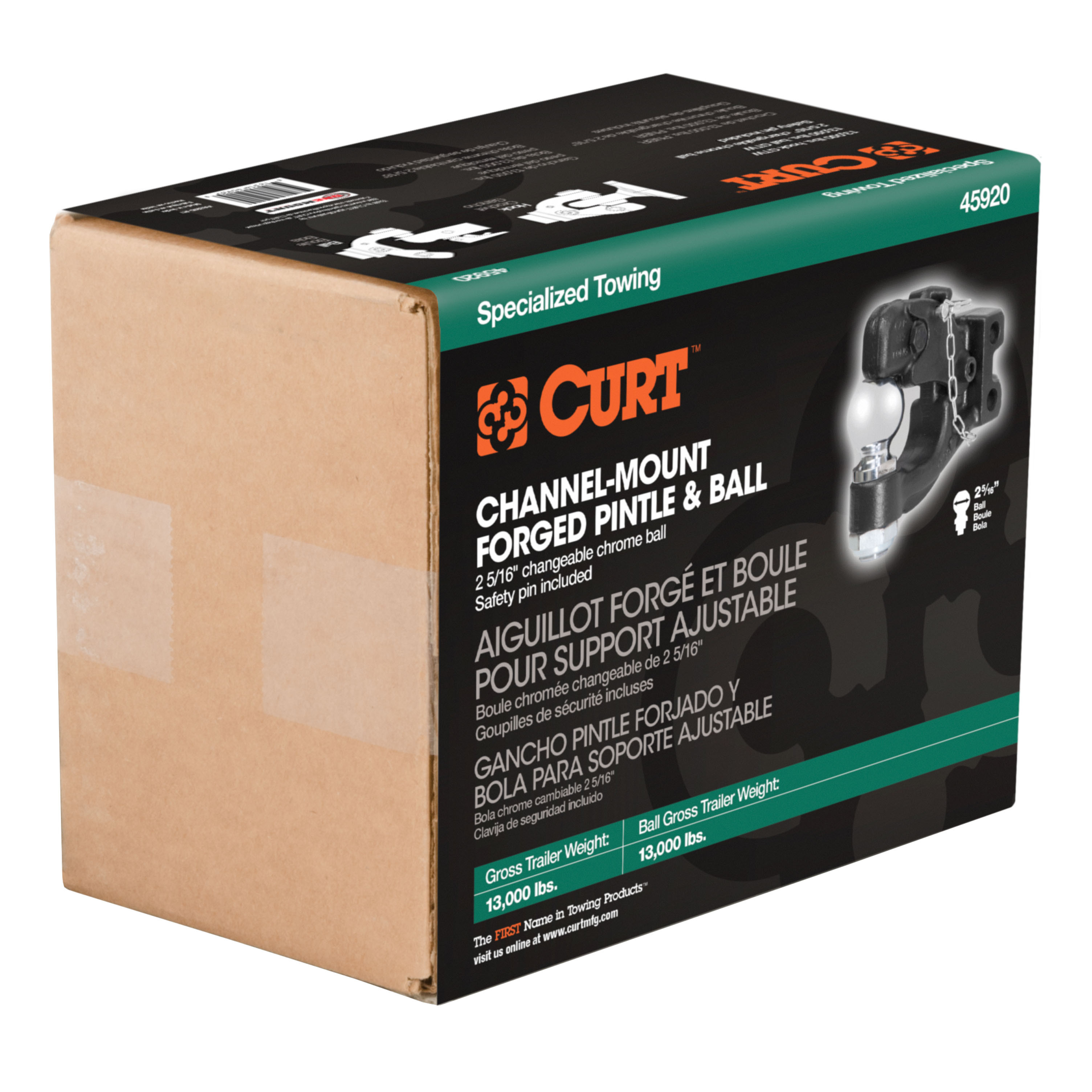

The Curt 45920 is a channel-mount forged pintle and ball hitch designed for towing trailers. It features a 2 5/16" ball and is rated for a maximum gross trailer weight of 13,000 lbs and tongue weight of 1,300 lbs. The pintle hitch mounts to a channel-mount system that is installed in your vehicle's trailer hitch receiver.
No. The Curt 45920 pintle hitch can only be used with the channel-mount system from the product manufacturer. Use of any channel-mount other than that of the channel-mount system manufacturer is a serious safety hazard and will void the warranty.
The Curt 45920 has a 2 5/16" ball.
The Curt 45920 is rated for a maximum gross trailer weight of 13,000 lbs and a tongue weight of 1,300 lbs. However, you must not exceed your vehicle's towing capacity or the trailer hitch capacity, whichever is less. Check your vehicle owner's manual to determine your vehicle's tow rating.
You need a channel-mount system from the product manufacturer already installed in your vehicle's trailer hitch receiver, a hitch pin and clip, a safety pin, and the adjustable channel-mount shank. The manual does not specify whether these items are included with the pintle hitch or must be purchased separately; contact Curt Manufacturing at 877.287.8634 or curtmfg.com for clarification.
1. Install the adjustable channel-mount shank into the trailer hitch of the vehicle and secure it with a hitch pin and clip. Always secure the hitch pin with a clip unless a locking device is being used. 2. Raise or lower the pintle to the desired height and insert the channel-mount system pins through the holes that line up with the holes in the channel-mount. Secure the pins with clips. 3. After the pintle is set to the correct height and secured, tighten the anti-rattle set screw tightly into the channel-mount to eliminate noise. The set screw is not required for safety, only to eliminate possible rattle.
The pintle ball must be torqued to 260 ft-lbs before towing. This is a critical safety requirement.
No. If replacement pins are needed, they must be replaced with original factory channel-mount pins. Using non-original pins could compromise safety.
Before towing, ensure the pintle ball is torqued to 260 ft-lbs and check that all pins are secured into place with clips. Ensure that the safety chains operate freely around the channel-mount system and do not become entangled. Never hook up trailer safety chains to the channel-mount system itself.
To tow with the trailer ball, open the pintle latch by removing the safety pin and pulling up on the lock while lifting the latch. Replace the safety pin to retain the open latch position. Position the coupler over the trailer ball and lock it into place following the instructions of the coupler manufacturer. Prior to towing, check to make sure the pins are secured into place with clips.
No. Never hook up trailer safety chains to the channel-mount system. Safety chains must be attached to the trailer coupler or other appropriate attachment points on your vehicle.
The Curt 45920 requires a channel-mount system from the product manufacturer already installed in your vehicle's trailer hitch receiver. Check your vehicle documentation or contact Curt Manufacturing at 877.287.8634 to confirm compatibility.
The pintle ball must be torqued to 260 ft-lbs before towing.
The Curt 45920 is rated for 13,000 lbs gross trailer weight and 1,300 lbs tongue weight. However, never exceed your vehicle manufacturer's recommended towing capacity, whichever is less.
The manual does not address drilling or vehicle modifications. The installation assumes a channel-mount system is already installed in your vehicle's trailer hitch receiver. Contact Curt Manufacturing at 877.287.8634 for details on channel-mount installation requirements.
On Sale Today
Original price was $278.95. Current price is $172.99.You save $105.96 (38%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Fri, Sep 18 - Sun, Sep 20
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Part # | Description | Fits |
|---|---|---|
| 45910 | 2" channel shank, qty 1 | 45900, 45904, 45907 |

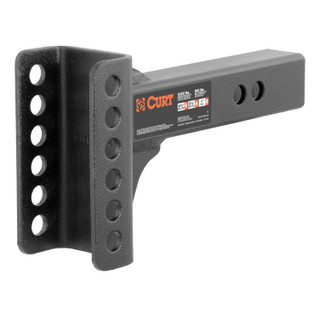

| 45911 | 2" channel shank, qty 1 | 45901 |

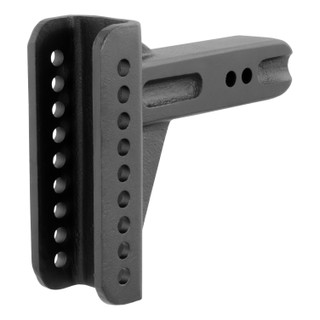

| 45917 | 2-5/16" channel shank, qty 1 | 45902, 45908 |

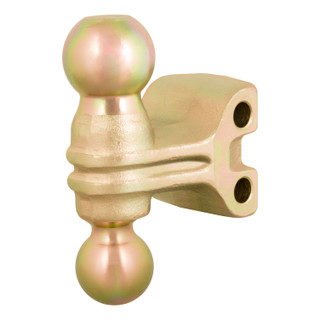

| 45912 | Dual-ball, qty 1 | 45900, 45902 |
| 45923 | Dual-ball, qty 1 | 45902, 45927 |
| 45924 | Dual-ball, hook and step, qty 1 | 45904 |

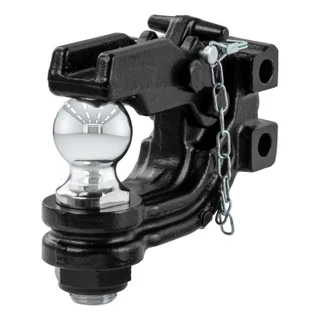

| 45919 | Ball and pintle hitch, qty 1 - 10,000 lbs. GTW - 2" ball |
All channel mounts |
| 45920 | Ball and pintle hitch, qty 1 - 13,000 lbs. GTW - 2-5/16" ball |
45907 |
| 45922 | Ball and pintle hitch, qty 1 - 20,000 lbs. GTW - 2-5/16" ball |
45908 |
| 45916 | Shank anti-rattle screw, qty 1 | Previous models |
| 45921 | Shank anti-rattle bumper, qty 1 | Previous models |
| 19275 | Attachment anti-rattle | All channel mounts |
| 45925 | Channel pins & clips, qty 2 | All channel mounts |
