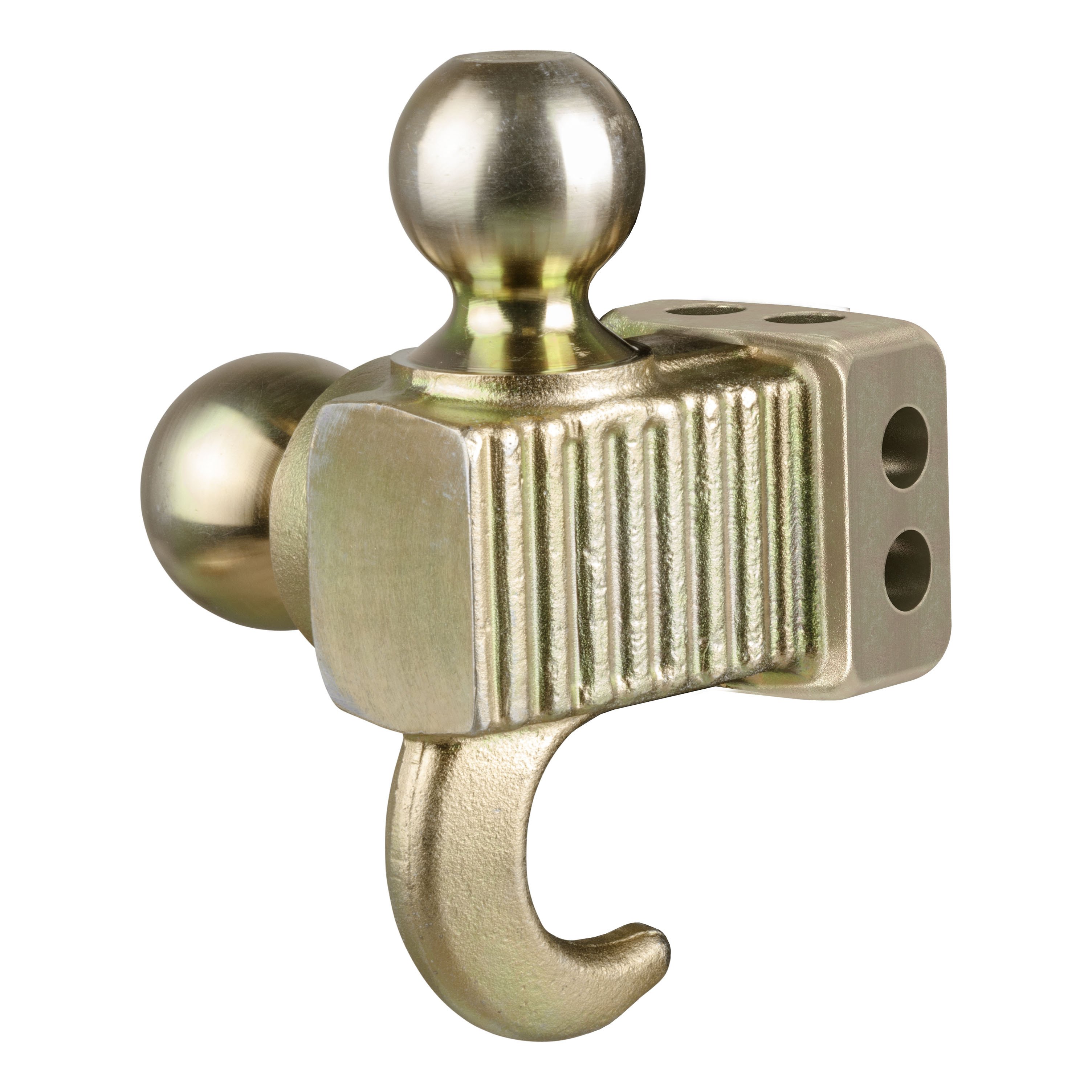

CURT 45924 Replacement Hook & Step Dual-Ball for Channel Mount #45904CURTOriginal price was $233.95. Current price is $144.99.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
On Sale Today
Original price was $435.95. Current price is $269.99.Configuration
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
You save $165.96 (38%)
Free Shipping
Ships free on all orders
Authorized DealerQuick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Wed, Aug 12 - Fri, Aug 14
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Includes pins & clips for vertical shank only (receiver hitch pin sold separately)
Patent# US8,033,563
Includes pins & clips for vertical shank only (receiver hitch pin sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Finish: Blank
Ball Diameter (Inches): 2 IN
Installation Time Exact (Minutes): 0

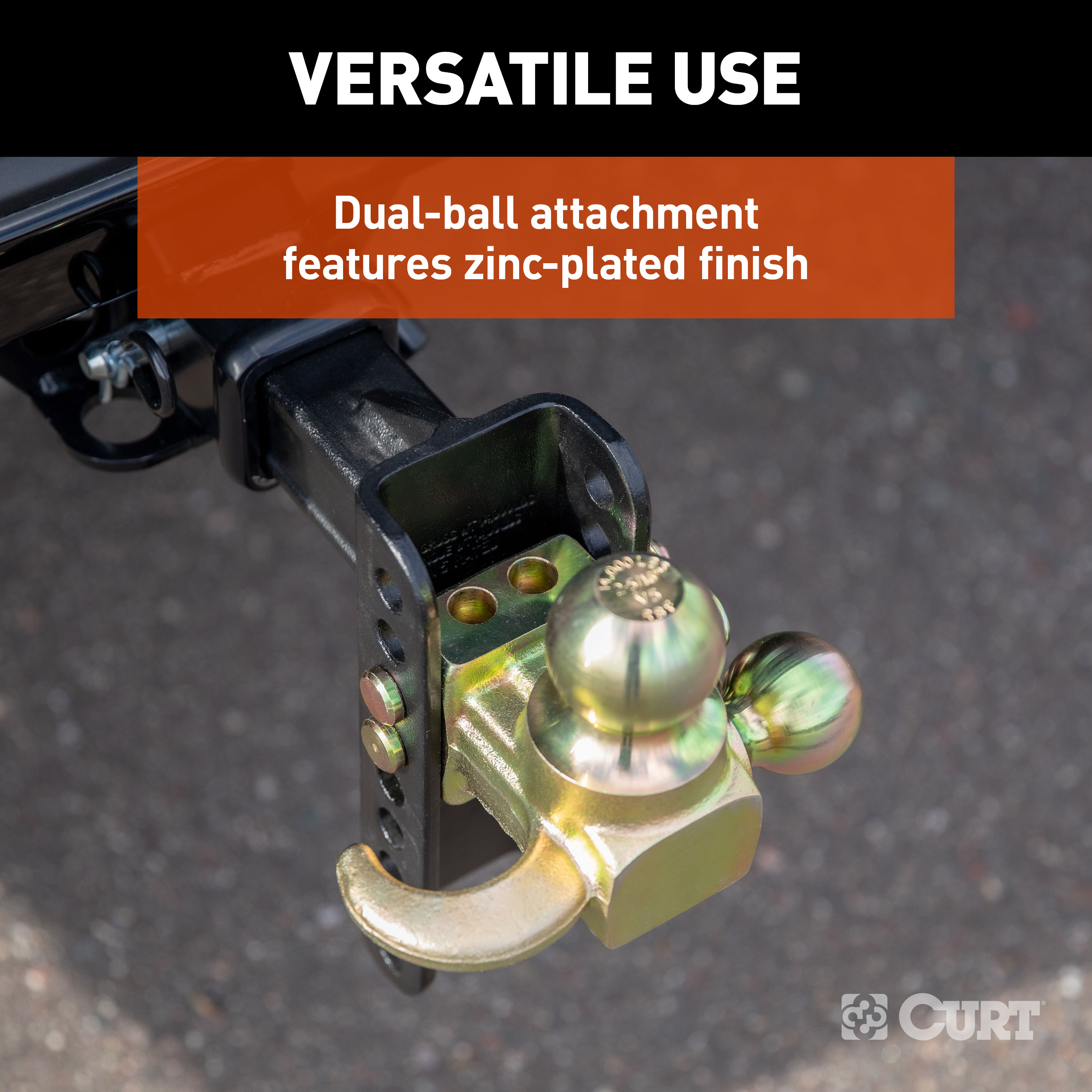

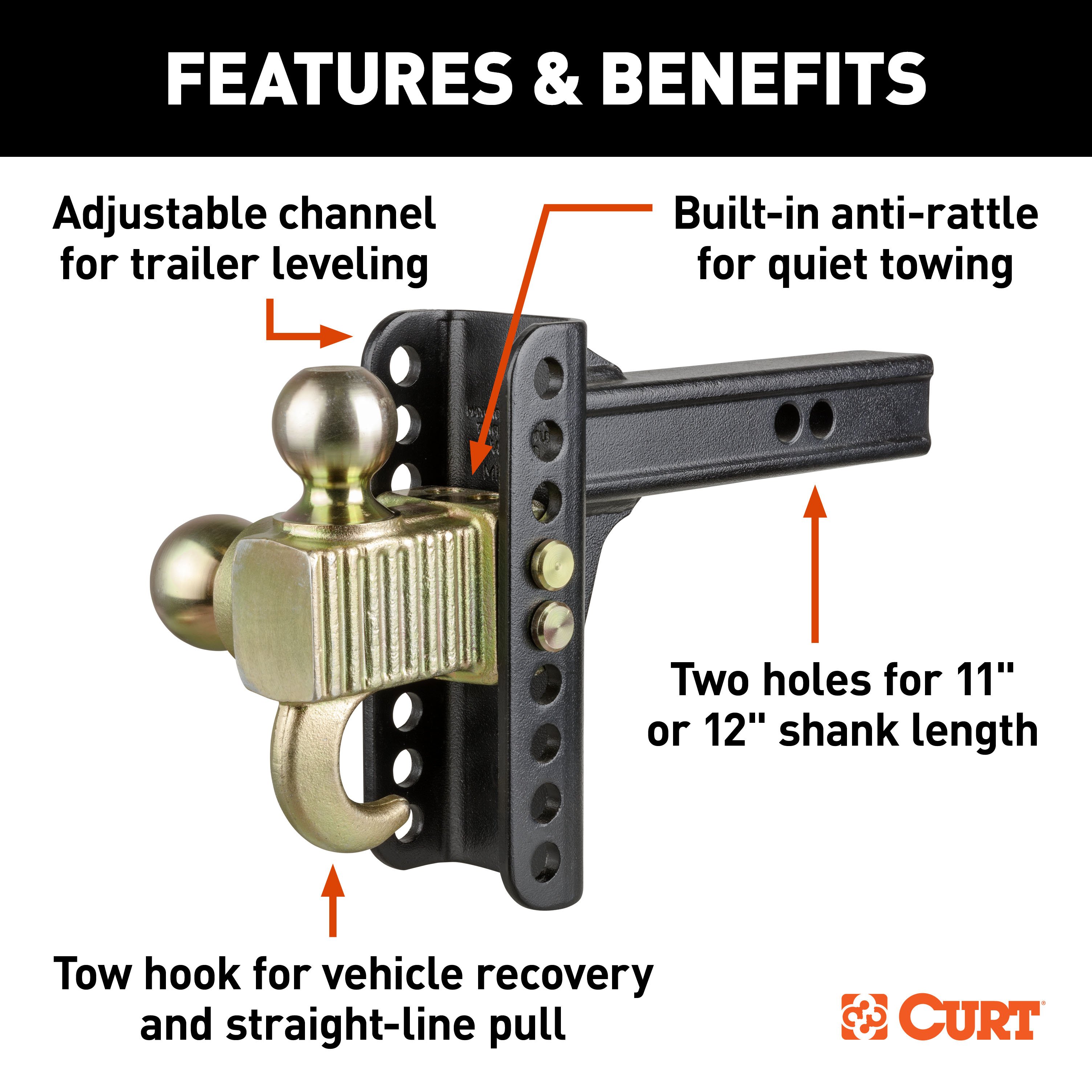

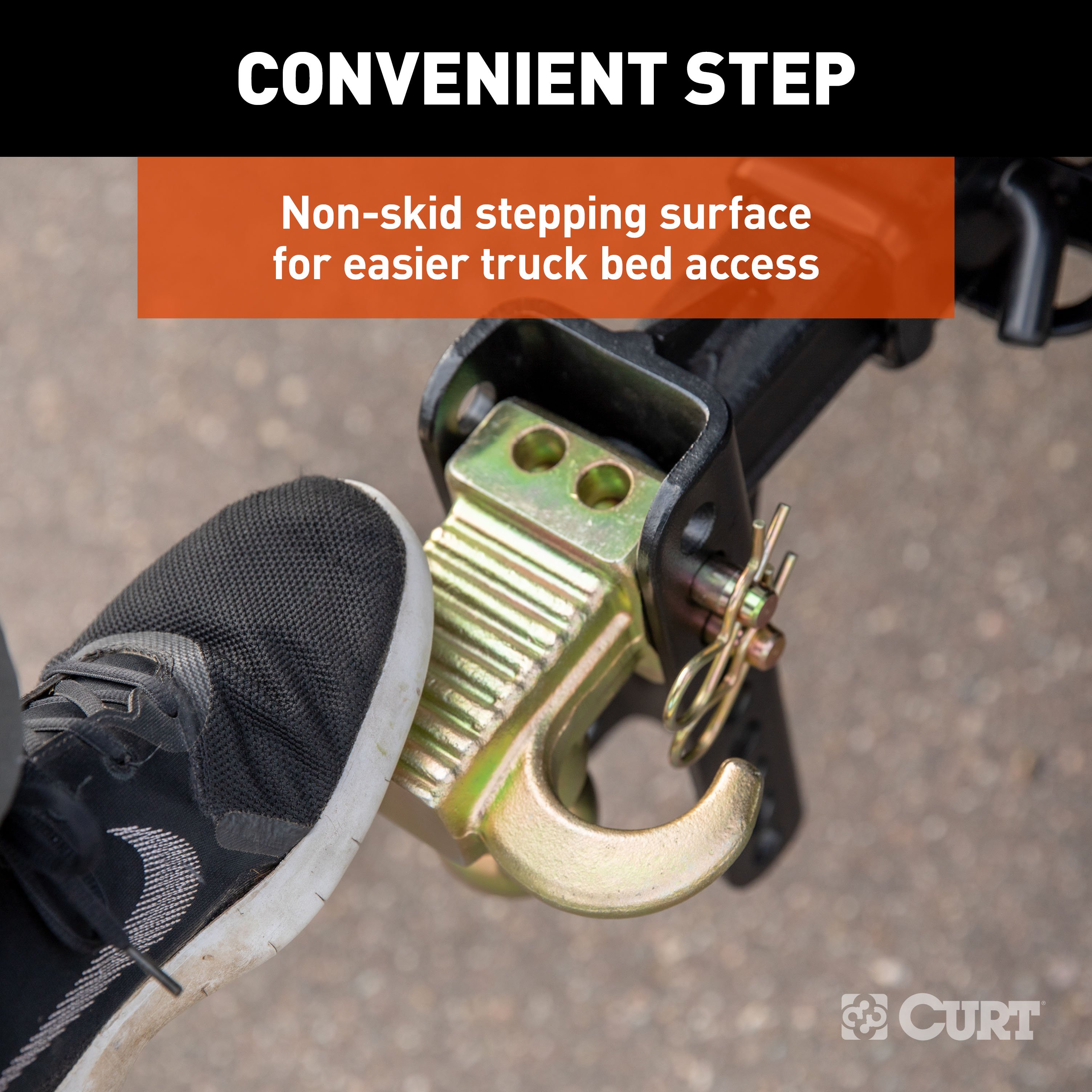

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable channel-style ball mount has a shank size of 2" x 2" and features a multipurpose head with two different trailer ball sizes to accommodate two different coupler sizes: 2" and 2-5/16". It also features a hitch step for easier truck bed access, as well as a tow hook for straight-line pull applications (max tow hook capacity is 10,000 lbs.; DO NOT EXCEED TRAILER HITCH CAPACITY). The head attaches to an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 5-1/4" rise or lowered to a maximum of 6" drop, allowing you to make your trailer completely level in any towing situation. The channel-style design and dual-pin mounting system also provide a built-in anti-rattle feature to eliminate obnoxious chucking noises. This CURT adjustable ball mount offers a gross trailer weight capacity of up to 10,000 lbs. for the 2" ball and 14,000 lbs. for the 2-5/16" ball. It allows you to tow a variety of heavyweight trailers, and it features two pin holes in the shank to be mounted at an 11" or 12" length. All CURT channel-style adjustable ball mounts are made with sturdy steel construction and come with our black carbide powder coat finish for long-lasting rust, scratch and UV resistance.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime

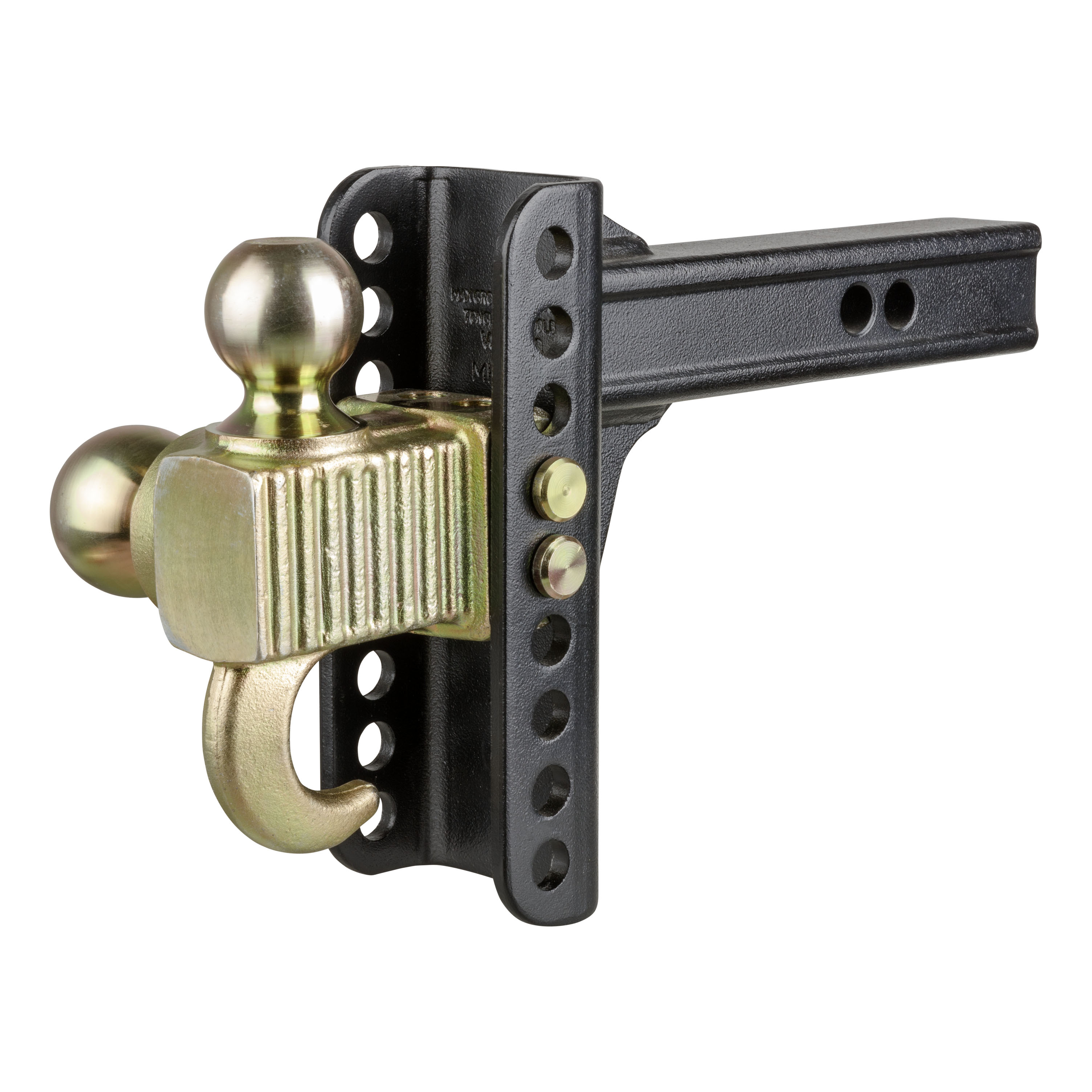

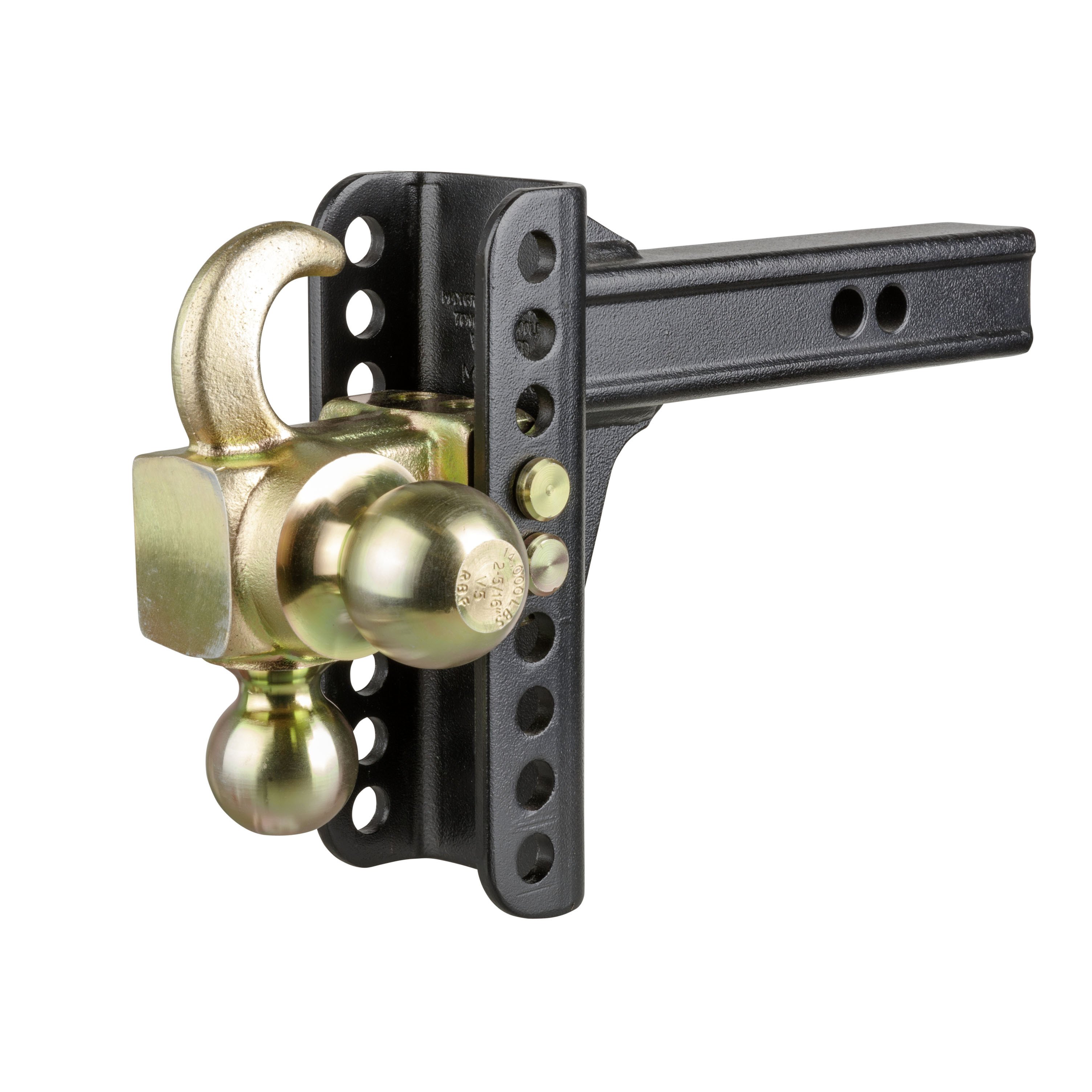

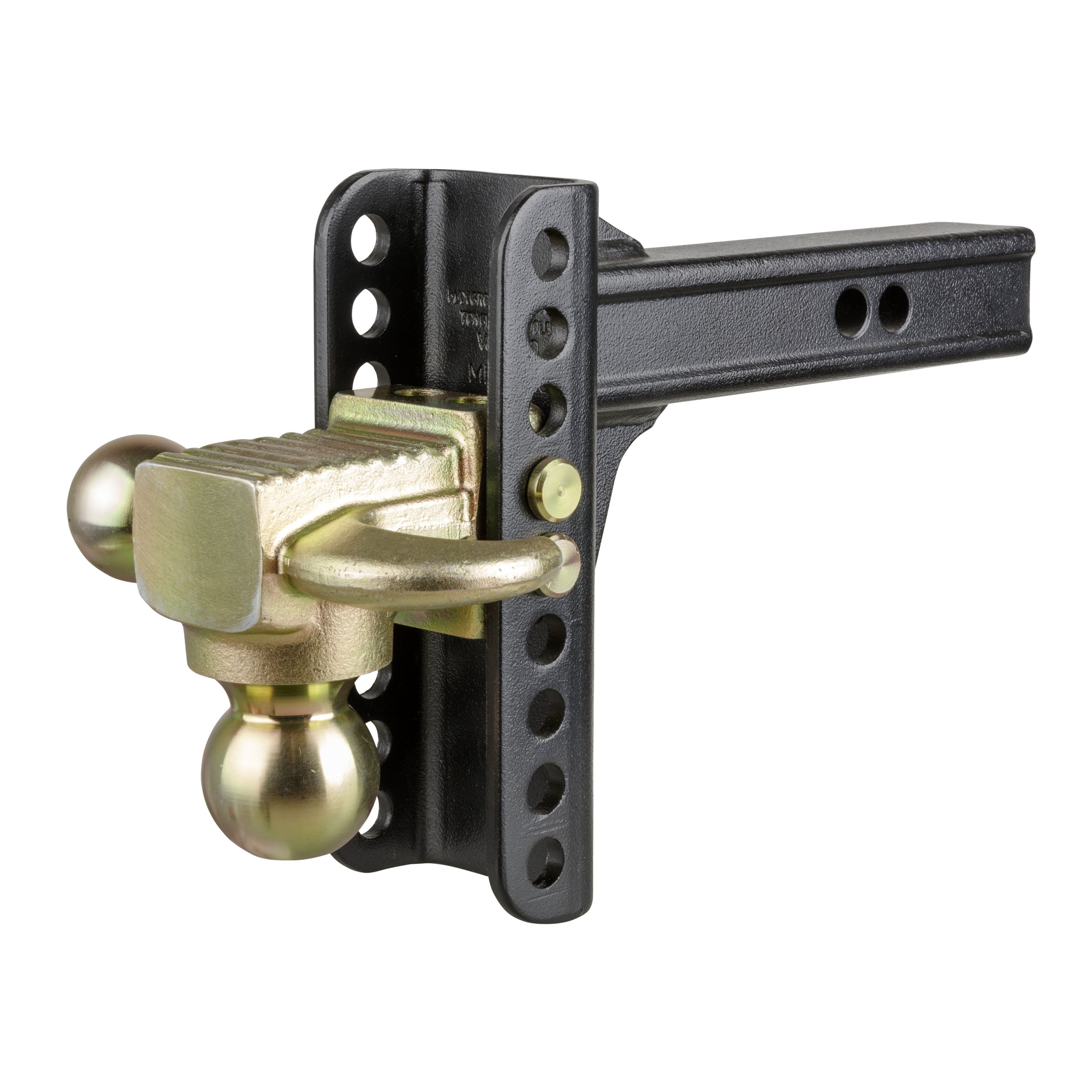

The CURT 45904 is a dual ball, hook, and step mount system that installs into a vehicle's trailer hitch receiver. It provides multiple towing and stepping options in one unit, with adjustable ball height to match your trailer coupler height. The system includes a channel mount, dual ball/hook/step assembly, pins, clips, and a hitch pin.
The CURT 45904 has a gross trailer weight (GTW) capacity of 10,000 lbs when used with a 2-inch ball.
The CURT 45904 has a gross trailer weight (GTW) capacity of 14,000 lbs when used with a 2-5/16-inch ball.

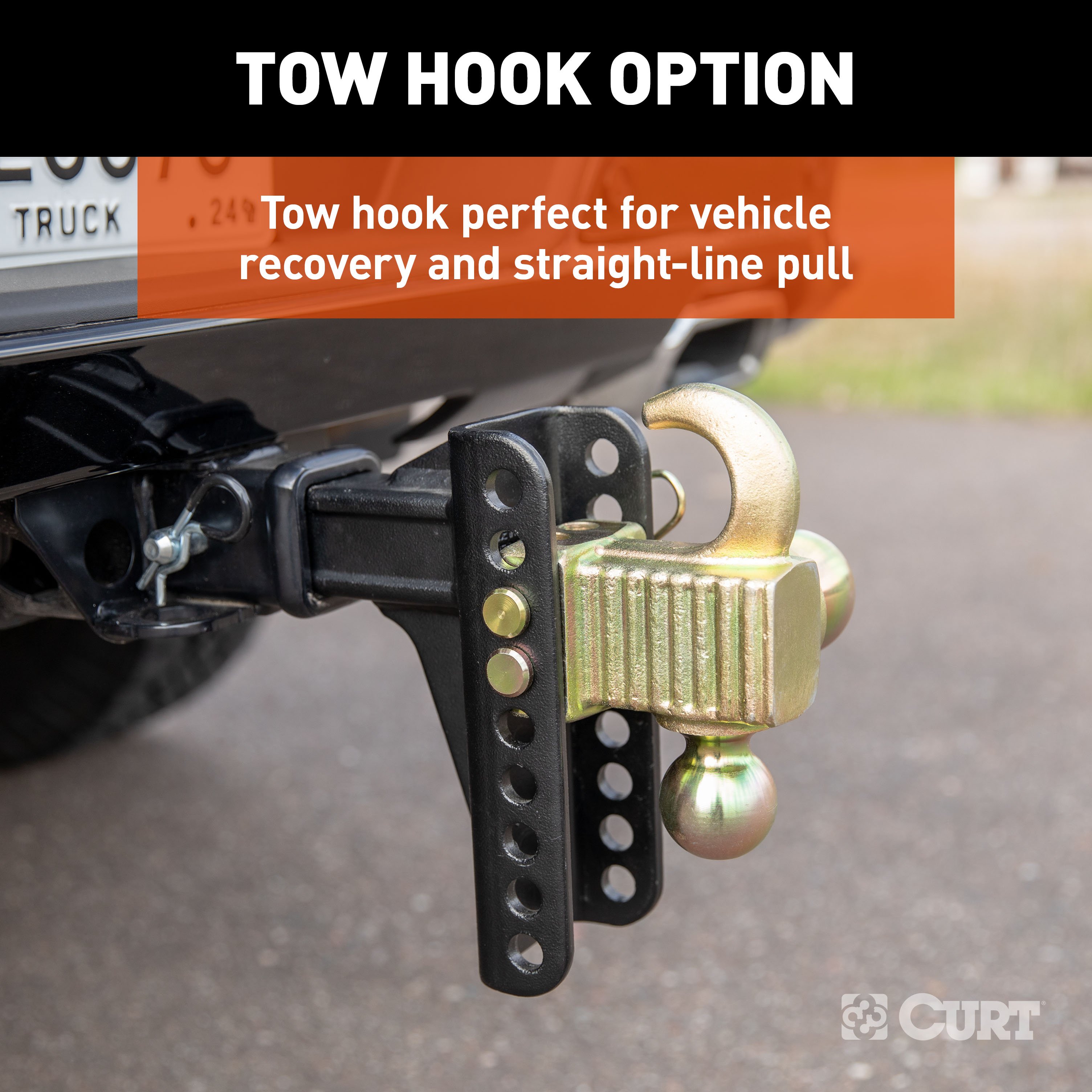

The CURT 45904 tow hook has a straight pull capacity of 10,000 lbs.
The CURT 45904 installs into any vehicle with a standard trailer hitch receiver. Verify your vehicle has a receiver hitch and confirm the towing capacity does not exceed your vehicle manufacturer's recommended limit. For specific vehicle fitment, contact CURT Product Support at 877.287.8634.
No tools are required to install the CURT 45904. The system uses the included hitch pin and clip for secure fastening.
The CURT 45904 includes: one channel mount, one dual ball/hook/step assembly, two channel pins, two channel clips, and one hitch pin with clip.

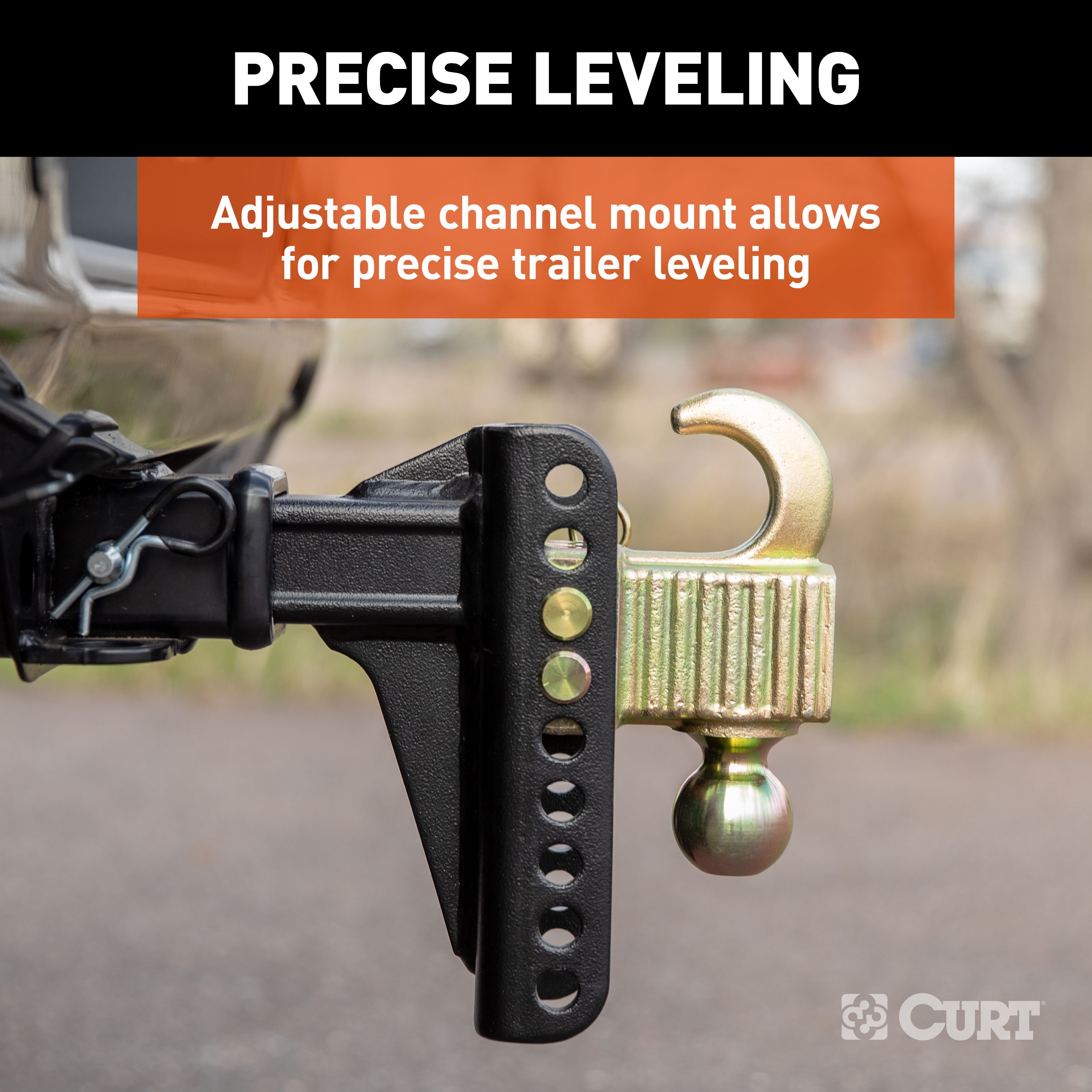

Level your trailer, then measure from the bottom of the trailer tongue to the ground. This measurement tells you which hole on the channel mount to use for the top pin of the dual-ball/hook/step assembly. The channel mount has multiple holes to accommodate different ball heights.
1. Insert the channel mount (#1) into your vehicle's trailer hitch receiver. 2. Secure it with the hitch pin and clip (#5). 3. Measure your trailer tongue height from the bottom to the ground when the trailer is level. 4. Find the hole on the channel mount closest to that measurement. 5. Insert the top pin of the dual-ball/hook/step (#2) into that hole. 6. Secure all pins (#3) with the included clips (#4).

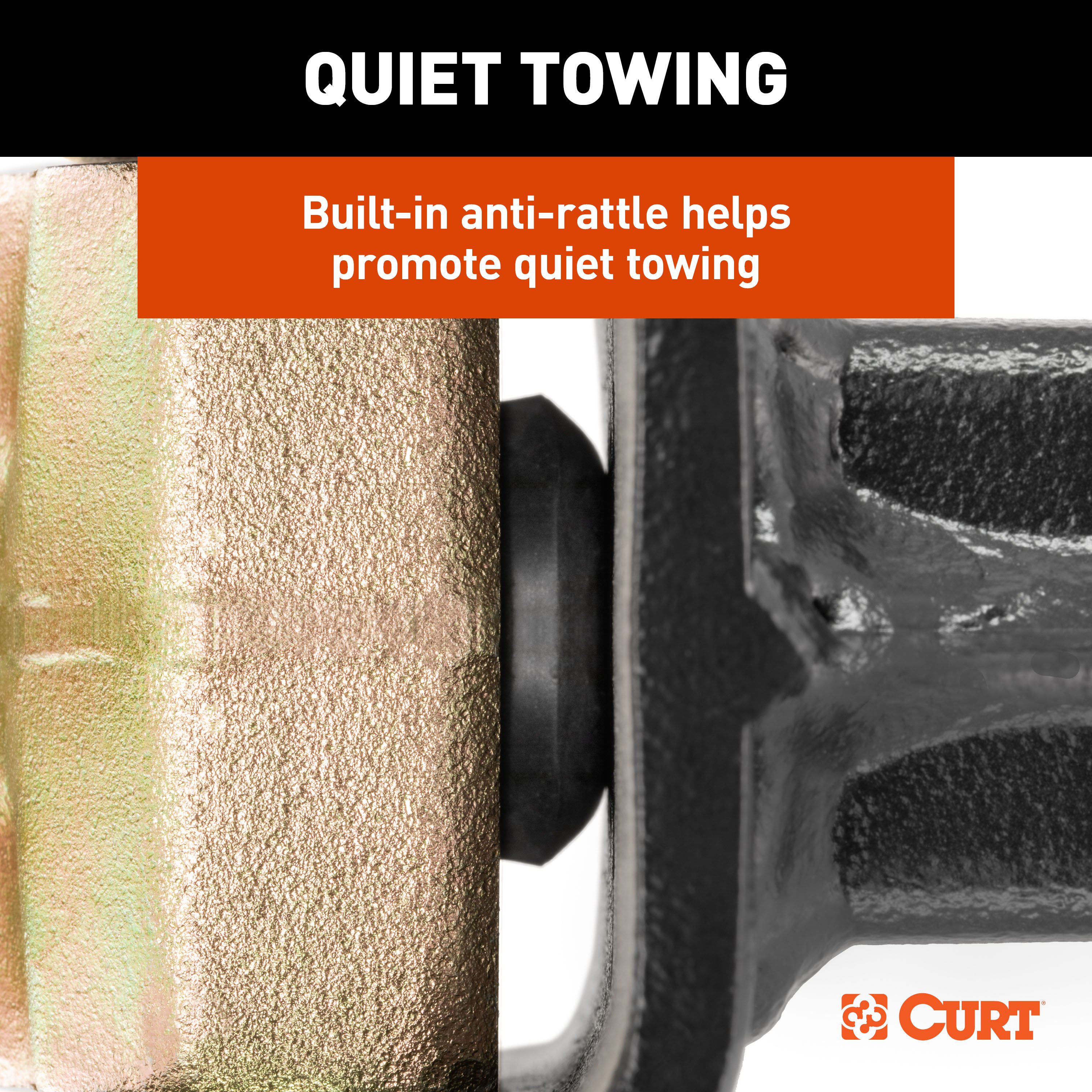

The channel mount has a built-in anti-rattle feature located on the back of the dual-ball/hook/step assembly. This feature keeps your towing system quiet during operation.
No. The provided pins are specifically engineered for this system. Use of any pin other than that of the mount system manufacturer could be a serious safety hazard and will void the warranty. If replacement pins are needed, they must be replaced with original factory mount pins (CURT# 45925).
No. Never hook up trailer safety chains to the mount system. Ensure the safety chains operate freely around the mount system and do not become entangled.
Never exceed the vehicle manufacturer's recommended towing capacity. The ratings of the CURT 45904 mount system (10,000 lbs for 2-inch ball, 14,000 lbs for 2-5/16-inch ball, or 10,000 lbs straight pull for the tow hook) represent the capability of the product only. You must never exceed the limits of the lowest rated component in your entire towing system, including your vehicle, hitch, ball, and trailer.
Read all instructions thoroughly before beginning installation. Verify your vehicle's towing capacity and ensure the CURT 45904 capacity does not exceed it. Confirm your vehicle has a standard trailer hitch receiver.
The CURT 45904 is rated as Easy to install. No tools are required, and installation involves inserting the channel mount into the receiver, measuring trailer height, and securing pins with clips.
Register your CURT 45904 purchase at warranty.curtgroup.com/surveys to take advantage of CURT Group's industry-leading warranties and provide feedback to help improve products.
Contact CURT Product Support at 877.287.8634 or visit CURTMFG.COM for assistance with the CURT 45904.
No drilling or vehicle modifications are required. The CURT 45904 installs directly into your existing trailer hitch receiver using the included hitch pin and clip.
| Part # | Description | Fits |
|---|---|---|
| 45910 | 2" channel shank, qty 1 | 45900, 45904, 45907 |
| 45911 | 2" channel shank, qty 1 | 45901 |
| 45917 | 2-5/16" channel shank, qty 1 | 45902, 45908 |
| 45912 | Dual-ball, qty 1 | 45900, 45902 |
| 45923 | Dual-ball, qty 1 | 45902, 45927 |
| 45924 | Dual-ball, hook and step, qty 1 | 45904 |
| 45919 | Ball and pintle hitch, qty 1 - 10,000 lbs. GTW - 2" ball |
All channel mounts |
| 45920 | Ball and pintle hitch, qty 1 - 13,000 lbs. GTW - 2-5/16" ball |
45907 |
| 45922 | Ball and pintle hitch, qty 1 - 20,000 lbs. GTW - 2-5/16" ball |
45908 |
| 45916 | Shank anti-rattle screw, qty 1 | Previous models |
| 45921 | Shank anti-rattle bumper, qty 1 | Previous models |
| 19275 | Attachment anti-rattle | All channel mounts |
| 45925 | Channel pins & clips, qty 2 | All channel mounts |
| Part # | Shank Size | 2" Ball GTW | 2-5/16" Ball GTW | Tow Hook Capacity | Ball Mount GTW | Max Drop | Max Rise | Length | Ball Finish |
|---|---|---|---|---|---|---|---|---|---|
| 45903 | 2" | 8,000 lbs. | 10,000 lbs. | -- | -- | 3-3/4" | 3-1/2" | 10" / 11" | Yellow zinc-plated |
| 45901 | 2" | -- | -- | 6,000 lbs. | -- | 6-3/4" | 5-1/4" | 11" / 12" | Yellow zinc-plated |
| 45900 | 2" | 10,000 lbs. | 14,000 lbs. | -- | -- | 6" | 5-1/4" | 11" / 12" | Yellow zinc-plated |
| 45902 | 2-1/2" | 10,000 lbs. | 20,000 lbs. | -- | -- | 6" | 5-1/4" | 11" / 12" | Yellow zinc-plated |
| 45904 | 2" | 10,000 lbs. | 14,000 lbs. | -- | 10,000 lbs. | 6" | 5-1/4" | 11" / 12" | Yellow zinc-plated |
| 45907 | 2" | -- | 13,000 lbs. | -- | -- | 6" | 5-1/4" | 11" / 12" | Chrome-plated |
| 45908 | 2-1/2" | -- | 20,000 lbs. | -- | -- | 6" | 5-1/4" | 11" / 12" | Chrome-plated |
| 45926 | 2" | 10,000 lbs. | -- | -- | -- | 10-1/8" | 9" | 11" / 12" | Yellow zinc-plated |
| 45927 | 2-1/2" | 10,000 lbs. | 20,000 lbs. | -- | -- | 10-3/8" | 8-7/8" | 11" / 12" | Yellow zinc-plated |
| 45928 | 3" | 10,000 lbs. | 21,000 lbs. | -- | -- | 10-5/8" | 8-5/8" | 11" / 12" | Yellow zinc-plated |
