Includes pins & clips
Patent# US8,033,563
Includes pins & clips
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Finish: BLACK POWDER COAT
Installation Time Exact (Minutes): 0

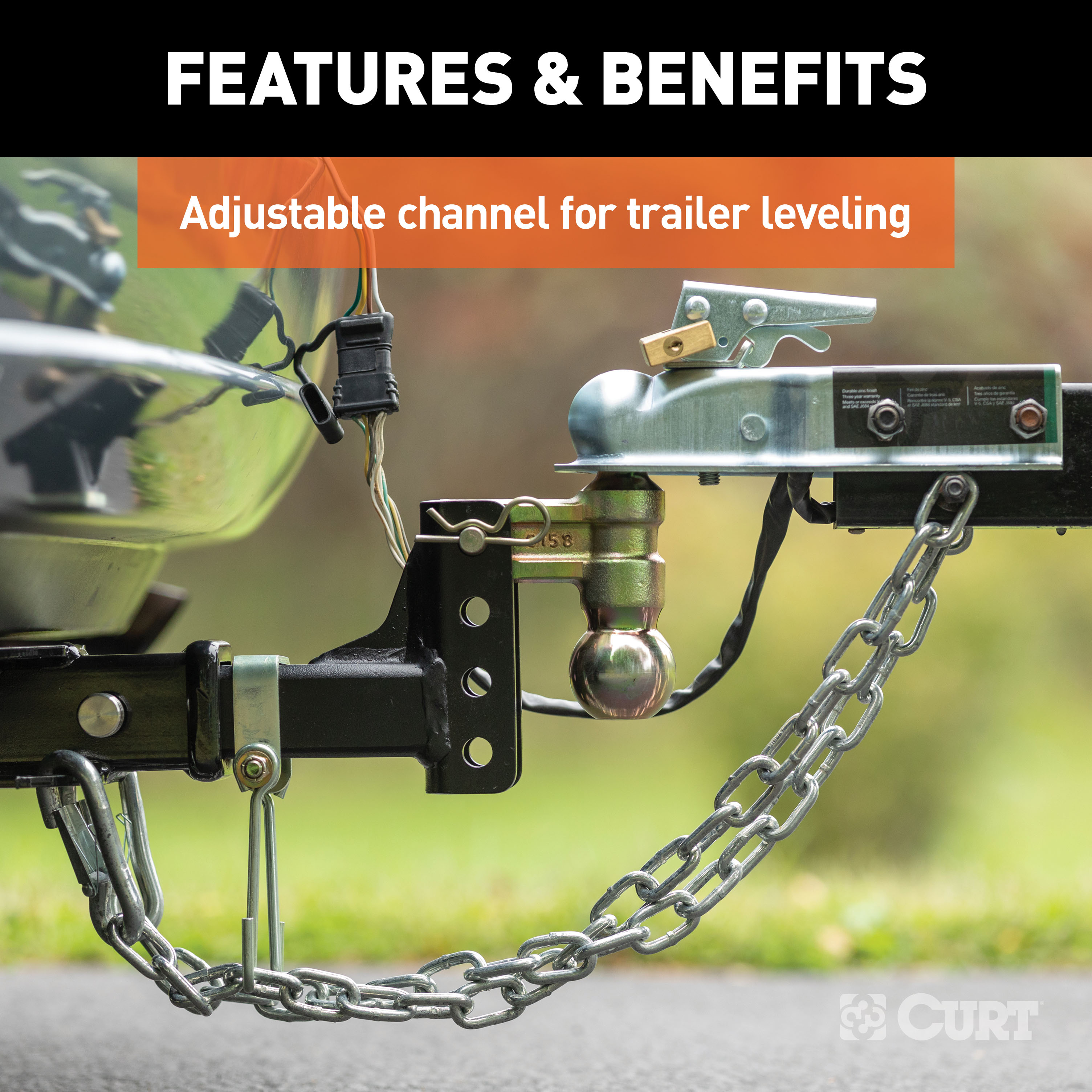

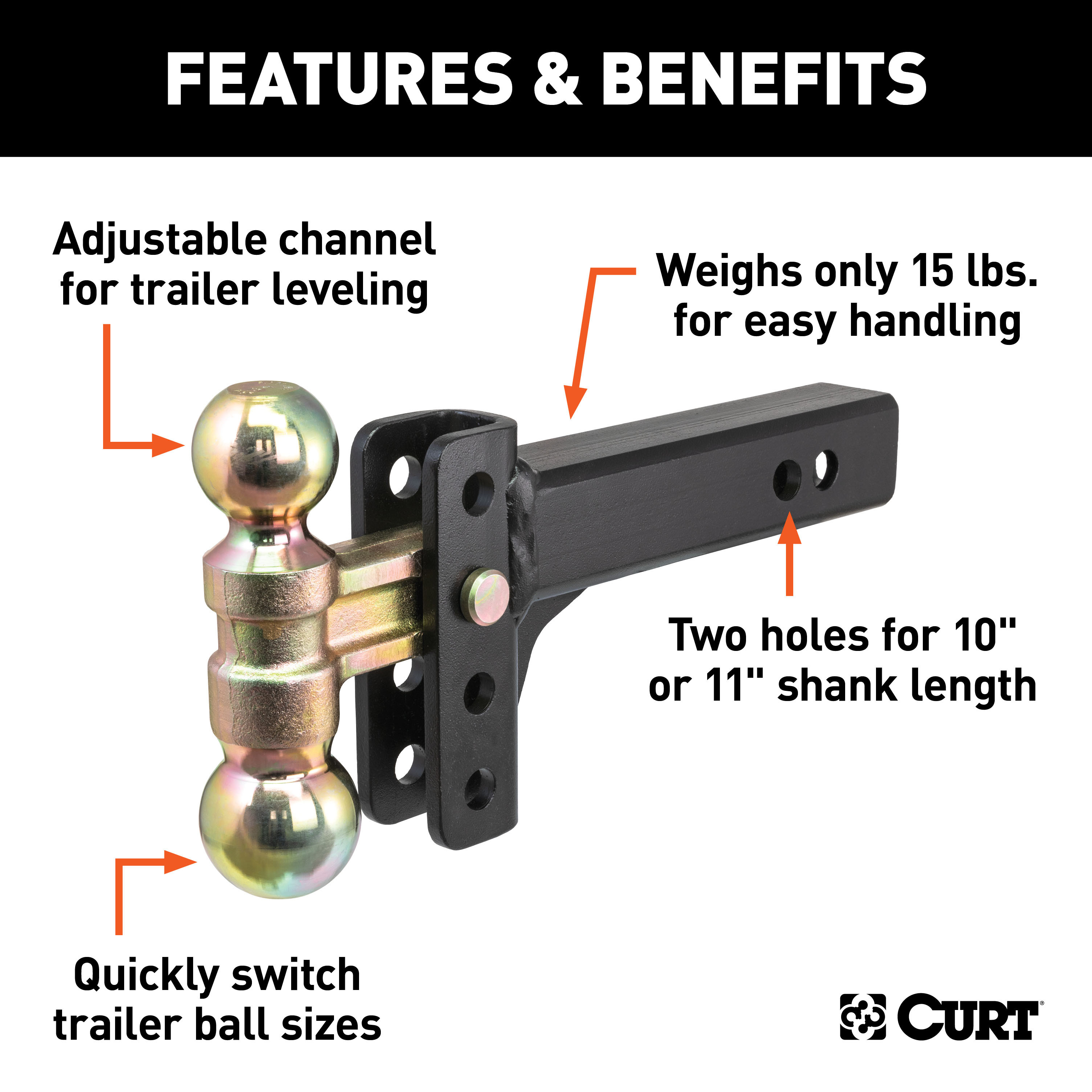

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. The CURT slim adjustable channel-style ball mount provides a weight capacity of up to 10,000 pounds and only weighs 15 pounds. It has a shank size of 2 inches x 2 inches and features two different trailer ball sizes to accommodate two different coupler sizes: 2-inch and 2-5/16-inch. It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 3-1/2-inch rise or lowered to a maximum of 3-3/4-inch drop, allowing you to make your trailer completely level in any towing situation. The CURT slim adjustable ballmount offers a gross trailer weight capacity of up to 8,000 pounds for the 2-inch ball and 10,000 pounds for the 2-5/16-inch ball. It allows you to tow a variety of trailers, and it features two pin holes in the shank to be mounted at an 10-inch or 11-inch length. All CURT channel-style adjustable hitches are made with sturdy steel construction and come with a black carbide powder coat finish for long-lasting rust, scratch and UV resistance.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products

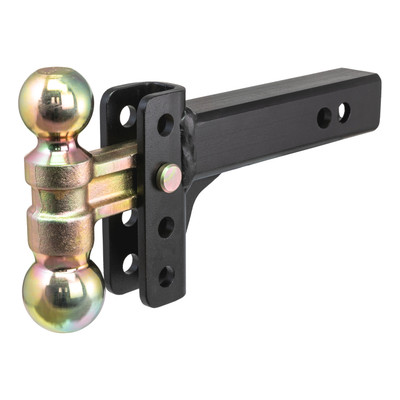

The CURT 45903 is a dual ball hitch mount that installs into your vehicle's trailer hitch receiver tube. It allows you to tow trailers using either a 2" ball (up to 8,000 lbs GTW) or a 2-5/16" ball (up to 10,000 lbs GTW), and the ball height is adjustable to match your trailer coupler height.
The CURT 45903 fits any vehicle with a standard trailer hitch receiver tube. The manual does not specify exclusions by vehicle make, model, year, cab style, bed length or drivetrain. Verify your vehicle has a receiver tube and confirm the hitch receiver size matches the mount. Contact CURT at 877-287-8634 or check curtmfg.com for vehicle-specific fitment confirmation.
The CURT 45903 has two weight capacities depending on the ball used: 8,000 lbs gross trailer weight (GTW) with a 2" ball, or 10,000 lbs GTW with a 2-5/16" ball. However, you must never exceed your vehicle manufacturer's recommended towing capacity. The product rating does not reflect the capacity of your vehicle's towing system—always use the lowest rated component in your towing setup.
The CURT 45903 includes: 1 channel mount, 1 dual ball, 1 channel pin, 1 channel clip, and 1 hitch pin & clip. All parts needed for basic installation are provided. A hitch lock is sold separately if you want additional security.
Installation has two steps: (1) Insert the adjustable channel mount into your vehicle's trailer hitch receiver tube and secure it with the provided hitch pin & clip (or hitch lock, sold separately). (2) Determine the tow height needed, raise or lower the dual ball to that height, insert the provided channel pin through the dual ball and channel mount, and secure the pin with the provided channel clip. The manual rates this as an Easy installation.
Raise or lower the dual ball to your desired tow height. Once positioned, insert the provided channel pin through the dual ball and the adjustable channel mount, then secure the pin with the provided channel clip. The ball height is adjustable to match your trailer coupler height.
No. You must use only the pin provided by CURT. The provided pin is specifically engineered for this system. Using any other pin could be a serious safety hazard and will void the warranty. If a replacement pin is needed, it must be replaced with an original factory mount pin from CURT.
Never hook trailer safety chains directly to the mount system. Instead, ensure the safety chains operate freely around the mount system and do not become entangled with it. The chains must be able to move independently.
Up to 8,000 lbs GTW with a 2" ball or 10,000 lbs GTW with a 2-5/16" ball. Never exceed your vehicle manufacturer's towing capacity.
No. Use only the pin provided by CURT. Using any other pin is a serious safety hazard and voids the warranty.
| Part # | Shank Size | 2" Ball GTW | 2-5/16" Ball GTW | Tow Hook Capacity | Ball Mount GTW | Max Drop | Max Rise | Length | Ball Finish |
|---|---|---|---|---|---|---|---|---|---|

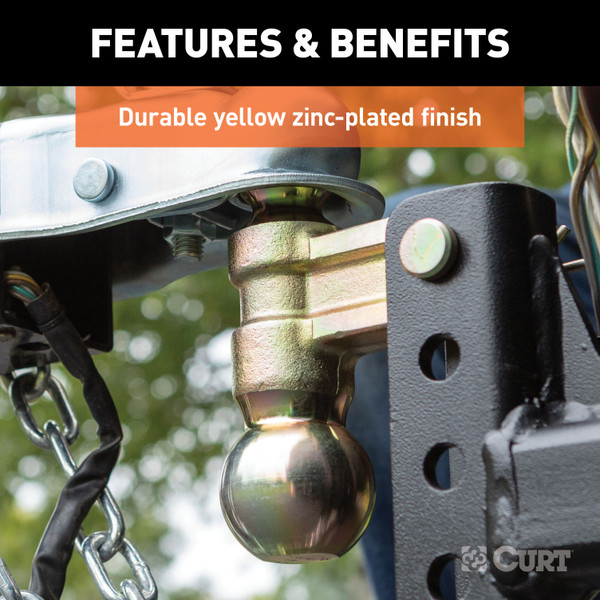

| 45903 | 2" | 8,000 lbs. | 10,000 lbs. | -- | -- | 3-3/4" | 3-1/2" | 10" / 11" | Yellow zinc-plated |
| 45901 | 2" | -- | -- | 6,000 lbs. | -- | 6-3/4" | 5-1/4" | 11" / 12" | Yellow zinc-plated |
| 45900 | 2" | 10,000 lbs. | 14,000 lbs. | -- | -- | 6" | 5-1/4" | 11" / 12" | Yellow zinc-plated |
| 45902 | 2-1/2" | 10,000 lbs. | 20,000 lbs. | -- | -- | 6" | 5-1/4" | 11" / 12" | Yellow zinc-plated |
| 45904 | 2" | 10,000 lbs. | 14,000 lbs. | -- | 10,000 lbs. | 6" | 5-1/4" | 11" / 12" | Yellow zinc-plated |
| 45907 | 2" | -- | 13,000 lbs. | -- | -- | 6" | 5-1/4" | 11" / 12" | Chrome-plated |
| 45908 | 2-1/2" | -- | 20,000 lbs. | -- | -- | 6" | 5-1/4" | 11" / 12" | Chrome-plated |
| 45926 | 2" | 10,000 lbs. | -- | -- | -- | 10-1/8" | 9" | 11" / 12" | Yellow zinc-plated |
| 45927 | 2-1/2" | 10,000 lbs. | 20,000 lbs. | -- | -- | 10-3/8" | 8-7/8" | 11" / 12" | Yellow zinc-plated |
| 45928 | 3" | 10,000 lbs. | 21,000 lbs. | -- | -- | 10-5/8" | 8-5/8" | 11" / 12" | Yellow zinc-plated |
