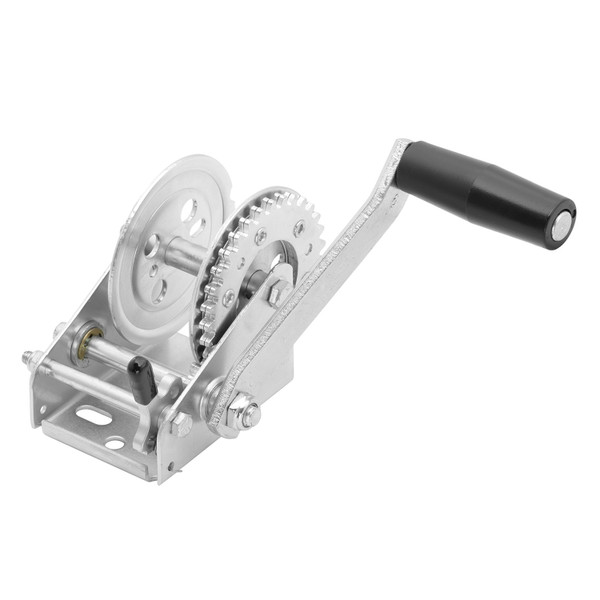

Fulton Trailer Winch, Single-Speed, 900 lbs. Capacity, StrapFultonOriginal price was $62.50. Current price is $52.30.Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Fulton
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 11 - Fri, Aug 14
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Fulton single speed winches are designed to meet your toughest pulling demands. Featuring solid drum gear construction, factory-lubricated drive systems, and industry-leading Z-MAX 600 high performance zinc finish.
| BRAND: | FULTON |
| PART NUMBER: | 142002 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 5.075 LBS |
| CAPACITY: | 900 LBS. |
| UNIVERSAL OR SPECIFIC FIT: | UNIVERSAL |
| TYPE: | SINGLE SPEED |
| WATERPROOF: | YES |
| HOOK INCLUDED: | NO |
| CABLE LENGTH: | 15 FT. (NOT INCLUDED) |
| RATED LINE PULL: | 900 LBS. |
| GEAR MATERIAL: | STEEL |
| MATERIAL: | STEEL |
| FREE SPOOLING: | YES |
| HARDWARE INCLUDED: | YES |
| TREE SAVER: | NO |
| FRAME MATERIAL: | STEEL |
| COLOR: | SILVER |
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-94945 Years
Cequent trailer winches are available in capacities ranging from 900 lbs to 3700 lbs. Specific capacity depends on the model. Always refer to the stamped markings or decals on your winch to determine its rated capacity. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
No. Only winches with a hub diameter of 1 3/4" can accommodate steel cable. Winches designed for steel cable have a larger drum hub to reduce bending fatigue and extend cable life. Check the Winch Information Chart to confirm your model supports steel cable before purchasing or using steel cable. If your winch is not listed as compatible, use rope or strap instead.
Cequent trailer winches accept three types of line: rope, strap, or steel cable. Not all models support all types. Rope and strap are available on most models. Steel cable is only available on winches with a 1 3/4" hub diameter. Consult the Winch Information Chart in the manual to confirm which line types your specific model supports.
Three 3/8" diameter grade-5 bolts are required to mount the winch. Mounting bolts vary in length depending on your application, so verify the correct length for your installation. The bolts are not supplied with the winch. The mounting surface must be equal to or greater than the footprint of the winch frame, and the winch stand must be capable of supporting at least five times the rated capacity of the winch.
Yes. The winch stand must be capable of supporting at least five times the rated capacity of the winch. For example, a 1000 lb winch requires a stand rated for at least 5000 lbs. The mounting surface must be equal to or greater than the footprint of the winch frame. Verify your stand meets these requirements before installation.
Attaching a rope requires no bolts, nuts, or clamps. The rope must weave through the drum outer wall and be secured beneath itself, as shown in the manual illustration. Always maintain a minimum of three complete wraps of rope on the drum at all times during use.
Winches designed for strap have holes in the drums to accommodate a strap cross bolt. Use a grade 5 bolt of the largest possible diameter (see the Winch Information Chart for your model's bolt size). Tighten the locknut just until end play in the bolt is taken up—do not over-tighten, as this can deform the drum. If your winch has a strap anchor included, pass the strap loop under the cross bolt, insert the strap anchor in the strap loop, then pull tight. Always maintain a minimum of three complete wraps or layers of strap on the drum.
Pass the cable from the inside of the drum through one of the dimpled holes in the outer plate. Loop the cable around the drum bearing, under itself, and leave 1" of cable extending past the clamp location. Tighten the clamp nuts to approximately 2 ft-lbs. Neatly wrap the cable to reduce the chance of kinking or fraying. Always maintain a minimum of three complete wraps of cable on the drum.
Assemble the handle onto the flatted input shaft end. Tighten the 1/2" - 13 locknut against the handle and torque to 22-25 ft-lbs. Do not over-torque the locknut.
Torque the 1/2" - 13 handle locknut to 22-25 ft-lbs. Do not over-torque.
Torque the three 3/8" diameter grade-5 mounting bolts to 28-30 ft-lbs. After installation, check that the winch is secure to the mounting structure.
On single-speed winches, torque the drum locknut to 9-10 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and prevent the drum from turning.
On two-speed winches, torque the drum locknut to 24 ft-lbs. Do not over-tighten, as this may crush the spacer between the frame and prevent the drum from turning.
Tighten the steel cable clamp nuts to approximately 2 ft-lbs.
Only if attaching a strap without a strap anchor to a plastic-covered winch. In that case, remove the drum bolt and gently separate the plastic cover to allow the winch drum to be removed. Install the strap according to the instructions, then re-install the winch drum as it was before. If your winch has a strap anchor included, the plastic cover does not need to be removed.
Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload.
A loud clicking sound from the ratchet must be heard when lifting the load. If a loud clicking sound is not heard, do not use the winch and replace the ratchet components immediately. This indicates a safety issue that must be corrected before further use.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs should be used for this purpose.
No. Do not use winch to move humans.
Before each use, perform these checks: (1) Inspect rope, strap, or cable and replace if damaged. (2) Check mounting hardware for proper tightness and tighten if necessary. (3) Always inspect the cable or strap and its attachment to make sure they are not damaged. Never use them if they are worn, kinked, or frayed.
Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth. Periodically check mounting hardware for proper torque and tighten if necessary. Always replace bent, broken, or worn parts before using the product.
Always maintain a minimum of three complete wraps of rope, strap, or cable on the drum. For strap, maintain at least three layers on the drum. Never allow the line to completely unwind from the drum.
Assure there is adequate safety factor of at least 3 times the maximum load for all components used. This means if you are lifting a 1000 lb load, all components (winch, cable, strap, anchor points, etc.) should be rated for at least 3000 lbs.
No. Never leave a weight supported from the winch while the winch is unattended, as another person may attempt to operate the winch, thereby creating an unsafe condition.
Never release the crank handle unless the ratchet pawl is fully engaged and the load is supported. Always verify the ratchet pawl is holding the load before letting go of the handle.
Never operate with slippery, wet, or oily hands and always maintain a firm grip on the winch handle. Do not attempt to stop a winch by grabbing the handle while in motion. Never stand alongside the winch cable, strap, or rope or guide the cable, strap, or rope with your hands.
Operator and bystanders should never position any part of body under any portion of this product or the load being supported. Do not allow children to play on or around this product or the load being supported.
Cequent Performance Products warrants to the original consumer purchaser only that the product will be free from material defects in both material and workmanship for a period of five years, ordinary wear and tear excepted, provided that installation and use of the product is in accordance with product instructions. This warranty does not cover normal wear and tear, damage through abuse, neglect, misuse, accident, misapplication, overloading, improper installation, improper maintenance and repair, or product alteration by anyone other than Cequent. To make a warranty claim, contact Cequent at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290.
Use only Cequent Performance Products' parts or parts of equal quality for repair. Replacement parts are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290. Please specify the product model number when ordering.
Only if it has a 1 3/4" hub diameter. Check the Winch Information Chart in your manual or contact Cequent at 1-800-632-3290 to confirm your model's compatibility.
Three 3/8" diameter grade-5 bolts, torqued to 28-30 ft-lbs. Bolt length varies by application. Bolts are not supplied with the winch.
Torque the 1/2" - 13 locknut to 22-25 ft-lbs. Do not over-torque.
Maximum 45 lbs of handle force. If you cannot crank with one hand, you are overloading the winch.
Always maintain at least three complete wraps of rope or cable, or three layers of strap, on the drum at all times.
Apply #30 weight engine oil to bushings and ratchet pawl pivots. Maintain chassis grease on gear teeth. Periodically check and retorque mounting hardware. Replace bent, broken, or worn parts before use.
Inspect rope, strap, or cable for damage. Check mounting hardware tightness. Verify cable/strap attachment is not worn, kinked, or frayed.
A loud clicking sound from the ratchet must be heard when lifting the load. If a loud clicking sound is not heard, this indicates the ratchet pawl is not functioning properly. Do not use the winch. Replace the ratchet components immediately before attempting any further lifting operations.
Excessive force in turning the winch handle may indicate overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch. Reduce the load or verify that the load does not exceed the winch's rated capacity.
If the drum locknut is over-tightened, it may crush the spacer between the frame and prevent the drum from turning. Loosen the locknut slightly. The correct torque is 9-10 ft-lbs for single-speed winches and 24 ft-lbs for two-speed winches. Tighten only until end play in the bolt is taken up, then stop.
Ann
The staff was able to quickly assist me with locating the correct product I needed. Shipping was really fast. Item arrived in 2 days. Will be using TowUniverse again!!
May 22, 2023
| Part Number | Capacity (lbs.) | Handle Length (in.) | Max Mechanical Advance* | Rope (ft. x in.) | Strap (ft. x in.) | Recommended Strap Bolt Sizes (in.) | Strap Included | Finish |
|---|---|---|---|---|---|---|---|---|
| 142001 | 900 | 7.00 | 39:1 | 36 x 1/4 | 15 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142002 | 900 | 7.00 | 39:1 | 36 x 1/4 | 15 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142003 | 900 | 7.00 | 39:1 | 36 x 1/4 | 15 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142006 | 900 | 7.00 | 39:1 | 36 x 1/4 | 15 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142007 | 900 | 7.00 | 39:1 | 36 x 1/4 | 15 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142026 | 1,100 | 7.00 | 43:1 | 30 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Glossy Black |
| 142101 | 1,100 | 8.00 | 43:1 | 30 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142102 | 1,100 | 8.00 | 43:1 | 30 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142103 | 1,300 | 8.00 | 49:1 | 30 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142104 | 1,300 | 8.00 | 49:1 | 30 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142200 | 1,500 | 8.00 | 49:1 | 20 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142201 | 1,500 | 8.00 | 49:1 | 20 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142203 | 1,500 | 8.00 | 49:1 | 20 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142204 | 1,500 | 8.00 | 49:1 | 20 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142208 | 1,500 | 8.00 | 49:1 | 20 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Glossy Black |
| 142226 | 1,800 | 8.00 | 62:1 | 20 x 7/16 | 20 x 2 | 3/8 x 2-3/4 Grade 5 | No | Clear Zinc |
| 142300 | 1,800 | 8.00 | 62:1 | 20 x 7/16 | 20 x 2 | 3/8 x 2-3/4 Grade 5 | No | Clear Zinc |
| 142303 | 1,800 | 8.00 | 62:1 | 20 x 7/16 | 20 x 2 | 3/8 x 2-3/4 Grade 5 | No | Clear Zinc |
| 142306 | 1,800 | 8.00 | 62:1 | 20 x 7/16 | 20 x 2 | 3/8 x 2-3/4 Grade 5 | No | Clear Zinc |
| 142326 | 1,800 | 8.00 | 62:1 | 20 x 7/16 | 20 x 2 | 3/8 x 2-3/4 Grade 5 | No | Clear Zinc |
