Fulton Trailer Winch, Single-Speed, 900 lbs. Capacity, No Strap FL142002Fulton$69.01Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Fulton
On Sale Today
Original price was $62.50. Current price is $52.30.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
You save $10.20 (16%)
Free Shipping
Ships free on all orders
Authorized DealerFREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 11 - Fri, Aug 14
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
We offer a full line of Fulton single speed
| BRAND: | FULTON |
| PART NUMBER: | 142007 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 6.125 LBS |
| CAPACITY: | 900 LBS. |
| UNIVERSAL OR SPECIFIC FIT: | UNIVERSAL |
| TYPE: | SINGLE SPEED |
| RATED LINE PULL: | 900 LBS. |
| GEAR MATERIAL: | STEEL |
| MATERIAL: | STEEL |
| FREE SPOOLING: | YES |
| HARDWARE INCLUDED: | YES |
| TREE SAVER: | NO |
| FRAME MATERIAL: | STEEL |
| COLOR: | SILVER |
Fulton has produced marine and utility trailer hardware for more than a century, and its jacks, winches and couplers are a standard for light and medium-duty trailering. The XLT and F2 series cover swivel and fixed jacks, hand and powered winches from 1,500 to 3,200 pounds, and couplers built to keep working in wet, salty conditions.
With more than a hundred years of production behind it, Fulton has become the reference point for light and medium-duty trailer hardware, particularly on the marine side. That environment is the toughest test a trailer component faces. A boat trailer is reversed into fresh or salt water on every launch and left to sit wet, which finds every weakness in plating, sealing and material choice. Fulton's stated position is that the brand performs best when the weather is at its worst, and its product engineering reflects that. It sits within the Horizon Global towing group alongside Reese, Draw-Tite, Bulldog, Tekonsha and Wesbar.
Marine and utility jacks anchor the line. The XLT Series marine jack uses a bolt-through swivel mount built from three-dimensionally formed heavy-gauge steel stampings with a proprietary bushing material, a combination chosen to minimise deflection under tongue load while keeping the swivel action working after years of exposure. The F2 Series takes corrosion resistance further as the industry's only extruded aluminium marine jack with an anodised finish, which removes the rust problem at its source rather than coating over it. The wider trailer jack range covers topwind, sidewind and drop-leg configurations.
Trailer winches pull boats onto bunks and rollers. XLT Series winches use efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings and a Comfort Grip handle that makes the last few turns under load bearable, in 1,500 and 1,800 pound capacities. F2 Series winches use an enclosed frame for a cleaner look and added protection, in 1,600, 2,000 and 3,200 pound models, including two-speed options that trade line speed for cranking effort.
Couplers complete the range, including A-frame couplers matched to common tongue sizes and load ratings, serving boat owners, utility trailer users and trailer manufacturers.
Experts available to answer your questions
Call 888-634-94945 Years
Cequent trailer winches are available in single-speed and two-speed models with rated capacities from 900 lbs to 3700 lbs. Refer to the Winch Information Chart in the manual to identify your specific model's capacity, or check the stamped markings or decals on the product itself. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
Yes. This winch is designed for manual operation only, and the load rating is based on an intermittent duty cycle. The winch requires a maximum of 45 lbs of handle force to pull its rated load. If you cannot crank the winch with one hand, you are potentially overloading it.
No. Only winches with a hub diameter of 1 3/4" can accommodate steel cable. Winches designed for steel cable have a larger drum hub to reduce the bending fatigue of the cable and extend cable life. Check the Winch Information Chart to confirm your model supports steel cable, or contact Cequent Performance Products at 1-800-632-3290.
Three options are available: rope (textile), strap, or steel cable. Not all models support all three. Rope requires no bolts, nuts, or clamps and is woven through the drum outer wall and secured beneath itself. Strap uses a grade-5 cross bolt through holes in the drum. Steel cable is only available on winches with a 1 3/4" hub diameter and passes through dimpled holes in the outer plate. Consult the Winch Information Chart to confirm which options your model supports.
Three 3/8" diameter grade-5 bolts are required, torqued to 28-30 ft-lbs. Mounting bolts vary in length for each application. Mounting hardware is not supplied with the winch; you must provide it. The winch stand must be capable of supporting at least five times the rated capacity of the winch. The mounting surface must be equal to or greater than the footprint of the winch frame.
The mounting surface must be equal to or greater than the footprint of the winch frame. Additionally, the winch stand must be capable of supporting at least five times the rated capacity of the winch.
Attaching a rope requires no bolts, nuts, or clamps. The rope must weave through the drum outer wall and be secured beneath itself, as shown in the manual illustration. Always maintain a minimum of three complete wraps of rope on the drum.

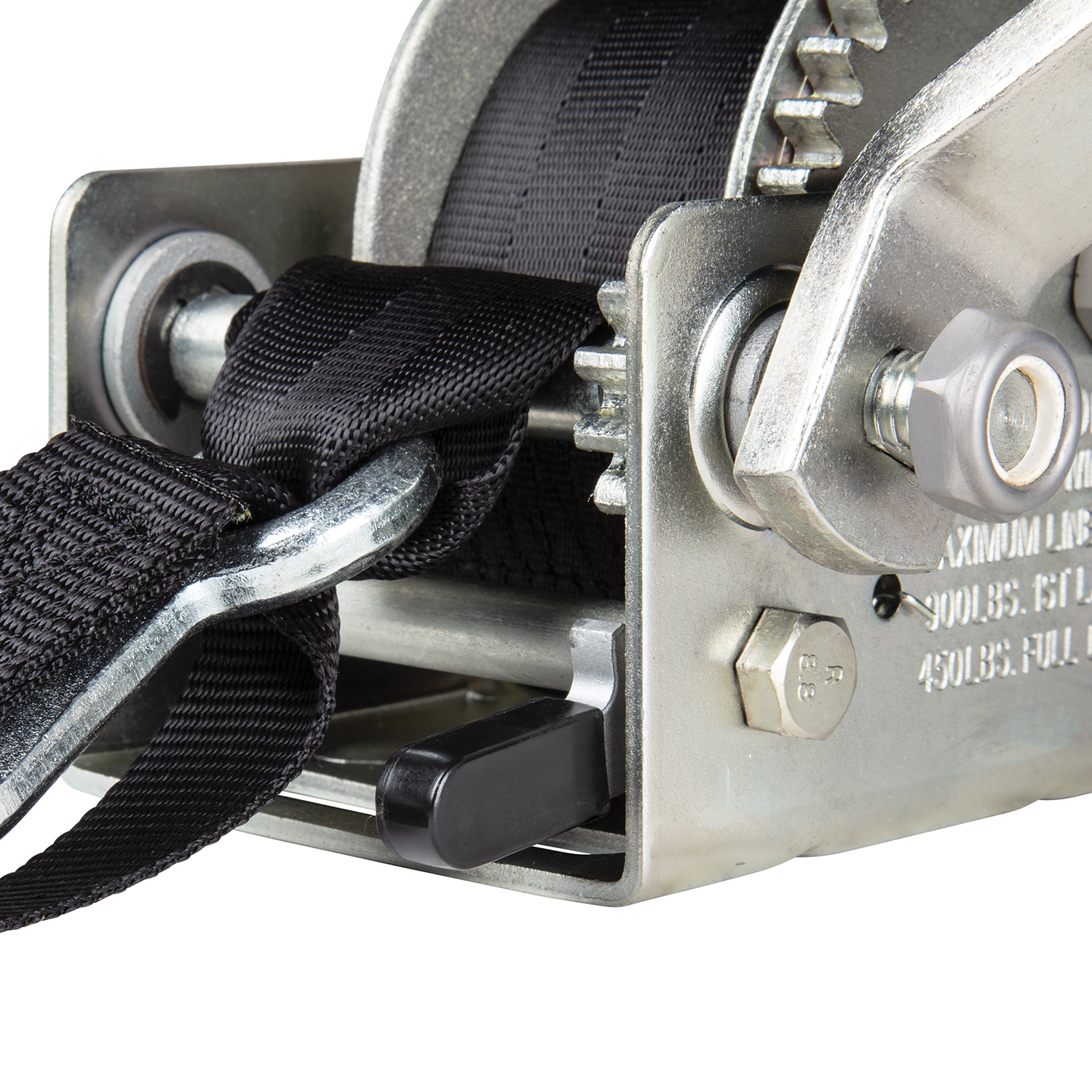

Winches designed for a strap have holes in the drums to accommodate a strap cross bolt. Use a grade-5 bolt of the largest possible diameter (see the Winch Information Chart for your model's bolt size). Tighten the locknut just to where end play in the bolt is taken up; over-tightening can deform the drum. For winches with a strap anchor included, pass the strap loop under the cross bolt, insert the strap anchor in the strap loop, then pull tight. If attaching strap without a strap anchor to a plastic-covered winch, remove the drum bolt and gently separate the plastic cover to allow the winch drum to be removed, install the strap, and re-install the drum as it was before.
Pass the cable from the inside of the drum through one of the dimpled holes in the outer plate. Loop the cable around the drum bearing, under itself, and leave 1" of cable extending past the clamp location. Tighten the clamp nuts to approximately 2 ft-lbs. Neatly wrapping the cable is necessary to reduce the chance of kinking or fraying.

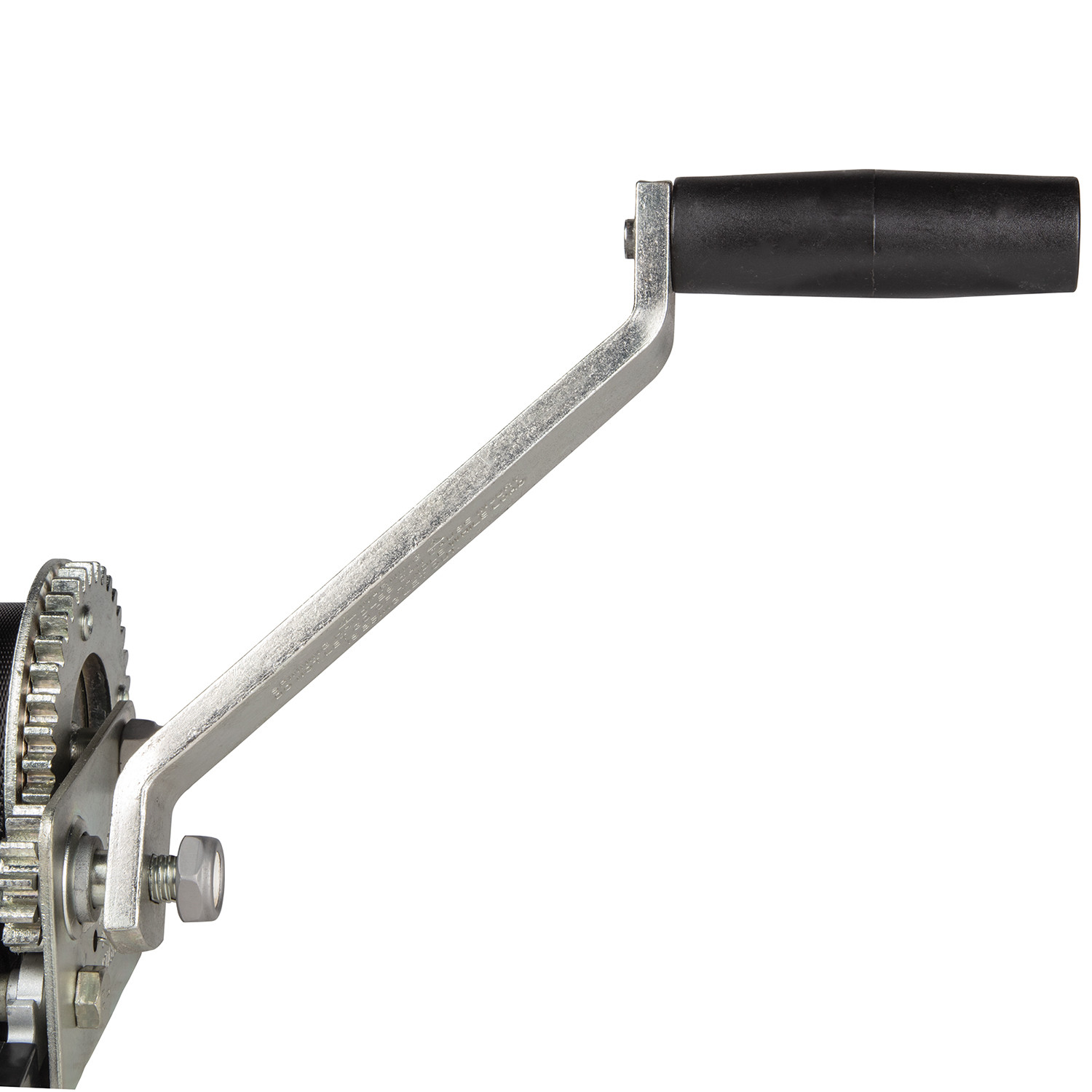

Assemble the handle onto the flatted input shaft end. Tighten the 1/2" - 13 locknut against the handle and torque to 22-25 ft-lbs. Do not over-torque.
The 1/2" - 13 locknut should be torqued to 22-25 ft-lbs. Do not over-torque.
On single-speed winches, torque the drum locknut to 9-10 ft-lbs. Be sure not to over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
On two-speed winches, torque the drum locknut to 24 ft-lbs. Be sure not to over-tighten, as this may crush the spacer between the frame and keep the drum from turning.
When attaching the winch to the mounting structure, use three 3/8" diameter grade-5 bolts and torque to 28-30 ft-lbs.
Tighten the clamp nuts to approximately 2 ft-lbs.
Winches require a maximum of 45 lbs of handle force to pull their rated load. If you cannot crank the winch with one hand, you are potentially overloading the winch.
Always maintain a minimum of three complete wraps of cable, rope, or strap on the drum. This is a critical safety requirement.
A loud clicking sound from the ratchet must be heard when lifting the load. If a loud clicking sound is not heard, do not use the winch and replace the ratchet components immediately. This indicates the ratchet pawl is not functioning properly and the load cannot be safely held.
No. Winches are not designed to secure boats to trailers while towing. Boat tie-downs should be used for this purpose.
No. Do not use the winch to move humans.
Always inspect the cable, strap, or rope and its attachment before each use to make sure they are not damaged. Never use them if they are worn, kinked, or frayed. If the cable or attachment breaks, the cable will whip violently, causing property damage, serious bodily injury, and/or death.
Before use, perform the following: 1) Inspect rope, strap, or cable and replace if damaged. 2) Check mounting hardware for proper tightness and tighten if necessary. 3) Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth.
Apply a drop or two of #30 weight engine oil to each bushing I.D. and to the ratchet pawl pivot points. Maintain a thin layer of chassis grease on the gear teeth.
Periodically check mounting hardware for proper torque and tighten if necessary. The manual does not specify an exact interval, but regular inspection is required.
Always replace bent, broken, or worn parts before using this product.
Cequent trailer winches are available in 900 lbs to 3700 lbs capacities. Check the Winch Information Chart for your model's specifications, or contact Cequent at 1-800-632-3290 to confirm fitment with your trailer's mounting surface and capacity requirements.
You must provide three 3/8" diameter grade-5 bolts (length varies by application) and torque them to 28-30 ft-lbs. Mounting hardware is not supplied. The mounting stand must support at least 5 times the winch's rated capacity.
Torque the three 3/8" diameter grade-5 mounting bolts to 28-30 ft-lbs.
Never exceed the maximum rated capacity stamped on the product. Refer to the Winch Information Chart or contact Cequent at 1-800-632-3290 if uncertain. Always maintain at least a 3x safety factor for all components used.
Before each use, inspect the line and attachment for damage, check mounting hardware tightness, apply #30 weight engine oil to bushings and ratchet pawl pivot points, and maintain a thin layer of chassis grease on gear teeth. Periodically retorque mounting hardware.
A loud clicking sound from the ratchet must be heard when lifting the load. If you do not hear this sound, do not use the winch. The ratchet pawl is not functioning properly and cannot safely hold the load. Replace the ratchet components immediately before using the winch again.
If you cannot crank the winch with one hand, you are potentially overloading the winch. Excessive force in turning the winch handle may indicate overload. Winches require a maximum of 45 lbs of handle force to pull their rated load. Reduce the load or verify that you are not exceeding the winch's maximum rated capacity.
You may have over-tightened the drum locknut. Over-tightening can crush the spacer between the frame and prevent the drum from turning. For single-speed winches, torque the drum locknut to 9-10 ft-lbs. For two-speed winches, torque to 24 ft-lbs. Loosen the locknut and retorque to the correct specification.
No. Never use a cable, strap, or rope if it is worn, kinked, or frayed. If the cable or attachment breaks, the cable will whip violently, causing property damage, serious bodily injury, and/or death. Always inspect the cable and its attachment before each use and replace it if damaged.
| Part Number | Capacity (lbs.) | Handle Length (in.) | Max Mechanical Advance* | Rope (ft. x in.) | Strap (ft. x in.) | Recommended Strap Bolt Sizes (in.) | Strap Included | Finish |
|---|---|---|---|---|---|---|---|---|
| 142001 | 900 | 7.00 | 39:1 | 36 x 1/4 | 15 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142002 | 900 | 7.00 | 39:1 | 36 x 1/4 | 15 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142003 | 900 | 7.00 | 39:1 | 36 x 1/4 | 15 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142006 | 900 | 7.00 | 39:1 | 36 x 1/4 | 15 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142007 | 900 | 7.00 | 39:1 | 36 x 1/4 | 15 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142026 | 1,100 | 7.00 | 43:1 | 30 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Glossy Black |
| 142101 | 1,100 | 8.00 | 43:1 | 30 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142102 | 1,100 | 8.00 | 43:1 | 30 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142103 | 1,300 | 8.00 | 49:1 | 30 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142104 | 1,300 | 8.00 | 49:1 | 30 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142200 | 1,500 | 8.00 | 49:1 | 20 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142201 | 1,500 | 8.00 | 49:1 | 20 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142203 | 1,500 | 8.00 | 49:1 | 20 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | Yes | Clear Zinc |
| 142204 | 1,500 | 8.00 | 49:1 | 20 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Clear Zinc |
| 142208 | 1,500 | 8.00 | 49:1 | 20 x 5/16 | 20 x 2 | 1/4 x 2-1/2 Grade 5 | No | Glossy Black |
| 142226 | 1,800 | 8.00 | 62:1 | 20 x 7/16 | 20 x 2 | 3/8 x 2-3/4 Grade 5 | No | Clear Zinc |
| 142300 | 1,800 | 8.00 | 62:1 | 20 x 7/16 | 20 x 2 | 3/8 x 2-3/4 Grade 5 | No | Clear Zinc |
| 142303 | 1,800 | 8.00 | 62:1 | 20 x 7/16 | 20 x 2 | 3/8 x 2-3/4 Grade 5 | No | Clear Zinc |
| 142306 | 1,800 | 8.00 | 62:1 | 20 x 7/16 | 20 x 2 | 3/8 x 2-3/4 Grade 5 | No | Clear Zinc |
| 142326 | 1,800 | 8.00 | 62:1 | 20 x 7/16 | 20 x 2 | 3/8 x 2-3/4 Grade 5 | No | Clear Zinc |
